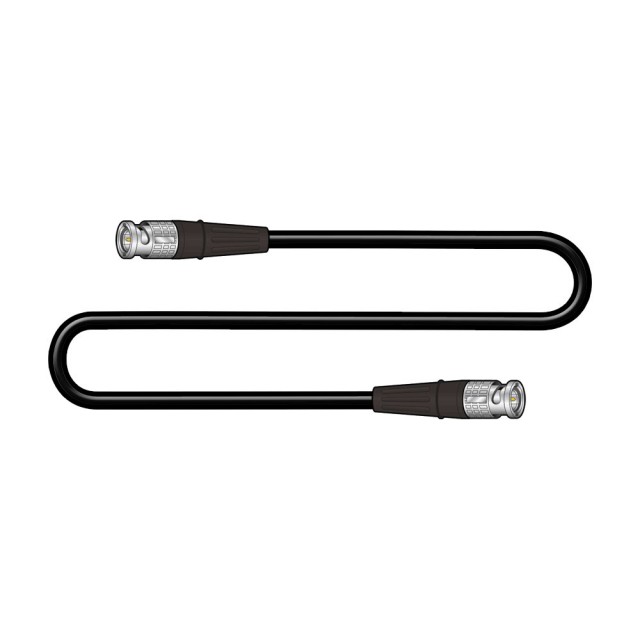

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 20m

  • 4K / UHD
SKU: CV-45W-M/M-BLK-20

Canare L-4.5CHWS flexible and durable 75 ohm 7,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

More information

88 € with VAT 72.73 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CV-45W-M/M-BLK-20
Add to Compare Price history

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 10m

Backordered 1 pcs49 €without VAT 40.5 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 80m

In stock 1 pcs322 €without VAT 266.12 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 70m

283 €without VAT 233.88 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 60m

In stock > 5 pcs244 €without VAT 201.65 €

Canare L-4.5CHWS Flexible 3G, 6G-SDI Cable, BNC-BNC 50m

In stock 2 pcs205 €without VAT 169.42 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 40m

In stock > 5 pcs166 €without VAT 137.19 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 30m

In stock > 5 pcs127 €without VAT 104.96 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 15m

To be sent 2 pcs69 €without VAT 57.02 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 25m

In stock > 5 pcs108 €without VAT 89.26 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 35m

In stock > 5 pcs147 €without VAT 121.49 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 45m

In stock > 5 pcs185 €without VAT 152.89 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 55m

In stock 3 pcs224 €without VAT 185.12 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 65m

In stock 3 pcs263 €without VAT 217.36 €

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 75m

302 €without VAT 249.59 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 2m

18 €without VAT 14.88 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 3m

In stock 2 pcs22 €without VAT 18.18 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 5m

30 €without VAT 24.79 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 7,5m

In stock > 5 pcs39 €without VAT 32.23 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 4m

In stock > 5 pcs26 €without VAT 21.49 €

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 1m

14 €without VAT 11.57 €

Top accessories for Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 20m

Canare BCJ-JK 12G-SDI BNC Extention Adapter

BNC Extention Adapter
4 €
In stock > 5 pcs

Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle

Panel Mount Bulkhead BNC Receptacle
4.8 €
In stock > 5 pcs

Adhesive tape Gaffa black 50m

Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
12 €
In stock > 5 pcs

AVMATRIX SD1121-12G 1×2 12G-SDI SIGNAL REPEATER

Input: 1×12G-SDI, Output: 2×12G-SDI Automatically detects SD, HD, 3G, 6G and 12G-SDI
241 €
In stock 2 pcs

AVMATRIX FE1121-12G 12G-SDI Fiber Optic Extender

Optical SDI signal converter. Price per pair, including 12G SFP/LC adapter. Transmission
809 €
In stock 5 pcs

Stage Tape Neon Pink 19mm, 25m

Gaffa tape fluorescent, width 19mm length 25mm
7.3 €
In stock > 5 pcs

Blackmagic Design Mini Converter SDI Distribution

Ideal for connecting the same signal to several devices at once. SDI distribution
179 €
In stock > 5 pcs

Stage Tape Neon Green 19mm, 25m

Fluorescent Stage Tape "Gaffa" Green
7.3 €
In stock > 5 pcs

HT-2206 extraction tool for BNC connectors

Suitable for assembly and disassembly of BNC connectors in hard to reach places,
16 €
In stock 2 pcs

Stage Tape Neon Yellow 19mm, 25m

Fluorescent Stage Tape "Gaffa" Yellow
7.3 €
In stock > 5 pcs

Show all accessories

Product description

Product description

Canare L-4.5CHWS flexible and durable 75 ohm 7,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

Use of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:

  • compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
  • HDTV
  • 4K/HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm:7.2
  • Cable weight in kg/100m: 6.6
  • Central conductor - number and diameter of stranded wire in mm: 7/0,34
  • Total diameter of central conductor in mm: 1.02
  • Foam dielectric - diameter in mm: 4,57
  • Resistance of central conductor in Ω/100m:3,3
  • Resistance of outer conductor in Ω/100m:0,8
  • Temperature range: -30°C ~ +60°C
  • Static capacitance in pF/m:53
  • Attenuation in dB/100m:22.8



Maximum transmission distance depending on video format:

Maximum transmission distance of Canare L-4.5CHWS depending on video format
Data transfer rate: 143 Mbps 177 Mbps 270 Mbps 360 Mbps 540 Mbps 1.5 Gb/s 3 Gb/s
Specification: SMPTE 259M SMPTE 259M SMPTE 259M SMPTE 259M SMPTE ST 344M SMPTE ST 292M SMPTE ST 424M
Application: nTSC composite pAL composite components 4:2:2 4:2:2 16x9 components SDI HD-SDI 1080i 3G-SDI 1080p
Maximum cable length: 447m 405m 322m 280m 225m 87m 90m



Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Cable type12G-SDI
Length20m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter7.2mm
ColourBlack
Connector shapeDirect
Impedance75 Ohm
