Canare L-1.5C2VS GRN BNC 0,3m

L-1.5C2VS GRN BNC (M) / BNC (M) lenght 0,3m - Green boots

More information

13.55 € with VAT 11.2 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 3 pcs
Praha 3 pcs, Bratislava > 5 pcs
SKU:
CV-15-M/M-GRN-03
Add to Compare Price history
Product description

Product description

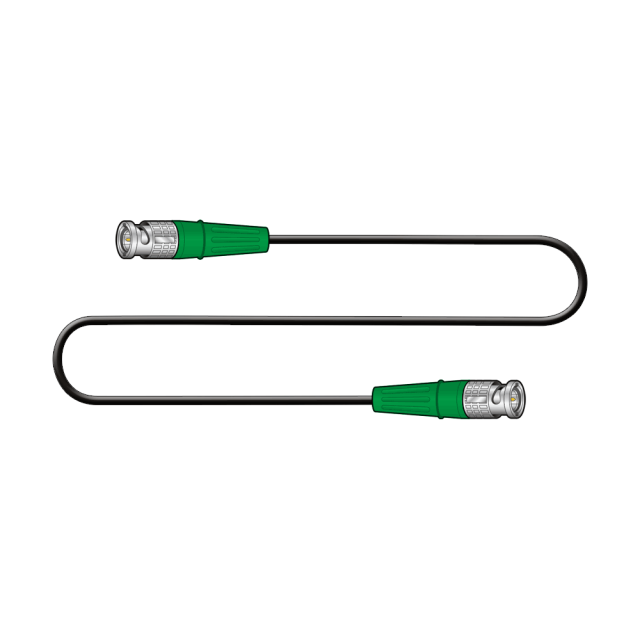

L-1.5C2VS GRN BNC (M) / BNC (M) lenght 0,3m - Green boots

Canare L-1.5C2VS

is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor is the ideal choice for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors type BCP-C1 at both ends.


Features

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Parameters

  • Standard manufactured lengths: 200m
  • Sheath diameter (overall diameter) in mm: 2.9
  • Cable weight in kg/100m: 1.3
  • Central conductor - number and diameter of stranded wire in mm: 7/0,09
  • Total diameter of central conductor in mm: 0.27
  • Foam dielectric - diameter in mm: 1,6
  • Resistance of central conductor in Ω/100m:41,9
  • Resistance of outer conductor in Ω/100m:3,3
  • Static capacitance in pF/m: 69
  • Attenuation in dB/100m: 8,7
  • Impedance in Ω: 75
Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length0.3m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter2.9mm
ColourGreen
Connector shapeDirect
Impedance75 Ohm
