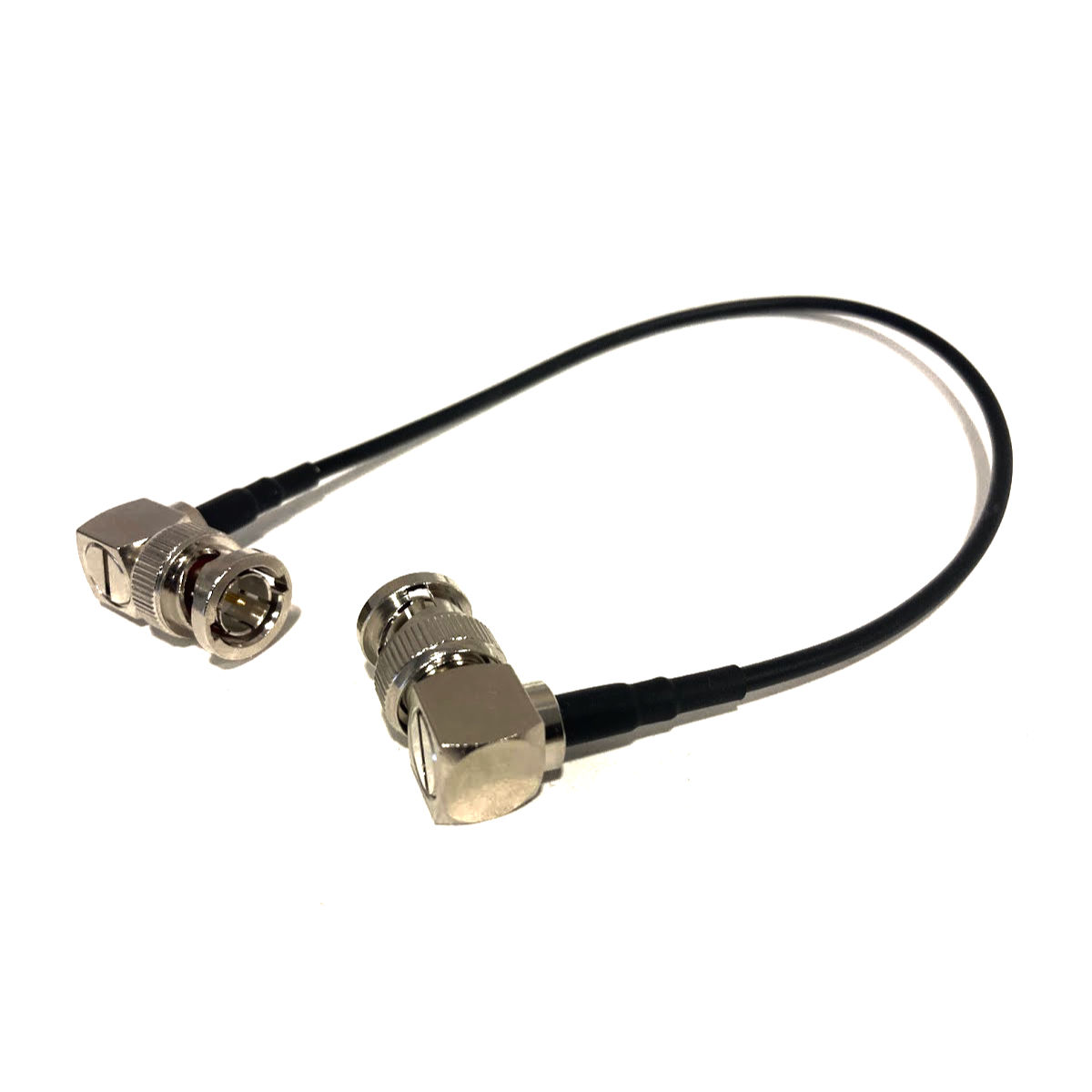

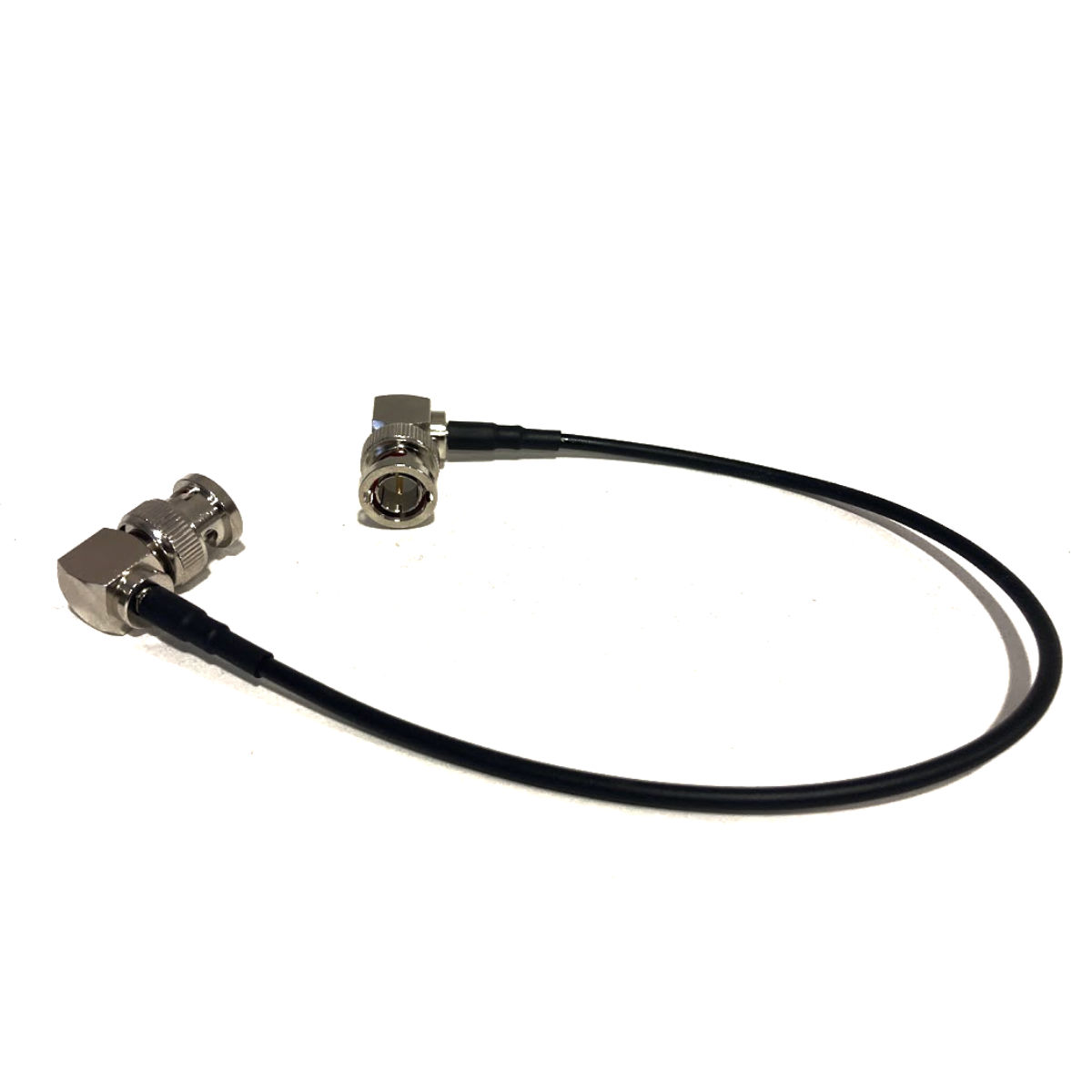

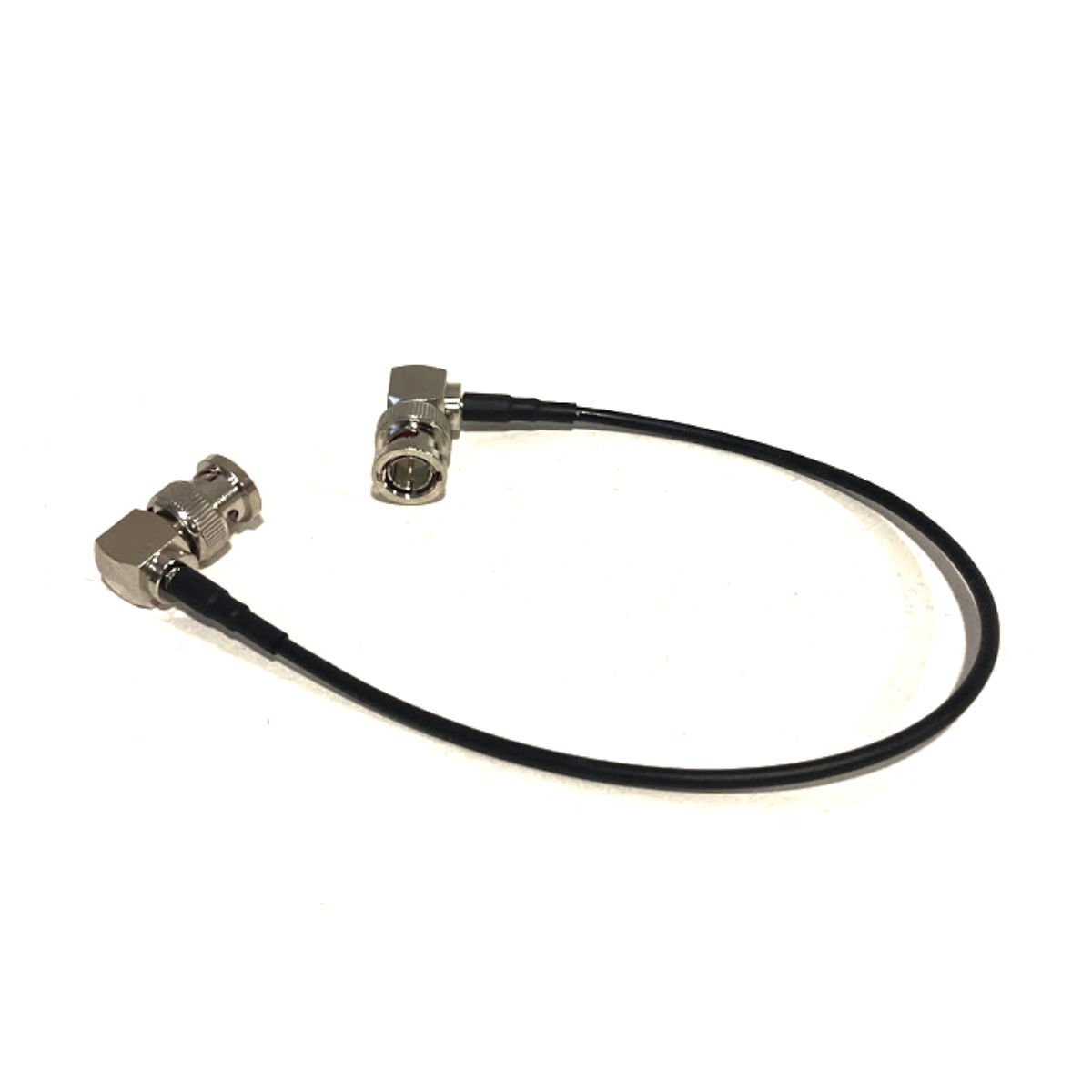

Canare L-1.5C2VS flexible SDI cable 2,9mm BNC-BNC 0,3m, BLK, rectangular

Canare L-1.5C2VS BNC (Male) / BNC (Male)), finished thin flexible SDI coaxial cable, BNC-BNC. Cable diameter only 2.9 mm. The total cable length is given including connectors.

More information

17.97 € with VAT 14.85 € without VAT
-+
Availability
E-shop in stock > 5 pcs
Praha 4 pcs, Bratislava 2 pcs
SKU:
CV01464652520000030
Add to Compare
Product description

Product description

Canare L-1.5C2VS BNC (Male) / BNC (Male)), finished thin flexible SDI coaxial cable, BNC-BNC. Cable diameter only 2.9 mm. The total cable length is given including connectors.

Canare L-1.5C2VS

is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a cable center conductor is the ideal choice for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on rectangular BNC (M) connectors on both ends.


Features

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Parameters

  • Standard manufactured lengths: 200m
  • Sheath diameter (overall diameter) in mm: 2.9
  • Cable weight in kg/100m: 1.3
  • Central conductor - number and diameter of strands in mm: 7/0.09
  • Total diameter of central conductor in mm: 0.27
  • Foam dielectric - diameter in mm: 1,6
  • Resistance of central conductor in Ω/100m:41,9
  • Resistance of outer conductor in Ω/100m:3,3
  • Static capacitance in pF/m: 69
  • Attenuation in dB/100m: 8,7
  • Impedance in Ω: 75
Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length0.3m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter2.9mm
ColourBlack
Connector shapeRectangular
Impedance75 Ohm
