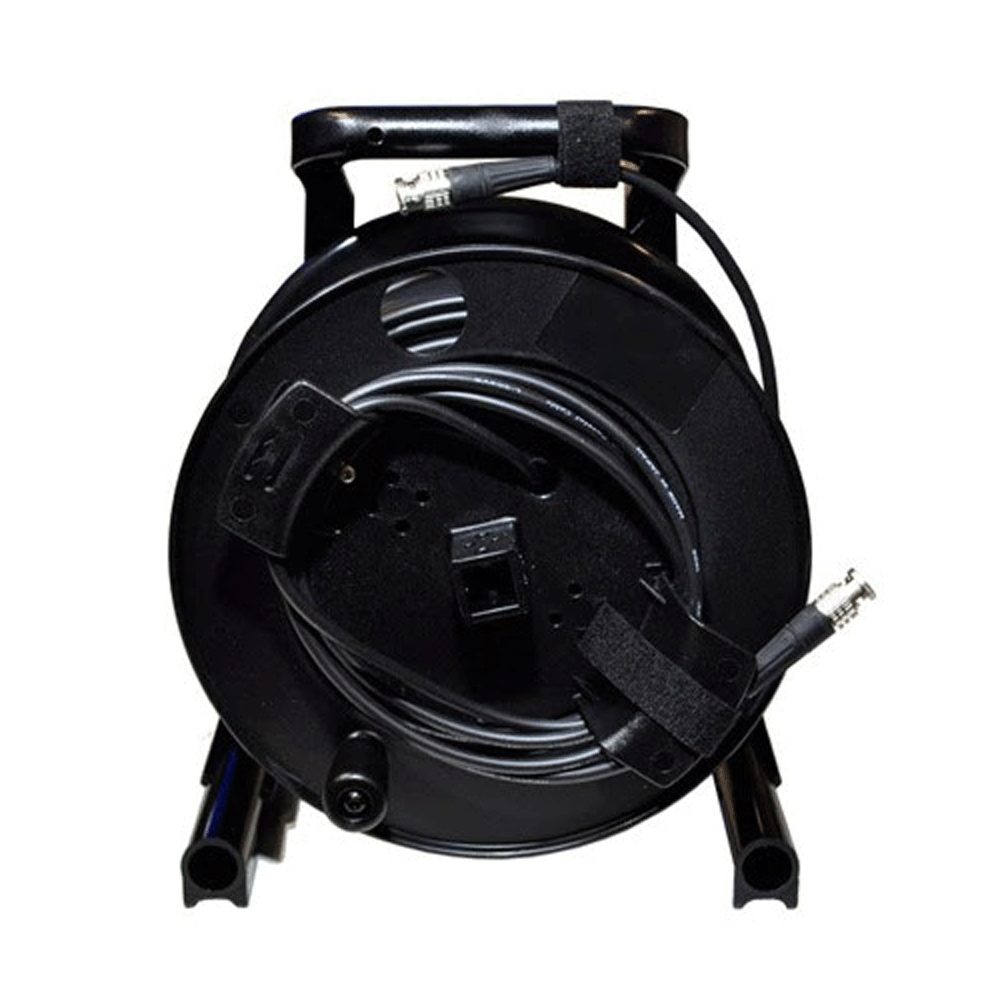

Canare HD-SDI cable on reel with cable holder 50m

TheCanare L-5C2VS BNC (M) / BNC (M) is a flexible and durable 75 ohm SDI coaxial cable, 7.4 mm outer diameter with BNC (M) terminations wound on a Schill GT 310.RMdrum

More information

148.94 € with VAT 124.12 € without VAT
-+
Availability
Praha 4 pcs, Bratislava 2 pcs
Manufacturer
Free transport when purchasing this product
SKU:
CV29363653530205000
Add to Compare
Product description

Product description

TheCanare L-5C2VS BNC (M) / BNC (M) is a flexible and durable 75 ohm SDI coaxial cable, 7.4 mm outer diameter with BNC (M) terminations wound on a Schill GT 310.RMdrum

Its great flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and braided shielding with high density and PE insulation.

Length in (m) 333m 263m 225m 181m 68m
Transmission speed 177 Mbps 270 Mbps 360 Mbps 540 Mbps 1.5 Gb/s
Specifications ITU-R BT.601 SMPTE 259M SMPTE 259M SMPTE 344M SMPTE ST-292
Use PAL composite 525/625 (4:3) 525/625 (16:9) 525/625 (4:3) p60 SDI HD-SDI 2K 1080i

Canare L-5C2VS Cable Features:

  • compliant with SMPTE 424M & 292M specification
  • HDTV
  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Canare L-5C2VS cable parameters:

  • Sheath diameter (overall diameter) in mm: 7.4
  • Cable weight in kg/100m: 6.8
  • Central conductor - number and diameter of strands in mm: 7/0,26
  • Total diameter of central conductor in mm: 0.78
  • Foam dielectric - diameter in mm: 4,8
  • Resistance of central conductor in Ω/100m: 5,0
  • Resistance of outer conductor in Ω/100m: 1,2
  • Temperature range: -30°C ~ +60°C
  • Static capacitance in pF/m: 67
  • Attenuation in dB/100m at 750MHz: 25.7
Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length50m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter7,4mm
ColourBlack
Connector shapeDirect
Impedance75 Ohm

Other parameters

OtherOn the drum
