Canare BCP-A4F

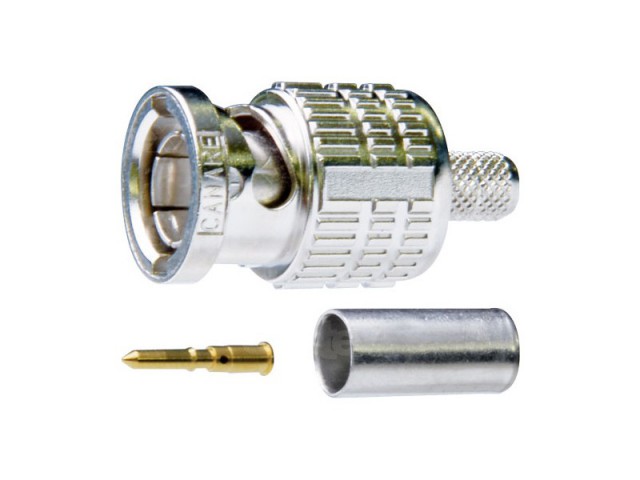

Canare BCP-A4F is a 75 ohm BNC (M) crimp connector (straight type).

The Canare BCP-A4F is a 75 ohm BNC (M) crimp connector (straight type) with an extended body for better handling.

Suitable for Canare installation cables : L-4CFB, L-4CHD, V*-4CFB

Suitable for other manufacturers' cables: 1505A, 1505ANH, 8212, 8241F, 9167, 9259, 9659, VPM2000, HD PRO 0.8/3.7 AF

Usage:

• compliant with SMPTE 424M & 292M specification
• HDTV
• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Features:

• True 75 ohm design with crimp pin and sleeve
• High power 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
• Extended body for better handling
• Position mark on the body allows the connector to be easily inspected.
• Excellent cable grip
• Gold plated central pin
• Connector body is "die-cast" - achieving lower cost at high performance
• Easy assembly using the Canare crimp tool
