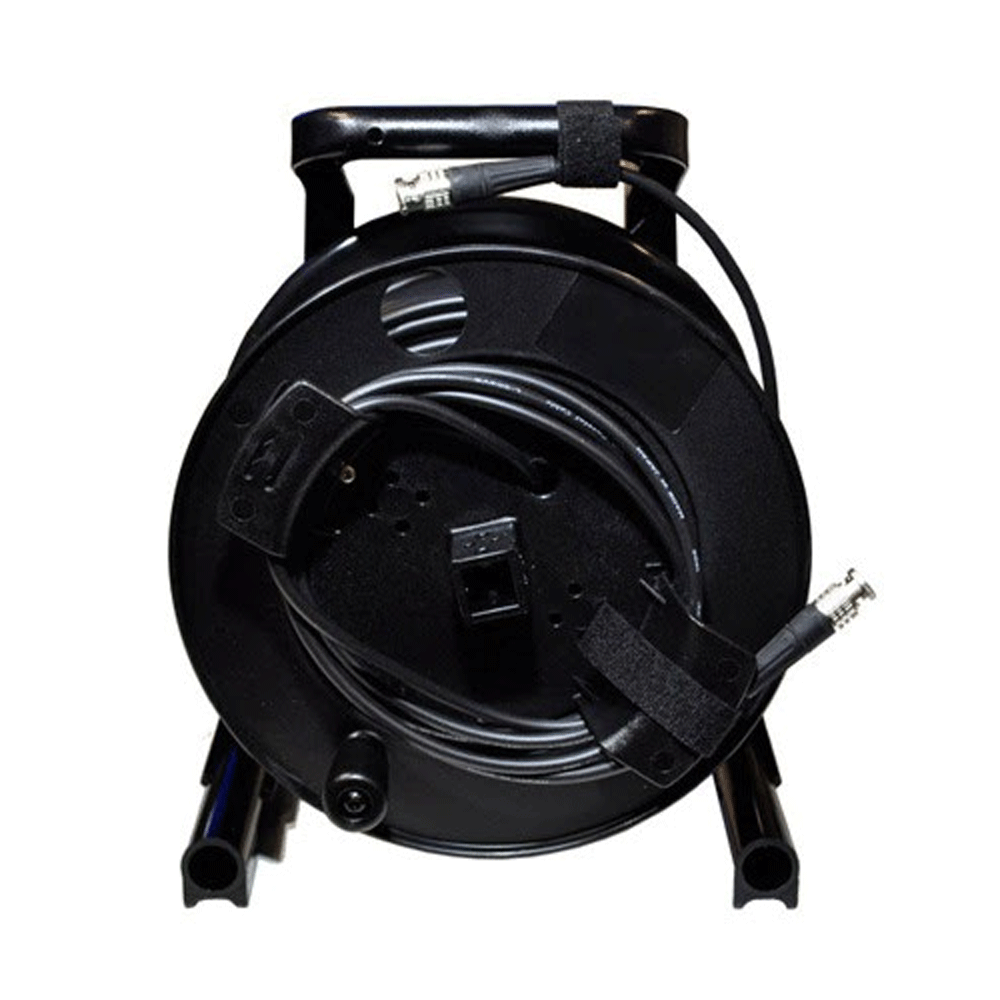

Infinitek 3G/HD-SDI on reel with cable holder 100 m

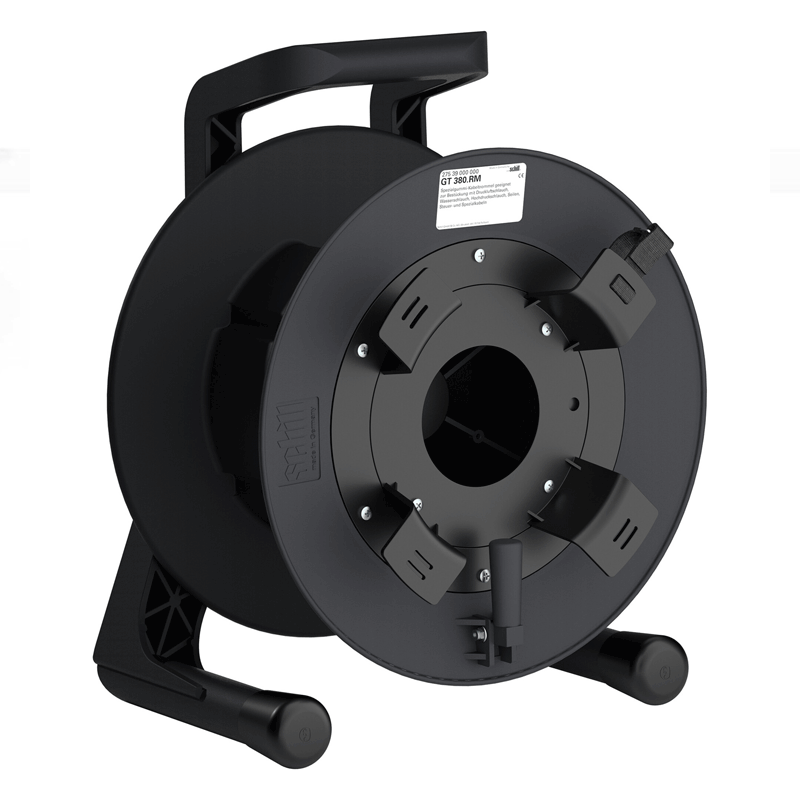

Canare L-5CFW BNC (M-male) / BNC (M-male) is a flexible and durable 3G/HD/SD-SDI 75 ohm coaxial cable with 7.7 mm outer diameter with BNC (M) terminations wound on a SCHILL reel. The cable is wound on a Schill GT 380.RM reel. The total cable length is given including connectors.

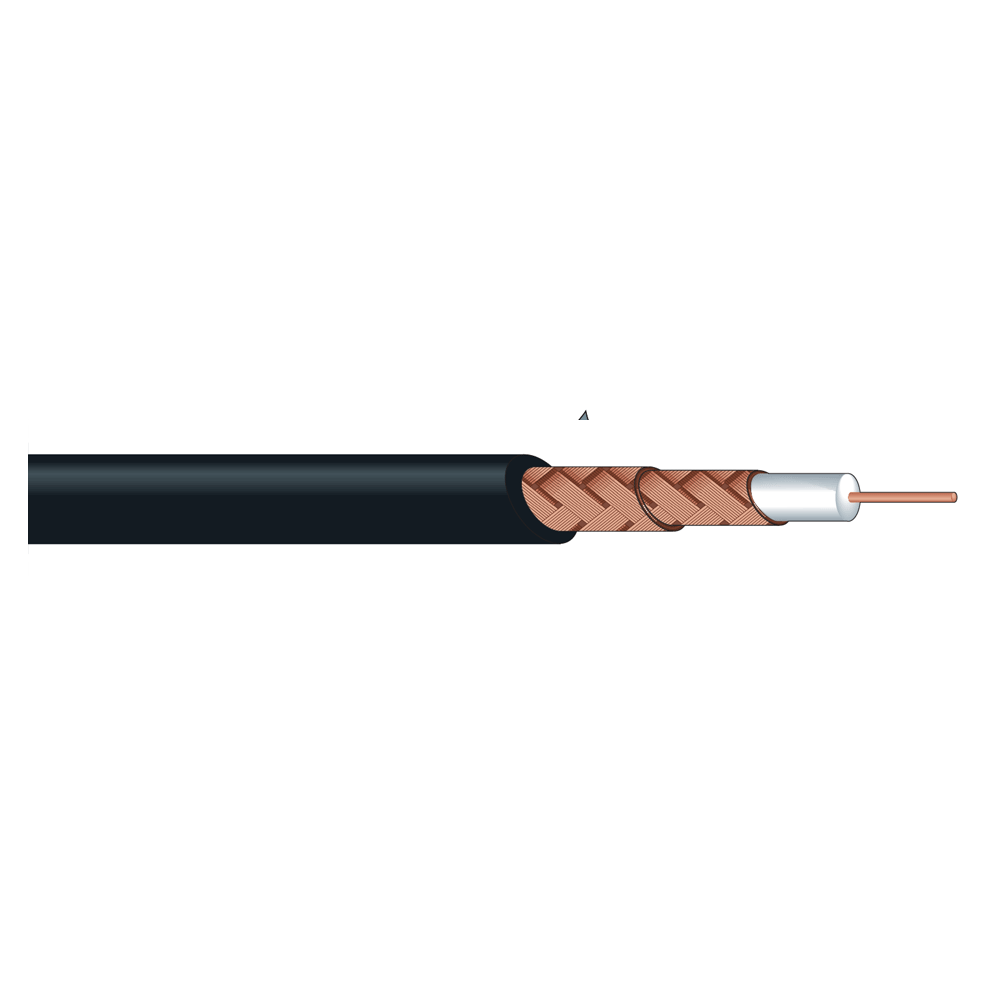

Its high flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable features a braided medium conductor and a high-density "High-density" double shield with thick foam insulation.

Maximum transmission distance depending on video format

L-5CFW Cable Specifications:

• Standard manufactured lengths: 100/200 m
• Sheath diameter (overall diameter) in mm: 7.7
• Cable weight in kg/100 m: 8.1
• Medium conductor - number and diameter of cores in mm: 1/1.05
• Total diameter of the middle conductor in mm: 1.05
• Foam dielectric - diameter in mm: 5,00
• Resistance of the middle conductor in Ω/100 m: 2.3
• Resistance of outer conductor in Ω/100m: 0.5
• Temperature range: -30 °C ~ +60 °C
• Static capacitance in pF/m: 55
• Attenuation in dB/100m: 19.4
