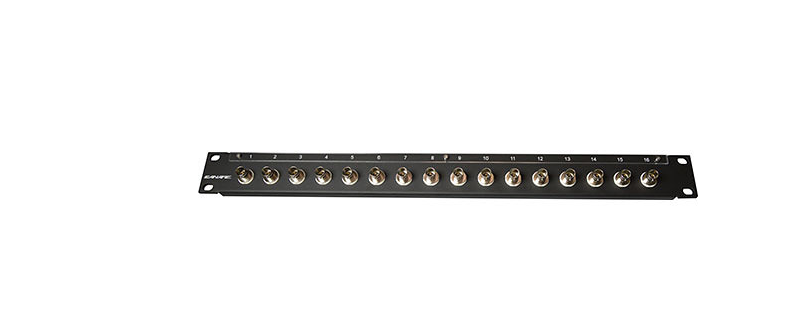

Canare 161U-BJRK PANEL W/CONNECTOR

The Canare 161U-BJRK 12G A/V BNC Stand-Off Panel is a professional 1 RU rackmount patch panel designed for high-performance 12G-SDI video installations. Featuring 16 BNC jack-to-jack stand-off receptacles with 75-ohm impedance and minimal return loss, this rugged cold-rolled steel panel provides reliable, isolated signal pass-through for broadcast, television, AV, telecom, and multimedia applications.

The Canare 161U-BJRK 12G A/V BNC Stand-Off Panel is a high-quality rackmount patch panel engineered for professional broadcast, video, and AV system installations. Designed for 12G-SDI workflows, this complete 1 RU solution combines the durable 161U bulkhead panel with 16 BCJ-JRK BNC-to-BNC stand-off receptacles, providing dependable multichannel BNC pass-through connectivity for equipment racks and patch bays.

Constructed from 16-gauge cold-rolled steel, the panel delivers exceptional strength and durability while its matte black powder coat finish resists scratches and everyday wear. Reinforced folds along the top and bottom improve structural rigidity, while M2.5 tapped mounting holes, clear designation strips, and channel ID numbering simplify installation, labeling, and maintenance.

Each included BCJ-JRK BNC stand-off receptacle features female BNC connectors on both sides, enabling convenient jack-to-jack patching without soldering. Designed with 75-ohm impedance and minimal return loss, the connectors comply with SMPTE ST 2082-1:2015, making them ideal for demanding 12G-SDI UHD video applications. The panel also supports standard ITT Cannon connector footprints and accommodates unified series connectors including BNC, RCA, F, and XLR.

Ideal for television studios, master control rooms, multimedia editing suites, satellite facilities, telecom infrastructure, and broadband installations, the Canare 161U-BJRK delivers reliable performance, professional organization, and long-term durability in mission-critical environments.

Key Features

• Complete 1 RU rackmount 12G-SDI patch panel
• Includes 16 BNC-to-BNC stand-off receptacles
• Designed for professional 12G-SDI video installations
• 75-ohm impedance for broadcast-quality signal transmission
• Minimal return loss for excellent signal integrity
• Complies with SMPTE ST 2082-1:2015
• Durable 16-gauge cold-rolled steel construction
• Scratch-resistant matte black powder coat finish
• Reinforced top and bottom folds for added rigidity
• Flush-mount panel with standard ITT Cannon footprint
• M2.5 tapped mounting holes for connector installation
• Clear designation strips with channel numbering
• Supports unified series connectors including BNC, RCA, F, and XLR
• No soldering required for stand-off receptacle installation
• Suitable for broadcast, television, AV, telecom, satellite, and broadband applications
