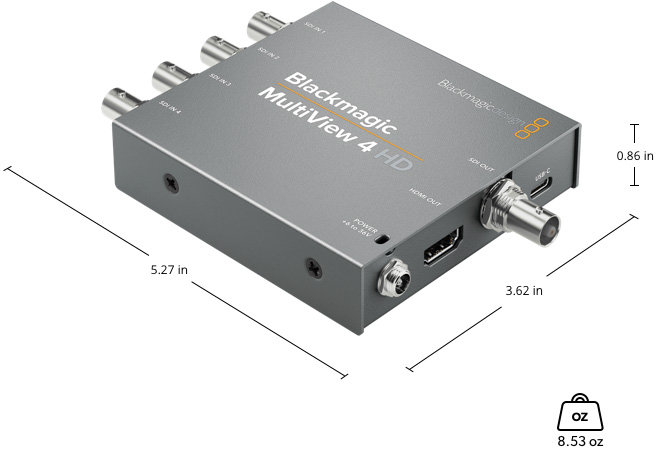

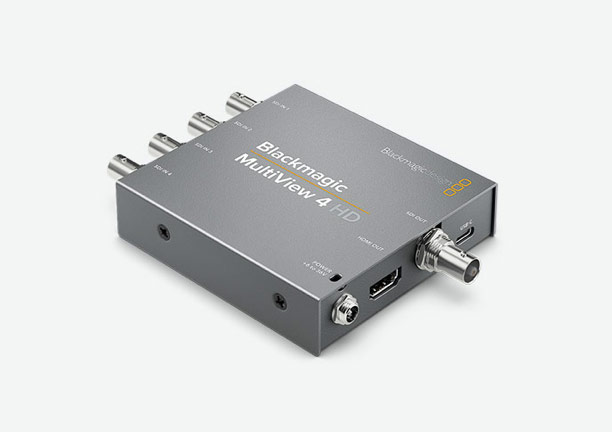

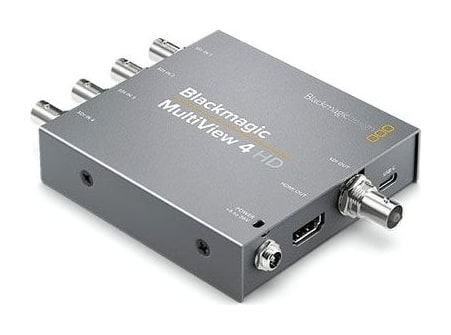

Blackmagic MultiView 4 HD is a new multi viewer that lets customers monitor 4 completely independent SDI video sources on a single display. Customers can monitor any combination of SD and HD formats and frame rates at the same time. Blackmagic MultiView 4 HD features both SDI and HDMI outputs so it can be used with both professional SDI broadcast displays…
Blackmagic MultiView 4 HD is a new multi viewer that lets customers monitor 4 completely independent SDI video sources on a single display. Customers can monitor any combination of SD and HD formats and frame rates at the same time. Blackmagic MultiView 4 HD features both SDI and HDMI outputs so it can be used with both professional SDI broadcast displays or big screen consumer HD televisions.
Four SDI sources at once on a single HD display
MultiView 4 HD combines four independent 3G‑SDI inputs into a clear 2×2 or SOLO output for a professional SDI monitor or a standard HDMI display.
4× 3G‑SDI1080p60HDMI + SDI

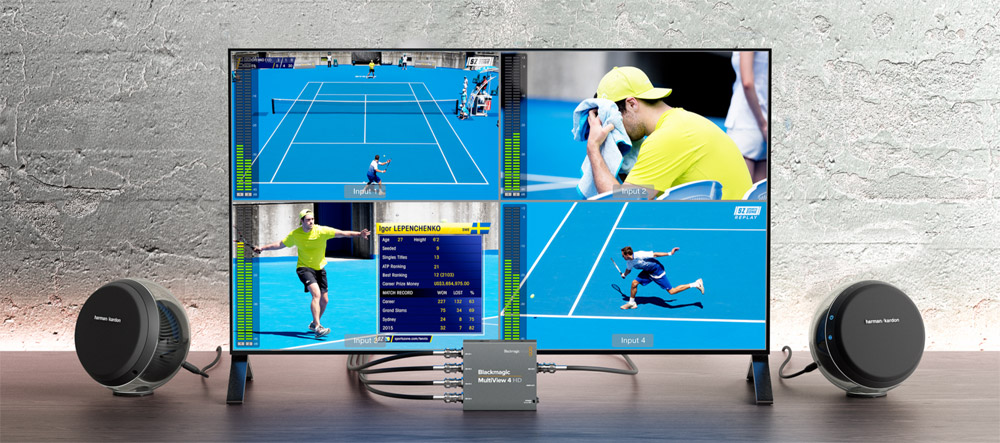

Mixed SD and HD formats without genlock
Independent frame synchronisation on every input lets different standards and frame rates up to 1080p60 be displayed together. Custom labels and audio meters make sources easy to identify.

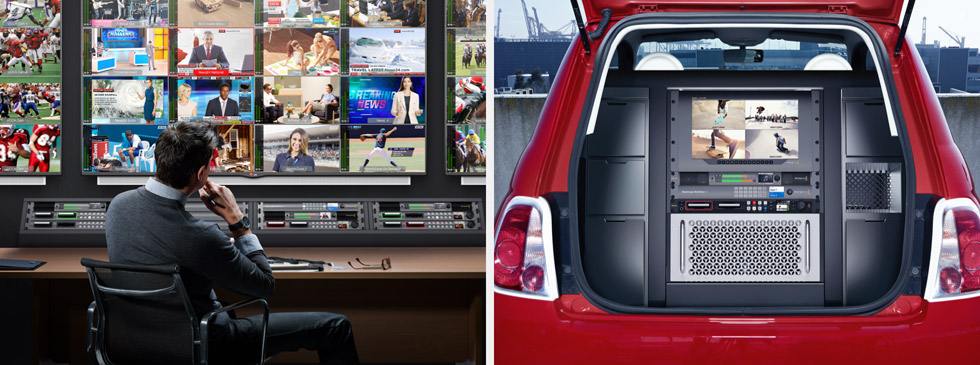

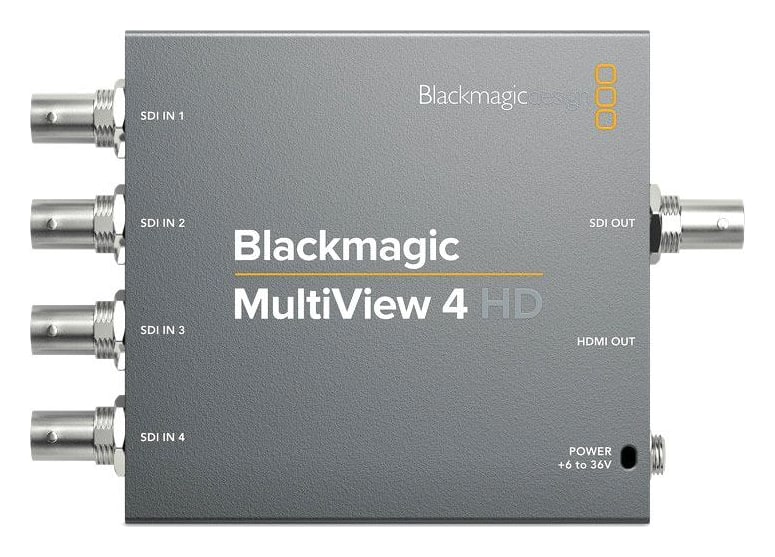

A compact unit for control rooms or location work
SDI and HDMI outputs support a studio monitor, projector or large-screen television. Low power consumption and the universal 12V supply simplify portable use.

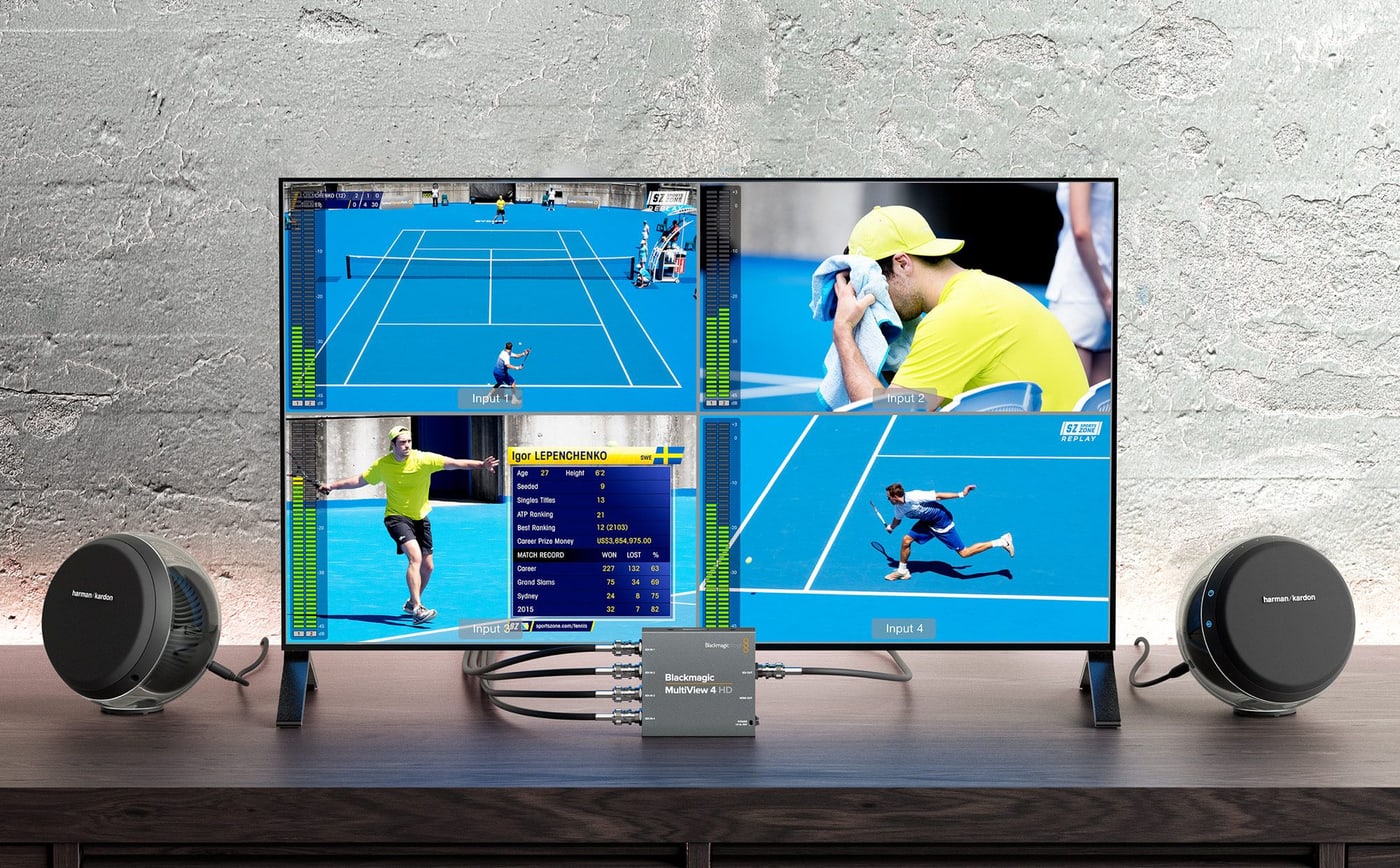

Four views without four monitors, extra cabling and power supplies
Blackmagic MultiView 4 HD includes four completely independent multi rate 3G-SDI inputs that are compatible with existing SD and HD equipment, including Level A and B devices. All inputs feature automatic frame re-synchronization, so customers can mix and match any combination of video standards and frame rates, including referenced or non-referenced NTSC, PAL, 720p, 1080i and 1080p60 frames per second, all on the same display at the same time.
With Blackmagic MultiView 4 HD, customers no longer have to connect multiple monitors, dozens of cables or run extra power to view all of their sources. They simply plug in cameras, decks, switchers, routers and feeds into the SDI connections on Blackmagic MultiView 4 HD and can see everything on a single HD display. That means there’s less equipment to carry around and set up.

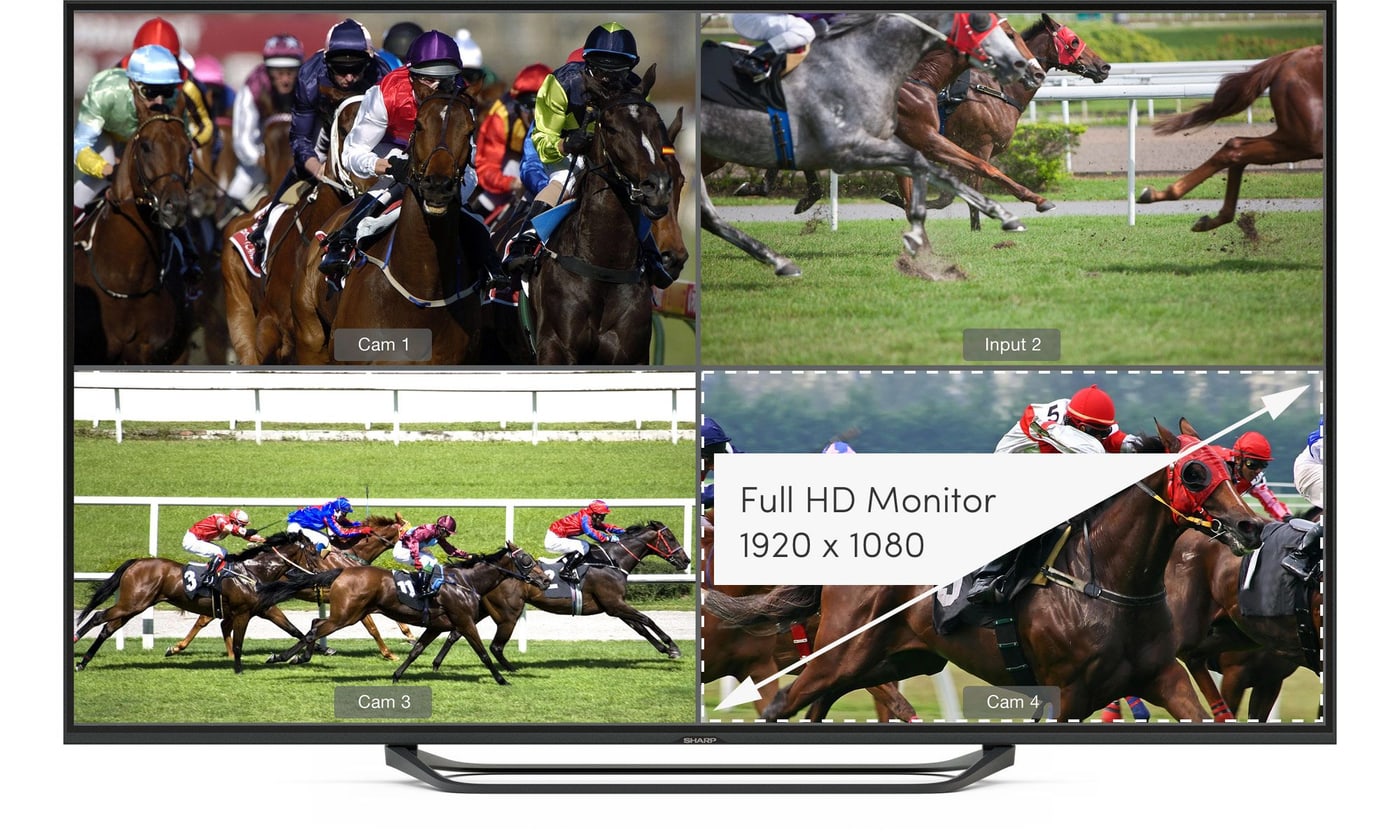

Blackmagic MultiView 4 HD features both HDMI and 3G-SDI outputs so customers can connect to either a professional SDI broadcast monitor or a low cost big screen HDMI television. When combined with an HDMI television, Blackmagic MultiView 4 HD gives customers the world’s most affordable professional multiview solution, making it perfect for use in control rooms, outside broadcast trucks, or on location shooting at live events.
Designed to be plug and play, connected sources will instantly be displayed in a standard 2x2 grid layout. Customers can use the mini switches to turn on audio meters, choose which audio to output, as well as create custom labels, and more.
Blackmagic MultiView 4 HD Key Features
Display up to 4 SDI sources on a single HD display via SDI or HDMI.
4 multi rate 3G-SDI inputs.
Compatible with all SD and HD equipment and formats up to 1080p60.
Automatic frame re-sync allows simultaneous display of mixed SD and HD formats.
Standard quad split 2x2 view or SOLO.
1920 x 1080 supported output resolution.
90V-240V DC power supply with international AC adapters for use worldwide.
PACKAGE CONTENT
1× Blackmagic Design MultiView 4 HD
1× universal 12V power supply with international socket adapters
SPECIFICATIONS
SDI inputs: 4× 10-bit SD‑SDI and HD‑SDI
SDI output: 1× HD‑SDI
HDMI output: 1× HDMI type A
SDI rates: 270 Mb/s, 1.5G and 3G
Layouts: 2×2 and SOLO
Formats: SD and HD including 1080p60 and 2K DCI up to 25p
Synchronisation: independent frame re-sync on every input
Tools: custom labels and VU audio meters
Configuration: USB 2.0
Power: 6–36 V DC; universal 12V supply included
Power consumption: 5.5 W
Warranty: 3 years
WE RECOMMEND
The Blackmagic MultiView 4 HD is the ideal solution for monitoring up to four SDI sources on a single display, which requires compatible cameras and converters to integrate various signal types. To create a complete production workflow, it is recommended to supplement the system with professional cameras featuring SDI output, converters for connecting HDMI sources, and post-production software for processing the final footage.
Cameras with Direct SDI Connection - These cameras feature an SDI output and can be connected directly to the MultiView 4 HD inputs.
