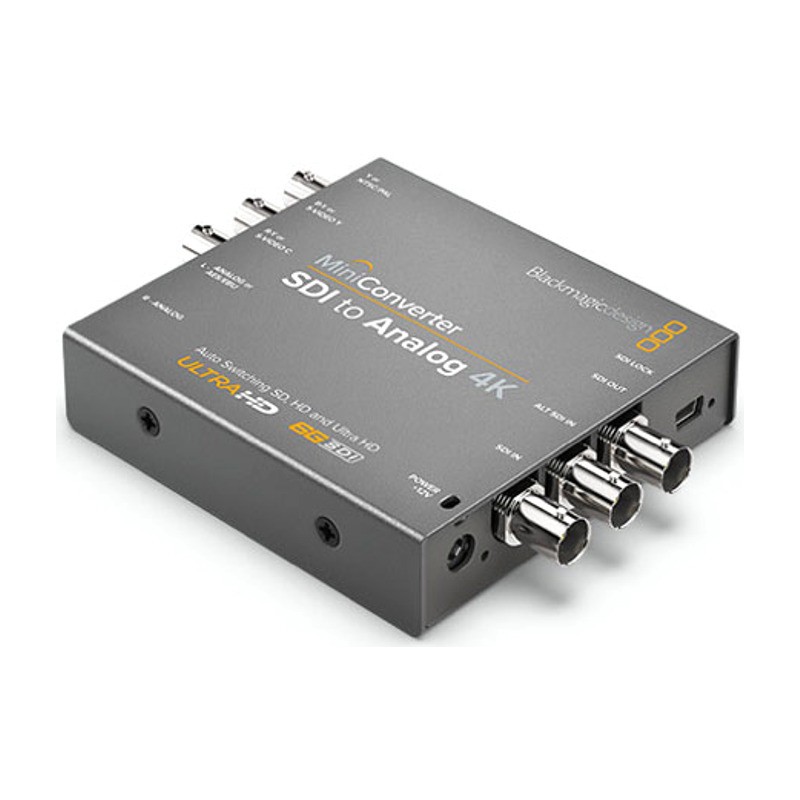

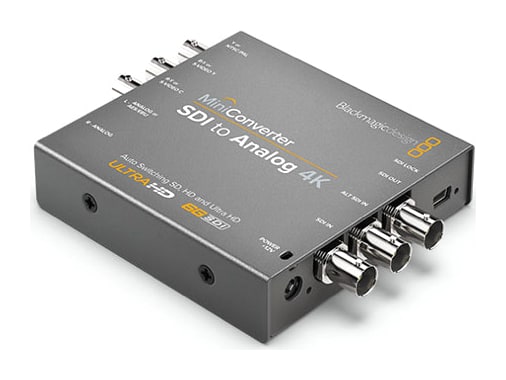

Blackmagic Design Mini Converter SDI to Analog 4K
SKU: CONVMASA4K
Blackmagic Mini Converter SDI to Analog 4K converts SD, HD, 3G and 6G-SDI to analog component SD/HD video, S-Video and composite PAL/NTSC. Built-in down conversion even connects an Ultra HD signal to analog HD or SD devices. The converter has a redundant SDI input and a loop output and de-embeds SDI audio to balanced analog outputs or AES/EBU.
409 € with VAT
338.02 € without VAT
Availability
Shipment day: 27. 10.
Shipment day: 27. 10.
To be sent 2 pcs
Bratislava 1 pcs, Budapest 1 pcs
Bratislava 1 pcs, Budapest 1 pcs
Top accessories for Blackmagic Design Mini Converter SDI to Analog 4K
Infinitek L-3C2VS 1m FLEX HD-SDI cable BNC-BNC YEL
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 1m
12 €
In stock 3 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Mini Converter SDI to Analog 4K converts SD, HD, 3G and 6G-SDI to analog component SD/HD video, S-Video and composite PAL/NTSC. Built-in down conversion even connects an Ultra HD signal to analog HD or SD devices. The converter has a redundant SDI input and a loop output and de-embeds SDI audio to balanced analog outputs or AES/EBU.
Ultra HD to analog
Converts SD, HD, 3G and 6G-SDI to component, S-Video and composite PAL/NTSC video. Down conversion lets you connect analog monitors, recorders or Betacam SP even to an Ultra HD signal.
6G-SDI inputAnalog outputUltra HDAES/EBUPower supply included
Down conversion from Ultra HD
The converter turns an Ultra HD signal into component HD or into SD for S-Video and composite video. The 6G-SDI input detects SD, HD, 3G and 6G-SDI automatically.
Analog monitors
View an Ultra HD signal even on a monitor with a component input.
Archive recorders
Record the program to Betacam SP or VHS.
De-embedded audio
De-embed SDI audio to analog outputs or AES/EBU.
Loop output
The SDI signal continues on to further equipment.
Component, S-Video and composite
Three BNC connectors provide component Y, B-Y, R-Y video in SD and HD, S-Video (Y/C) or composite PAL and NTSC. The analog output works in 525i59.94 NTSC, 625i50 PAL, 720p, 1080i and 1080p up to 30 frames per second.

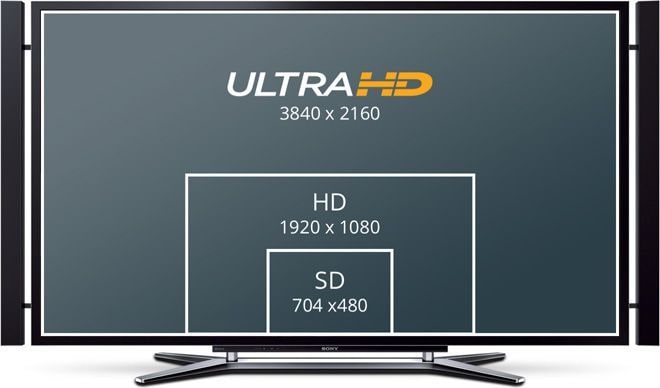

From SD to Ultra HD
The multi-rate 6G-SDI input accepts SD, HD, 2K, Ultra HD up to 2160p30 and 4K DCI up to 25p. Built-in down conversion turns high resolutions into a format the analog device can handle.

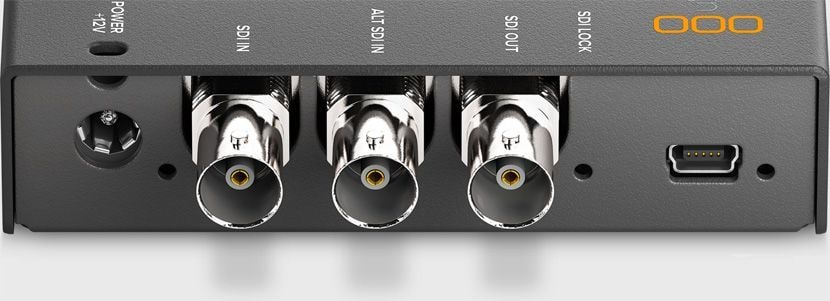

Redundant SDI input
In addition to the main SDI input, the converter has a redundant ALT SDI input. If the main signal is lost, for example when a cable is damaged, the converter automatically switches over to the redundant input. The SDI loop output passes the input signal on.

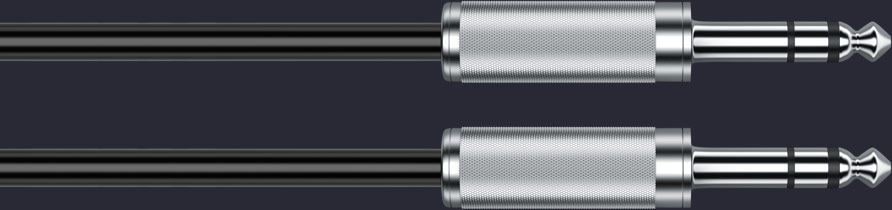

Audio to separate outputs
The converter de-embeds the audio embedded in the SDI signal to two channels of balanced analog audio on 1/4 inch jacks or to digital AES/EBU (left connector). Sampling at 48 kHz and 24 bit is preserved.

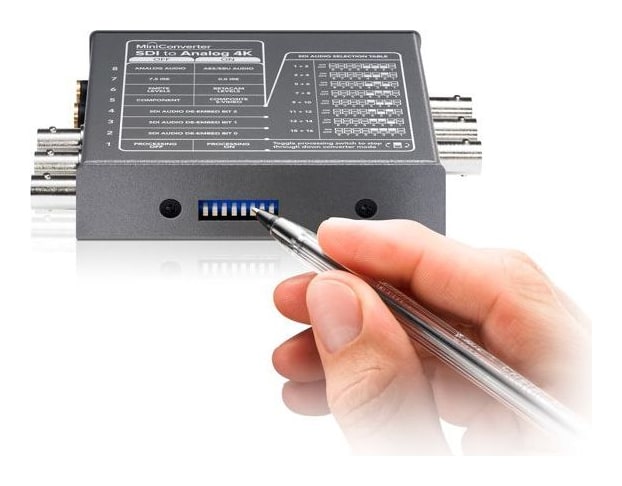

Setup with mini switches or over USB
Functions are selected with mini switches using the diagram printed on the converter: analog audio or AES/EBU, 7.5 IRE or 0 IRE level, SMPTE or Betacam levels, component or composite/S-Video output and the audio channel pair 1 and 2 to 15 and 16. Over USB and the utility for macOS and Windows, settings can be changed from a computer and new software installed.

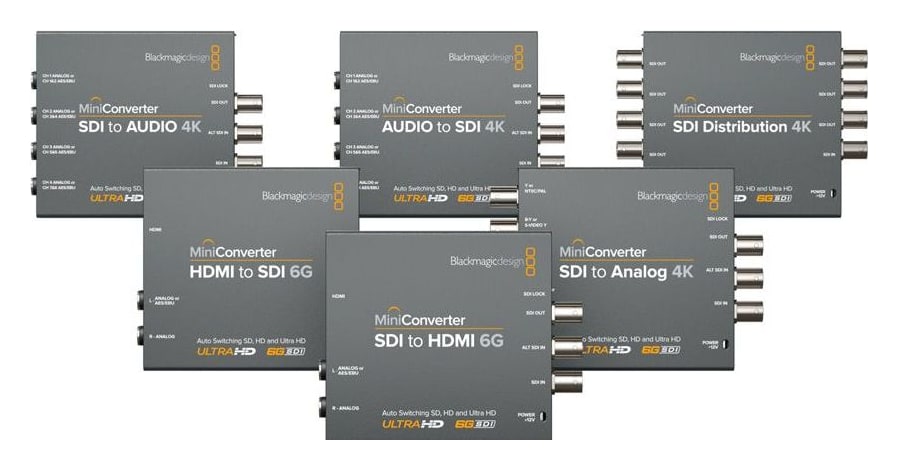

For archives and live work
Connect analog monitors, Betacam SP and VHS decks or other analog equipment even to Ultra HD production. The converter belongs to the 6G-SDI Mini Converter range; for SD and HD there is the more affordable Mini Converter SDI to Analog.
In the rack, in the truck and outdoors
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.

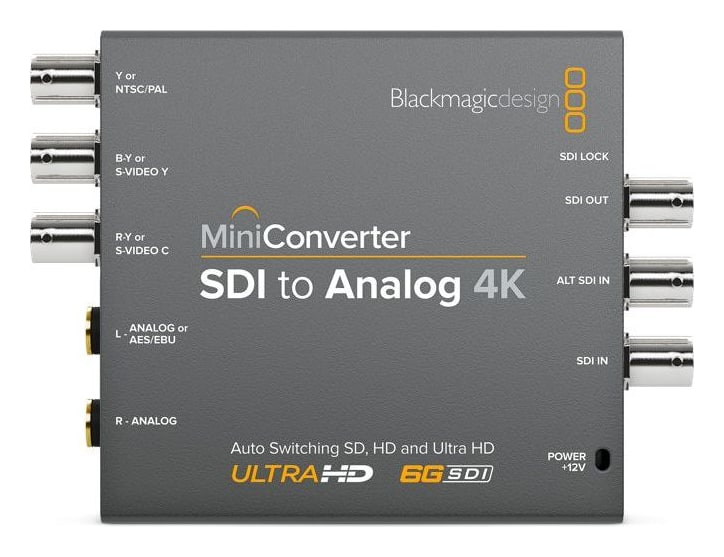

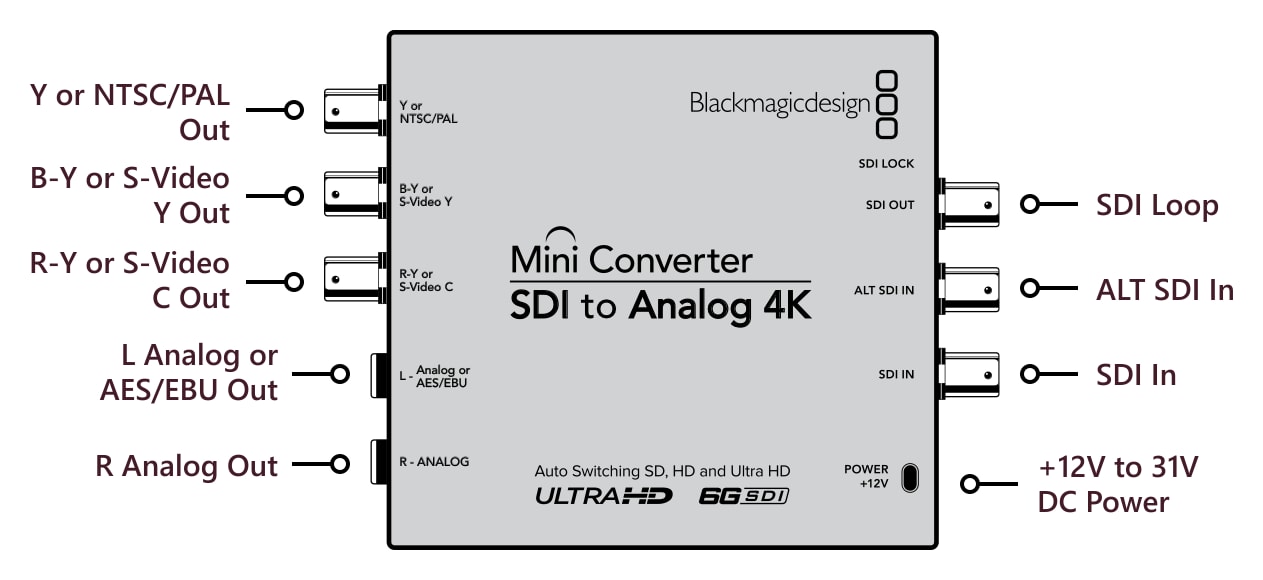

Connections
One side has three BNC connectors for analog video (Y or NTSC/PAL, B-Y or S-Video Y, R-Y or S-Video C) and two audio jacks (left for analog or AES/EBU, right for analog), the other the SDI loop output, the redundant ALT SDI input, the SDI input and the power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
Core settings are selected with mini switches using the diagram printed on the unit, while USB is used for configuration and updates. The converter handles supported formats automatically and keeps picture and sound stable throughout the signal chain.
PACKAGE CONTENT
- Mini Converter SDI to Analog 4K
- Software CD
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- SDI inputs: 1× SD/HD/6G-SDI and 1× redundant SDI input (ALT SDI)
- Redundant SDI input: automatically switches over if the main input is lost
- SDI output: 1× SDI loop output
- Analog video outputs: component SD/HD (Y, B-Y, R-Y), S-Video, composite NTSC and PAL (3× BNC)
- Analog audio outputs: 2 channels of balanced analog audio, 1/4 inch jack
- Digital audio outputs: 2 channels of AES/EBU (shared with the left analog jack)
- Auto detection: SD, HD, 6G-SDI
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI standards: 4K DCI 23.98p, 24p, 25p
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, ST 2081, ITU-R BT.656 and BT.601
- SDI sampling and color space: 4:2:2, YUV
- Audio sampling: 48 kHz, 24 bit
- Analog video standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
- Analog sampling and color space: 4:2:2, YUV
- Format conversion: HD down conversion
- Reclocking: yes
- Settings control: mini switches or USB software
- Software updates: via USB from a Mac or Windows computer
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: universal 12 V with international socket adapters, cable tie point
- Operating voltage: 12–31 V DC
- Power consumption: 8.04 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

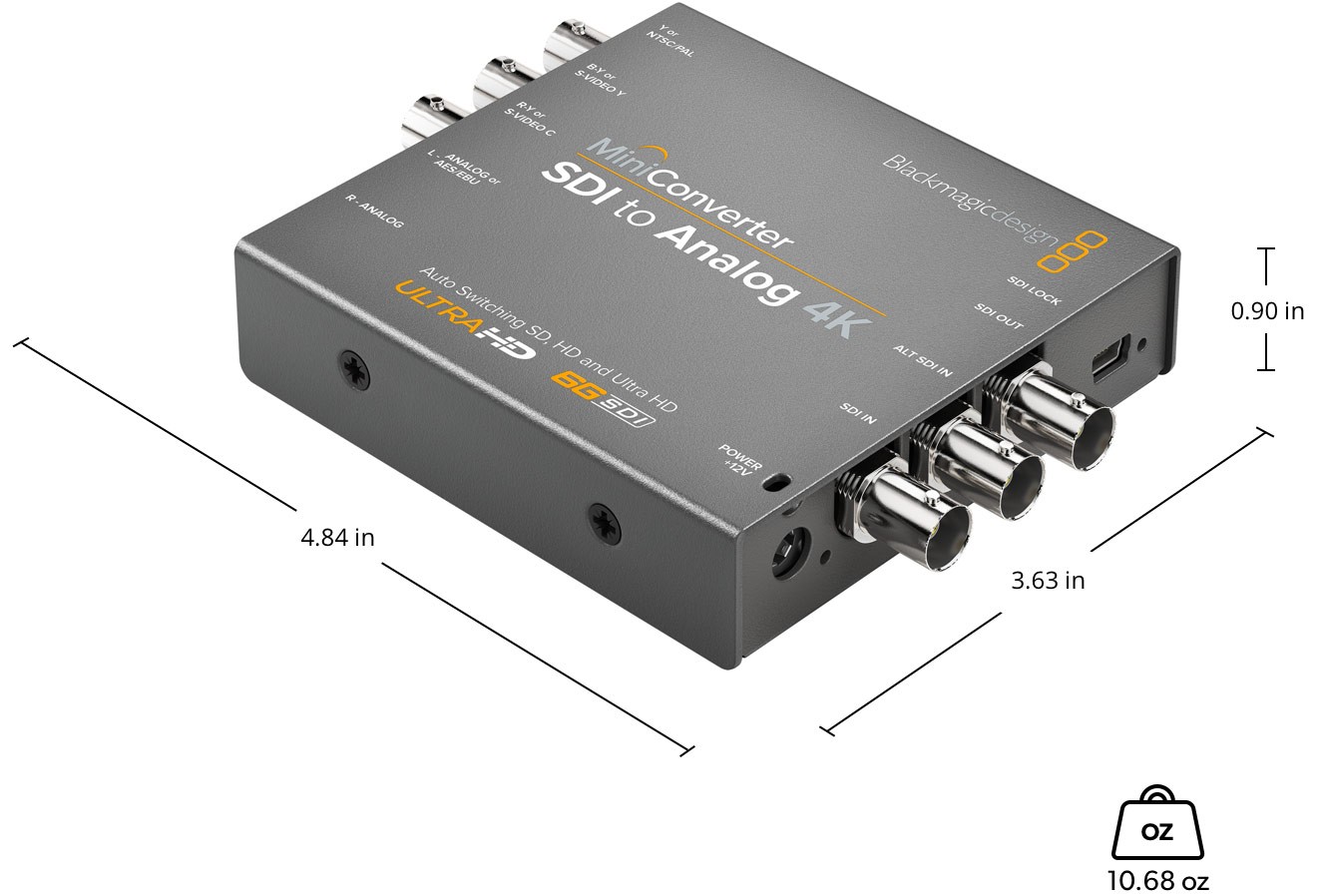

- Dimensions (L × W × H): 4.84 × 3.63 × 0.90 in (123 × 92 × 23 mm)
- Weight: 10.68 oz (303 g)
- Warranty: 3-year limited manufacturer warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | SDI LOOP · Audio output · auto format adaptation |
| Source | SDI · 6G SDI |
| Target | Analog |
