Blackmagic Design Micro Cinema Camera Expansion Cable

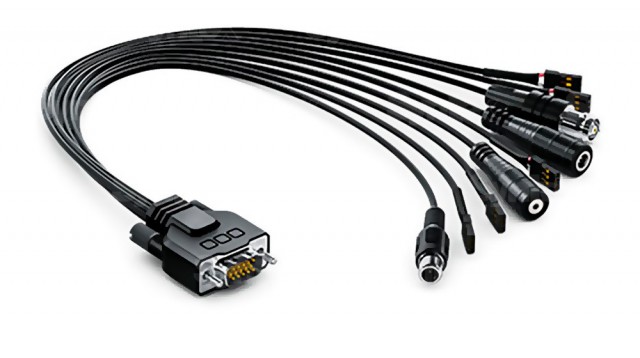

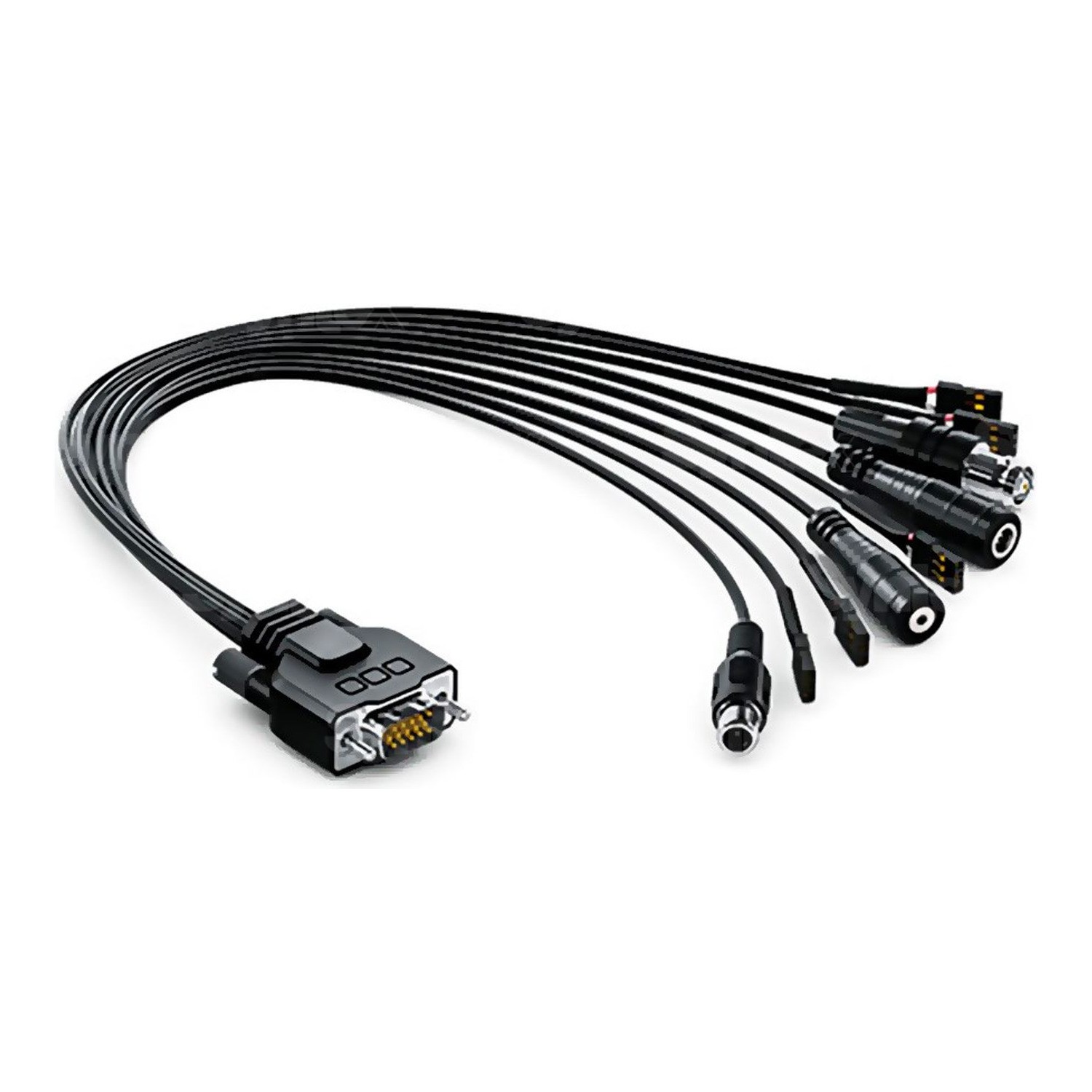

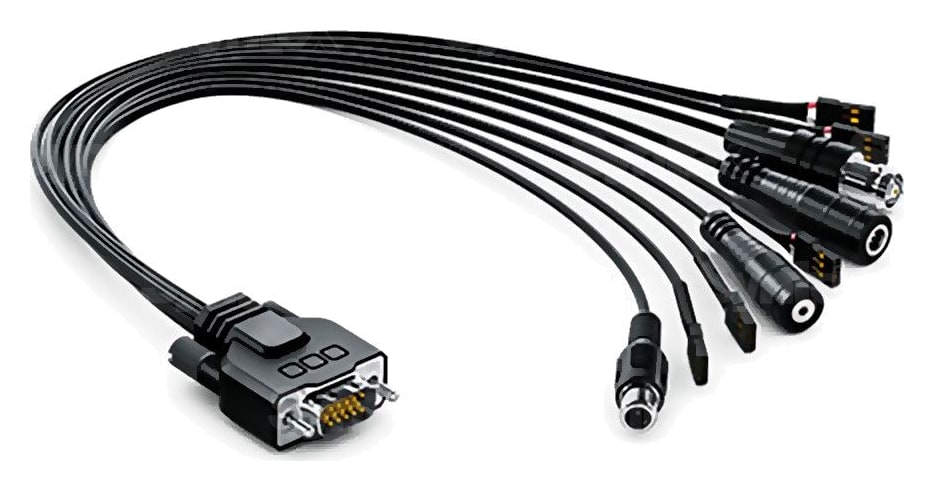

The Blackmagic Design expansion cable for the Micro Cinema Camera connects to the DB-HD15 connector and gives access to the 12 V power input, the sync input, LANC, the composite video output, four PWM analog servo inputs and S.Bus digital servo. The same cable is included with the camera; on its own it is useful as a spare or second cable for remotely controlled rigs and permanent camera installations.

Micro Cinema Camera remote control on one cable

The cable breaks out the expansion port on the camera (Micro Cinema Camera) to connectors for power, sync, composite preview and wireless control.

DB-HD1512 V powerComposite output4× PWM servoS.Bus

Control via a radio receiver

The four PWM analog inputs and the S.Bus digital input connect to the receiver of a radio control set. The channels can be assigned to focus, iris, power zoom or record start.
