Azden WLX-PRO

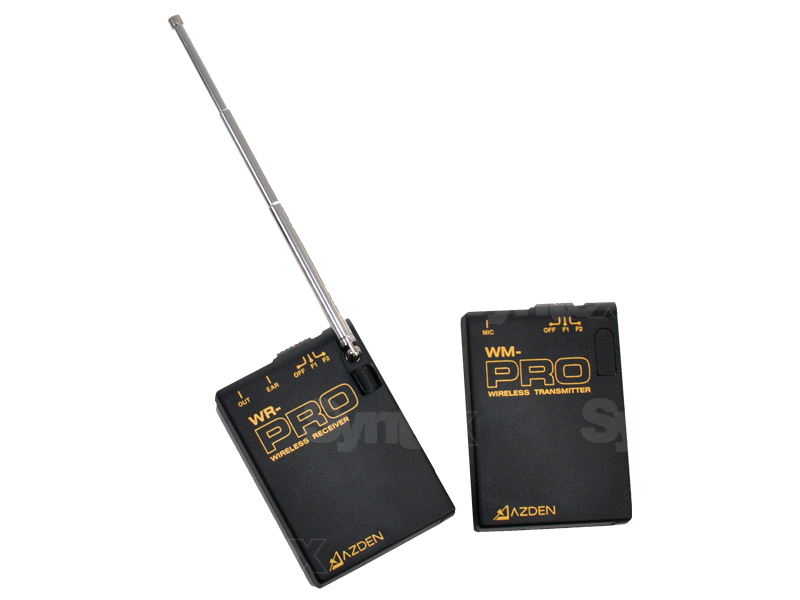

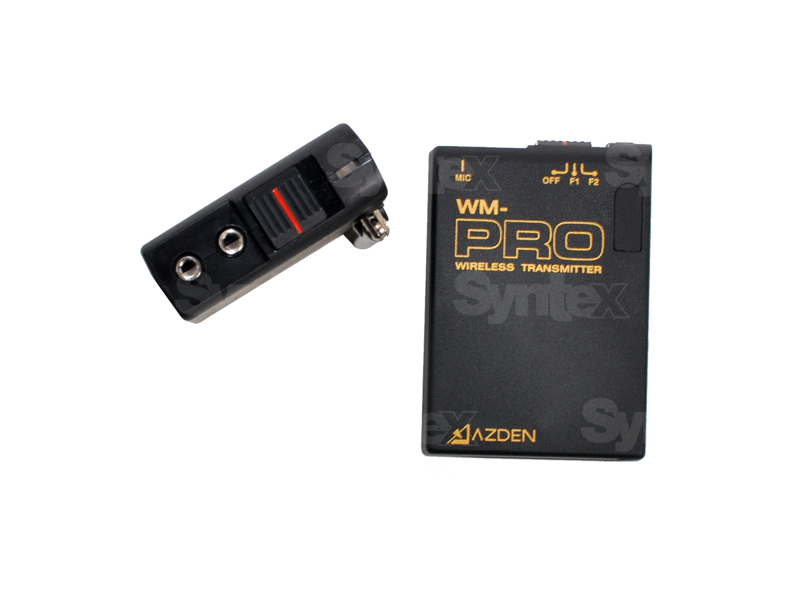

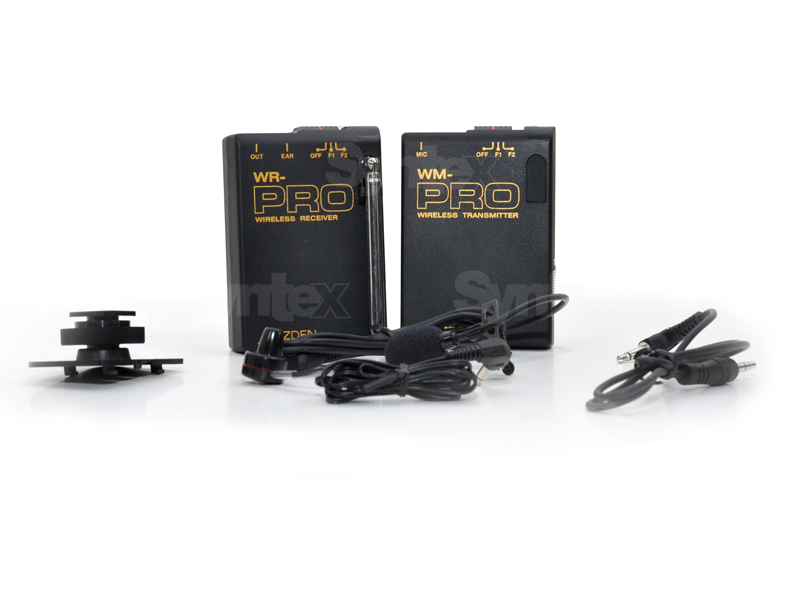

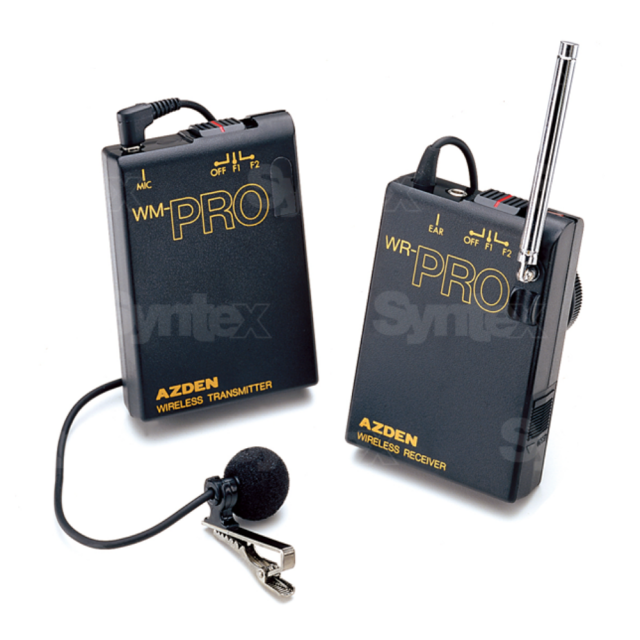

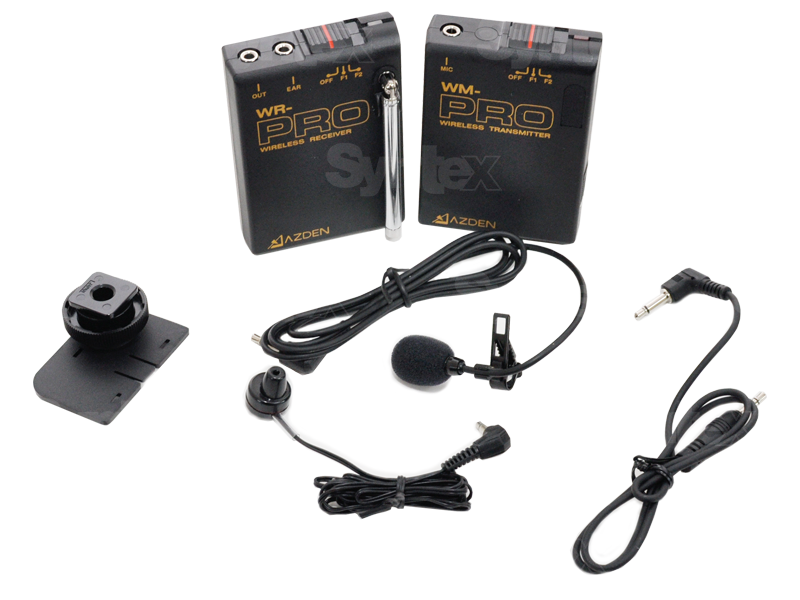

A complete system which includes the WL/T-PRO a belt-pack transmitter (WM-PRO) with electret condenser lavalier microphone (EX-503) and the WR-PRO receiver which comes with both shoe-mount and hook and loop fastener. All receivers and transmitters in the “PRO” Series are on the same 2 frequencies (169.445MHz and 170.245MHz).

A complete system which includes the WL/T-PRO a belt-pack transmitter (WM-PRO) with electret condenser lavalier microphone (EX-503) and the WR-PRO receiver which comes with both shoe-mount and hook and loop fastener. All receivers and transmitters in the “PRO” Series are on the same 2 frequencies (169.445MHz and 170.245MHz).

Receiver Technical Specs:

• Receiver type: Double superheterodyne
• Sensitivity: 2mV @ S/N of 40dB
• Battery: 1-9V Alkaline
• Power consumption: 25mA
• Monitor output: 1V @ 30W, Modulation frequency: 1kHz, Deviation: +/-7kHz
• Mic output: 8mV w/10KW load, Modulation frequency: 1kHz, Deviation: +/-7kHz
• Mic output impedance: 300W
• Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
• Weight w/battery: 128g (4.5oz)

Transmitter Technical Specs:

• Modulation system: FM
• Sensitivity: 94dB SPL @ +/- 2.5KHz deviation
• Battery: 1-9V
• Power consumption: 30mA
• Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3? x 2.4? x 0.85?)
• Weight: 98g (3.4oz)
