AVtec XFM070 Ultra Thin 7” Full HD Monitor

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The AVtec XFM070 Full HD on-camera monitor has a 7” IPS LCD panel in an aluminum housing. This product will provide you with a powerful, portable and dependable image reference that can be used in a variety of settings.

It is a great tool for focusing, composing, and viewing images/video clips directly from your digital camera/video camera. It has advanced integrated digital signal processing circuits and a IPS LED Panel which makes it high brightness with low power consumption, stable performance and low radiation. It is conveniently sized for easy transportation, and it is perfect for difficult shooting situations.

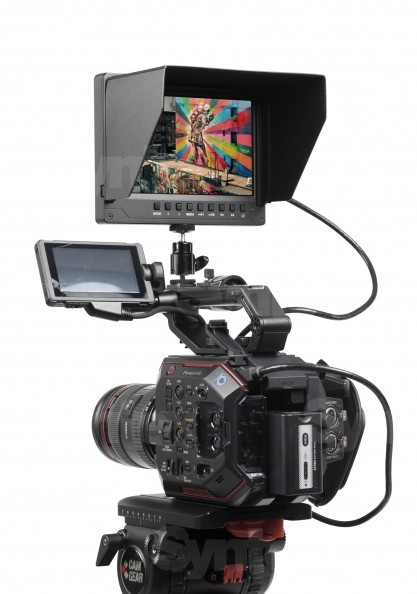

This monitor only weighs 550 grams and can be mounted on your camera via the hot shoe attachment on the supplied ball head. The unit can be powered by both a battery (NP-F, BP-U & LP-E6) and DC adapter. Connect it directly to any DSLR or HD/4K video camera through HDMI and monitor your shots in 1920x1080 resolution. It supports both NTSC and PAL compatible signals. With brightness levels of 400 cd/m2, a 1200:1 contrast ratio and 160° vertical and horizontal viewing angles, it’s a great tool for professional videographers.

Features

  • Ultra Thin 7” IPS LCD Panel in aluminum housing
  • 1920x1080 HD screen, PAL/NTSC color system
  • Supports 4K UHD HDMI input
  • Built-in speaker & integrated jack port for headphones
  • Firmware upgradable through USB
  • Supports a variety of battery types (NP-F/ LP-E6/ BP-U)
  • Four assignable function buttons
  • Focus Assist, Center Marker, Safe Frames, Check Field
  • Image Freeze, Image Flip & Pixel-to-Pixel
  • Histogram, Exposure (Zebras) & False Colors
  • Analog stereo L/R, Embedded Audio Display
  • Image Zoom function, Image Nine Grid and Anamorphic Mode
  • Brightness, Contrast, Tint, Saturation and Color Temperature adjust

AVtec XFM070 Ultra Thin 7” Full HD Monitor

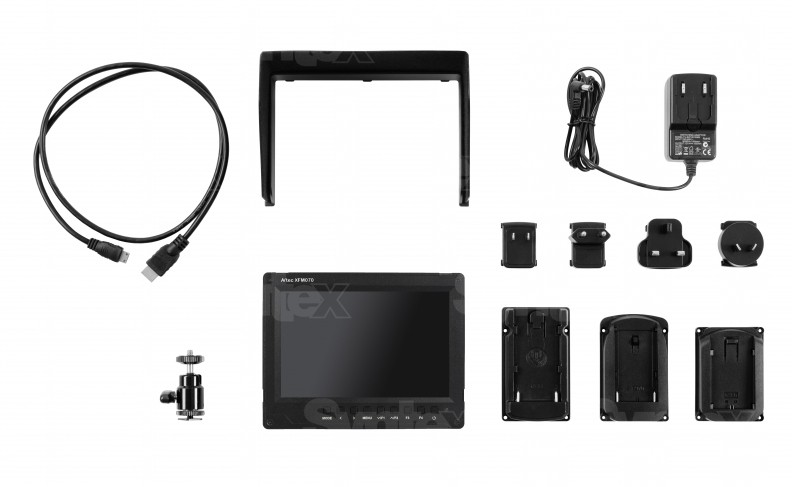

PACKAGE CONTENT

  • 1x AVtec XFM070

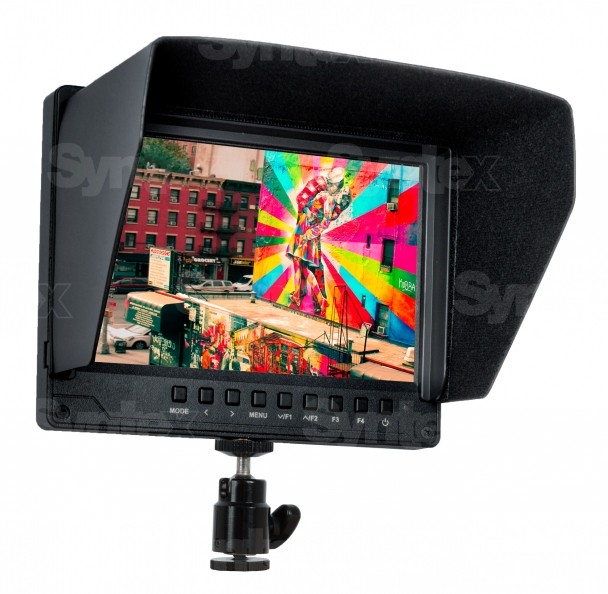

  • 1x Detachable sun hood attachment & foldable sun hood
  • 1x AC/DC combi adapter with EU, UK, US & AU plugs
  • 3x Battery bracket (for NP-F, BP-U & LP-E6 batteries)
  • 1x Ball head with ¼ camera screw
  • 1x HDMI cable1x Owner´s Manual

SPECIFICATIONS

  • Panel Size IPS LCD 7.0 inch
  • Panel Type IPS LCD
  • Resolution 1920x1080
  • Backlight LED
  • Dot Pitch 0.07875(W) x 0.07875 (H) mm
  • Aspect Ratio 16:9
  • Brightness 400cd/m2
  • Contrast Ratio 1200:1
  • Viewing Angle 80°/80°(Left/Right) 80°/80°(Up/Down)
  • Input Signal Video / Audio / HDMI
  • Video Color System NTSC 3.58 / PAL 4.43
  • HDMI Support Format 480i /480p /576i /576p
    720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25 / 24/24sF /23.98/23.98sF)
  • Headphone Output Stereo 3.5mm
  • Input Voltage DC:7.4~35V
  • Power Consumption ≦8W
  • Unit Size (LxWxH) 180 x 140 x 17 mm (7.09 x 5.51 x 0.67 inch)
  • Unit Weight 550 g (1.21 lbs) (incl. F970 bracket)
  • Installation Method 1/4 inch bracket screw hole, can be easily connected to the hot shoe mount, tripod fixed -§úinstallation
  • Working Temperature -20°C~55°C / -4°F~131°F
  • Storage Temperature -30°C~65°C / -22°F~149°F
Parameters

Parameters

Manufacturer: AVtec
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor inputs4K HDMI
Monitor power supplySony NP-F
Monitor power supplyLP-E6
Monitor power supplySony NP-F / BP-U
Panel resolution1920x1080

Other parameters

Other featuresLightweight
