Avenger C100 Junior Pipe Clamp 28mm/1 1/8in w/Tommy Bar 20-55mm

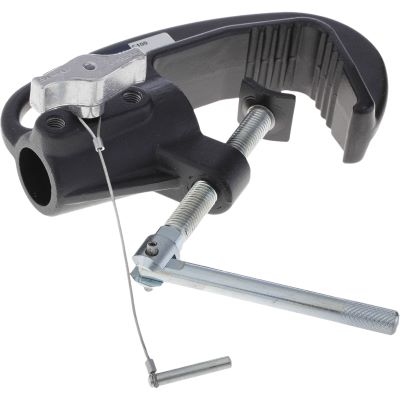

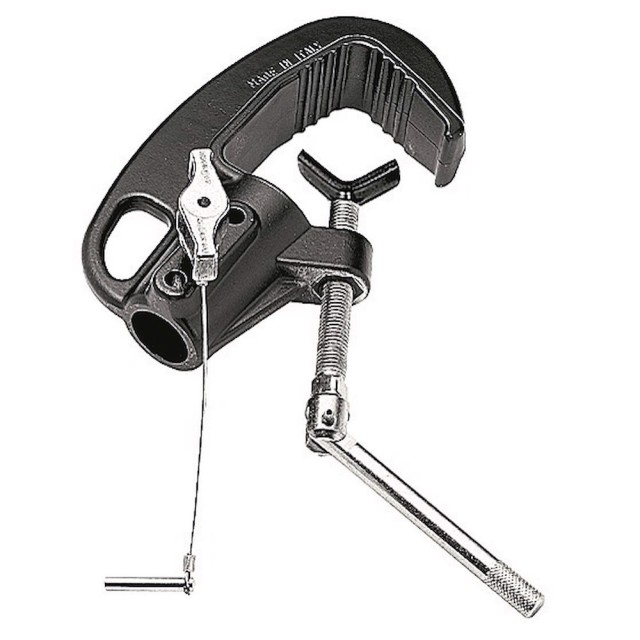

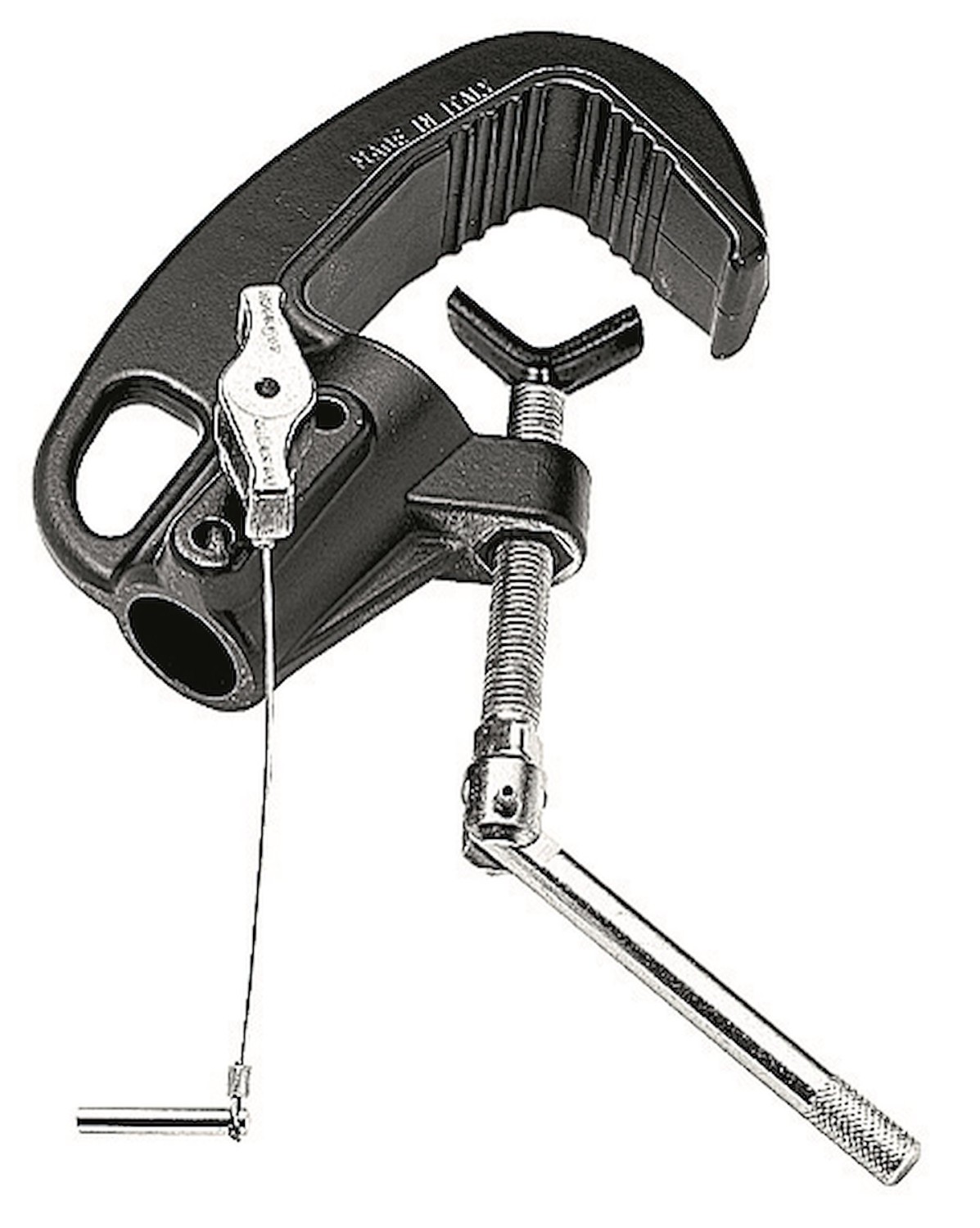

The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminium clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg/551.2 lbs, the jaws clamping range is from 20 mm - 55 mm/0.78 - 2.16 in and has an added safety…

More information

100.81 € 98.55 € with VAT 81.45 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminium clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg/551.2 lbs, the jaws clamping range is from 20 mm - 55 mm/0.78 - 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150

  • Gravity Cast junior clamp with load capacity of 250 kg/551.2 lbs
  • Pipe clamp jaws work on diameters from 20 to 55 mm/0.78 to 2.16''
  • Includes safety cable with pin to secure junior pins in socket
  • Tommy bar included to lock clamp: No tools required
  • Easily accepts a safety cable to secure clamp and load

Warranty Avenger Products
Avenger products are warranted to be fit for the purpose for which they have been designed, and to be free from defects in materials and workmanship.

Avenger “Standard Limited Warranty”
The validity period of the Standard Limited Warranty is defined by applicable law in the country, state or region where the product is sold. The instruction manual accompaning the product should be read carefully and the safety instructions followed to avoid accident or damage to the product or its user. This warranty does not cover any defects or costs caused by misuse and subsequent damage. Misuse is defined by, but not limited to, the cases described here below:
Modification, alteration, repair or service of this product by anyone other than an Avenger authorized agent.
Physical abuse to, overloading of, or misuse of, the product or operation thereof in a manner contrary to the instructions accompanying the product.
Failure to comply with care and maintenance instructions accompanying the product.
Any use of the product other than that for which it was designed.
Shipment of the product to the Avenger service department.

Warranty extension
Selected Avenger Products are eligible for a free Limited Conventional Warranty Extension from the date of purchase upon Online Product Registration. By simply registering your purchase with us, your product will receive the warranty extension, if applicable. Registration only takes a few moments, and the information you provide will also help us to ensure that our products and services answer the needs you express.
To register your product online and receive the warranty extension, click here to go to the Online Product Registration mini-site.

PACKAGE CONTENT

Avenger C100 Junior Pipe Clamp

SPECIFICATIONS



Weight
1.13 kg

Payload
250 kg

Attachment 01
1 1/8" (28mm) socket

Length
4.8 cm

Clamp Range - Max. (Round Tube)
55 mm

Clamp Range Min Round Tube
20 mm

Colour
Black

Material
Aluminium

Parameters

Parameters

Manufacturer: Avenger
Category: Accessories
