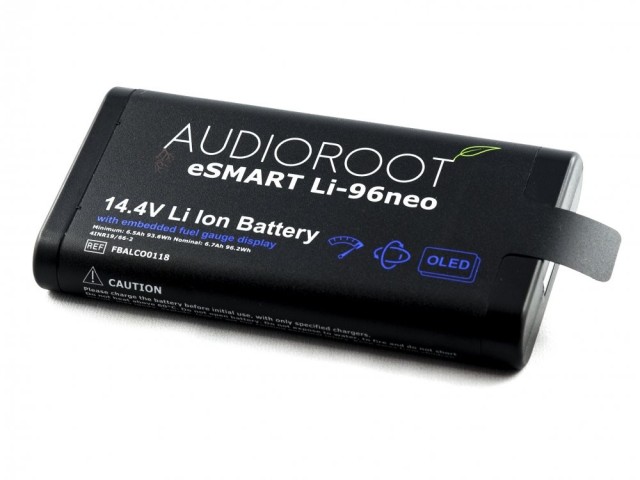

Audioroot e-Smart Li-96neo

14.4V 96Wh lithium-ion battery with OLED display

This new model has a built-in OLED display that allows you to see real-time information about the battery charge status. This helps users get accurate information about battery voltage, current draw, run time and more, when connected to any type of device. This is very useful when connecting the battery to a device or DC power distribution box that is not SMBUS equipped.

The operation of the built-in OLED display is fully automatic. When the battery is disconnected, the OLED can be activated by shaking the battery, allowing the battery capacity, cycle count and temperature to be checked. When the device is powered by the battery, the OLED display turns on and displays real-time charge status information. When the device is powered off or disconnected from the battery, the OLED display turns off.

If the battery is connected to a fully SMBUS compatible device, the OLED will remain off to conserve power and keep the SMBUS lines clear.

Main Features:

• Rechargeable lithium-ion battery with high energy density
• SMBUS compatible Impedance Track™ power meter
• Built-in OLED display
• Industry standard 5-pin connector

Technical product features:

At T = 25°C, RH = 65% +/- 20% (unless otherwise noted)

• Lithium-ion Technology
• Rated voltage: 14.4V
• Typical Capacity: 6700 mAh
• Minimum Capacity: 6200 mAh
• Operating voltage: 10 to 16.8V
• Standard charging method: Constant current, constant voltage (CC/CV) 3.25A to 16.8V
• Standard discharge method: Constant current (CC) 1.3 A to 10 V
• Maximum charging current: 5.75A
• Maximum continuous discharge current: 11.75 A
• Maximum charging voltage: 16.8V
• Operating Temperature
  • Charging: 10~45°C
  • Discharging: -20~60°C
• Storage temperature
  • 1 month: -20~50°C
  • 3 months: -20~40°C
  • 1 year: -20~20°C

• Weight: 450 g
• Dimensions: 150.4 x 77.20 x 22.60 mm
• Cell certification: UN 38.3 / IEC 62133
• Battery certification: UN 38.3 / EMC / FCC / CB IEC62133 / RoHS / REACH
• Cycle life: After 500 cycles, the battery will retain at least 70% of its original capacity when used in the standard charge and discharge mode, including 30 minutes of rest after each charge and discharge.

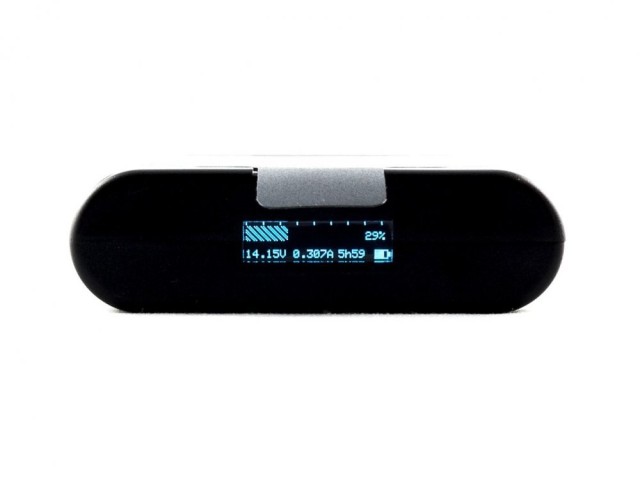

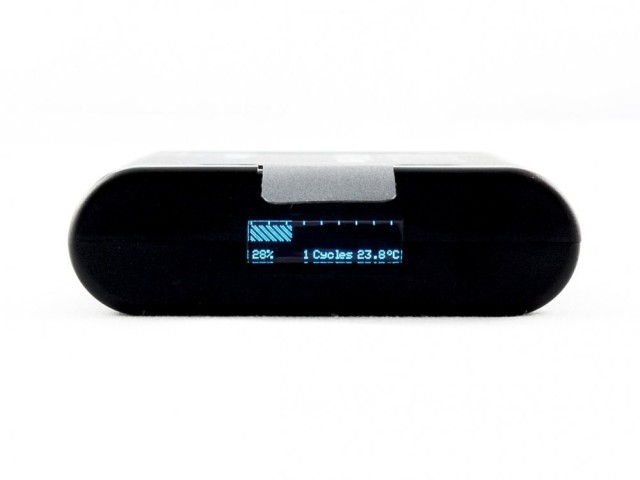

• OLED information displayed
  • Remaining battery capacity (%)
  • Battery voltage (V)
  • Battery current draw (A)
  • Remaining battery time (HH: MM)
  • Number of cycles
  • Battery temperature (°C)
  • Battery status (charging or discharging)
