The Nova P600c represents the next generation of the Nova family of LED panels, building on the foundation of high color fidelity, 2,000K~10,000K CCT, and soft light quality while also featuring best-in-class output, and a new suite of professional-level controls. With its 600W RGBWW chipset, the Nova P600c is the brightest 2x1 Soft Panel on the market, boasting an output of 2,298 lux at 3 meters.

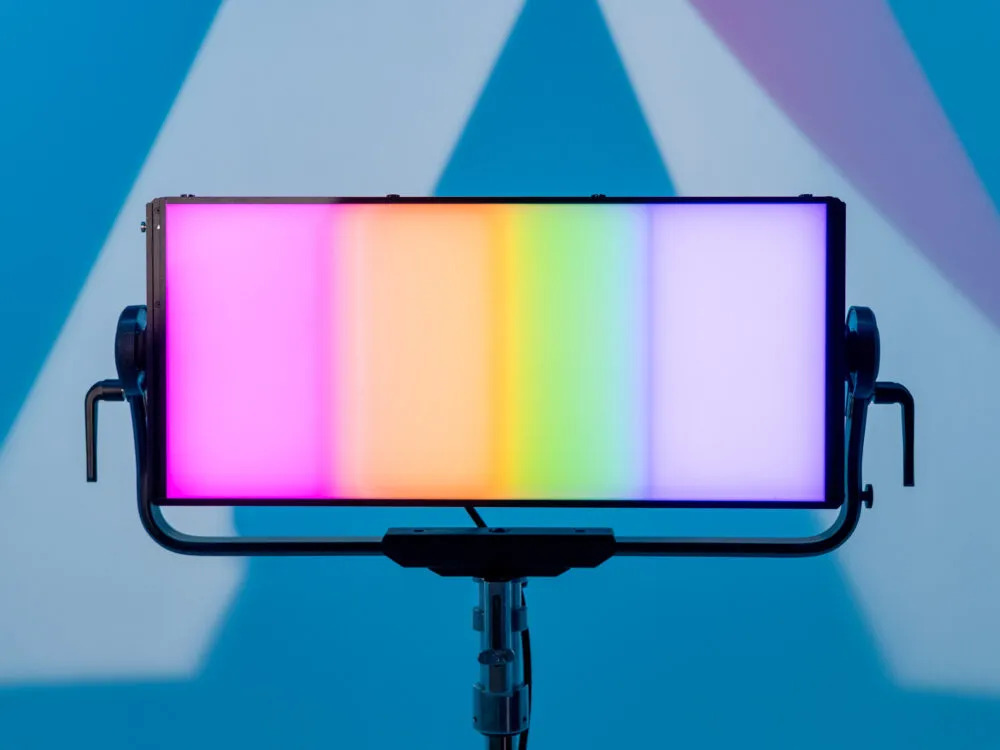

The Nova P600c is the first Aputure fixture to feature multiple light engines and pixel control. Its multiple light engines can be activated when using the built-in lighting effects, or can be controlled independently via DMX.

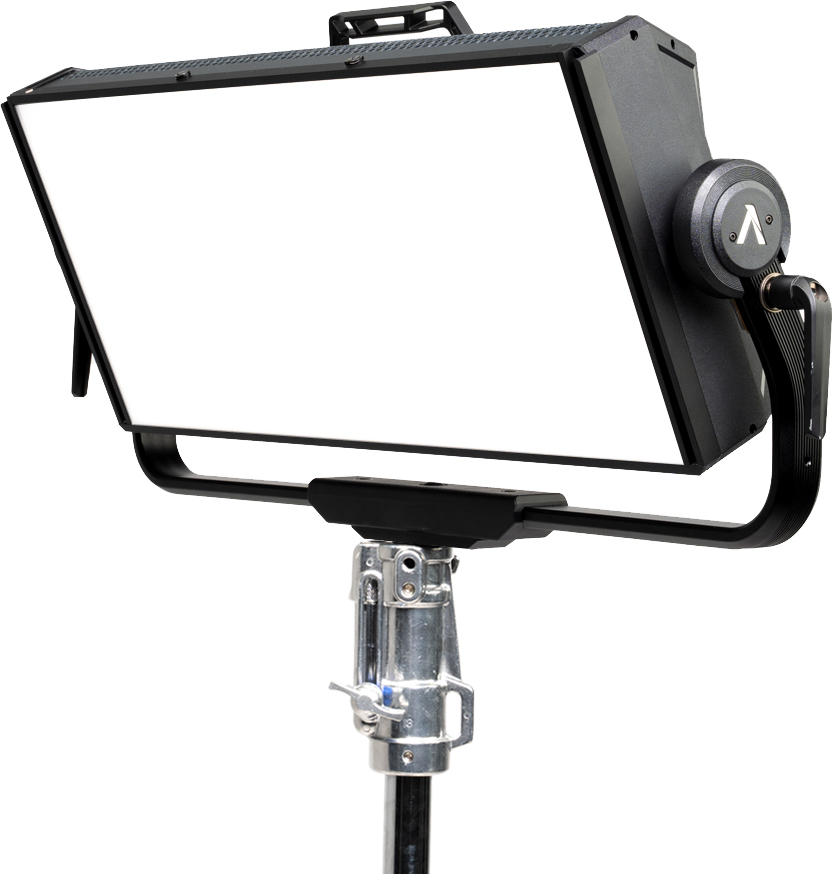

The yoke on the Nova P600c has also undergone an upgrade, now featuring a curved design, similar to the LS 600d Pro and 600x Pro, allowing it to maintain tilt-control when using modifiers, which is difficult for traditionally designed straight yoke LED panels.

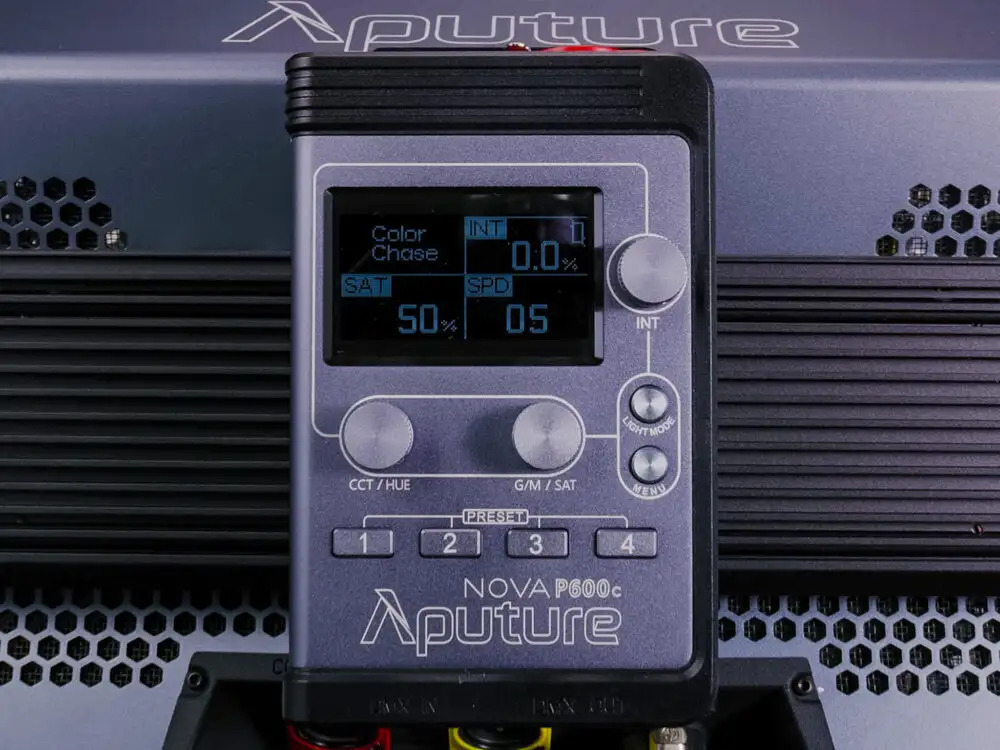

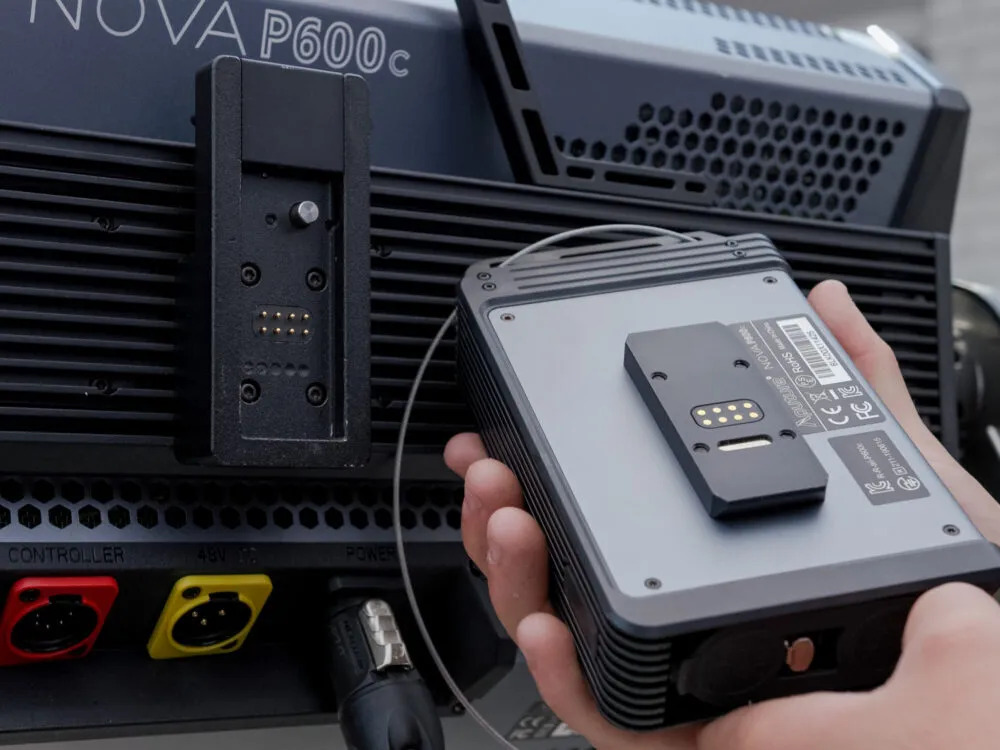

In addition to its 3 meter extension cable, the P600c's control box has been updated with contact pins integrated into the Lightning Clamp for completely cable-less operation.
The Nova P600c features a built-in power supply, minimizing weight and setup time. It also features a 48V/15A 3-Pin XLR DC input for users who want to operate the fixture via quiet battery power solutions instead of noisy generators.
As a member of the Aputure family, the Nova has integrated Sidus Mesh technology, allowing it to wirelessly network with other Sidus-enabled lights, all of which can be controlled through the Sidus Link mobile app.
Professional lights deserve professional-level connectivity. In addition to 5-Pin DMX512, lighting technicians can also control the Nova P600c wirelessly using its built-in Lumenradio CRMX.
SPECIFICATIONS
| CCT | 2000K – 10000K |
| G/M Adjustable | ±1.00G |
| Color Modes | HSI, RGB, XY, Gels |
| CRI | ≥95 |
| TLCI | ≥95 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 74 |
| TM-30 RF (Average) | 95 |
| TM-30 RG (Average) | 103 |
| Beam Angle (Half-Peak Angle) | 120° |
| Max Power Output | 600W |
| Max Power Consumption | 720W |
| Operating Current (AC) | 8A |
| Operating Current (DC) | 15A |
| Operating Voltage (AC) | 100V~240V |
| Operating Voltage (DC) | 48V DC |
| DC Input | 48V 15A |
| Cable Type (AC Power) | Neutrik® powerCON TRUE1 TOP AC Power Cable (6m) |
| Cable Type (Head Cable) | 5-Pin XLR Head Cable (3m) |
| Operating Temperature | -20°C ~ 45°C / -4°F ~ 113°F |
| Control Methods | On-board, Sidus Link App, 5-Pin DMX512, LumenRadio CRMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh), LumenRadio CRMX |
| Firmware Upgradeable | USB (FAT16/FAT32), Sidus Link |
| Display Type | OLED |
| Cooling Method | Active Cooling |
| Mounting | Junior Pin |
| Accessory Mount | Nova P600c Accessory Slot |
| Estimated LED Lifetime (L70) | 50,000 Hours |
DIMENSIONS
| Lamp Head w/ Yoke | 80.20*48.15*17.96cm / 31.57*18.95*7.07in |
| Lamp Head w/o Yoke | 63.97*28.49*16.58cm/21.18*11.21*6.53in |
| Panel Surface | 63.97*28.49cm/21.18*11.21in |
| Control Box | 15.75*9.66*4.58cm / 6.20*3.80*1.80in |
| Lightning Clamp | 10.35*8.74*12.5cm/4.07*3.44*4.92in |
| Carrying Case | 93.75*30.65*64.10cm/36.91*12.06*25.23in |
WEIGHT
| Lamp Head | 13.74kg / 30.29lbs |
| Control Box | 0.43kg / 0.947lbs |
| Case (Empty) | 13.7kg / 30.2lbs |
| Total Weight | 27.87kg / 61.44lbs |
PHOTOMETRICS
| CCT / Distance | 1m | 3m | 5m |
| 2700K | 14,586 lux | 1,850 lux | 725 lux |
| 1,363 fc | 173 fc | 68 fc | |
| 3200K | 15,240 lux | 1,936 lux | 746 lux |
| 1,424 fc | 181 fc | 70 fc | |
| 4300K | 15,533 lux | 1,945 lux | 758 lux |
| 1,452 fc | 182 fc | 71 fc | |
| 5600K | 17,520 lux | 2,167 lux | 847 lux |
| 1,637 fc | 202 fc | 79 fc | |
| 6500K | 18,346 lux | 2,298 lux | 867 lux |
| 1,714 fc | 215 fc | 81 fc |
| Manufacturer: | Aputure |
| Category: | Studio Lights |
| Type of light | LED |
| Power (W) | 600Watt |
| Power supply type | Power adapter |
| Colour temperature | 2000K-10000K |
| Flaps | No |
| DMX | Yes |
