Sennheiser EW-D ASA (X-Y) Active Antenna Splitter 1350–1805 MHz
SKU: ASA EW-D (X-Y)
The Sennheiser EW-D ASA (X-Y) is an active antenna splitter for Evolution Wireless Digital systems operating in the 1350–1805 MHz range. It allows two antenna inputs to be distributed to four receivers, or a single input to be distributed to eight receivers.
709 € with VAT
585.95 € without VAT
Availability
on request
Top accessories for Sennheiser EW-D ASA (X-Y) Active Antenna Splitter 1350–1805 MHz
Sennheiser AB 4-GW antenna amplifier
The Sennheiser AB 4-GW is a compact inline antenna booster for evolution wireless
251 €
on request
Product description
Product description
The Sennheiser EW-D ASA (X-Y) is an active antenna splitter for Evolution Wireless Digital systems operating in the 1350–1805 MHz range. It allows two antenna inputs to be distributed to four receivers, or a single input to be distributed to eight receivers.
EW-D Signal Distribution
The Sennheiser EW-D ASA (X-Y) active splitter splits the antenna signal in the 1350–1805 MHz band for Evolution Wireless Digital multi-channel installations. The two antenna branches support up to four receivers; the RF OUT A output allows you to connect another splitter for an eight-channel setup.
Inputs, Outputs, and Power

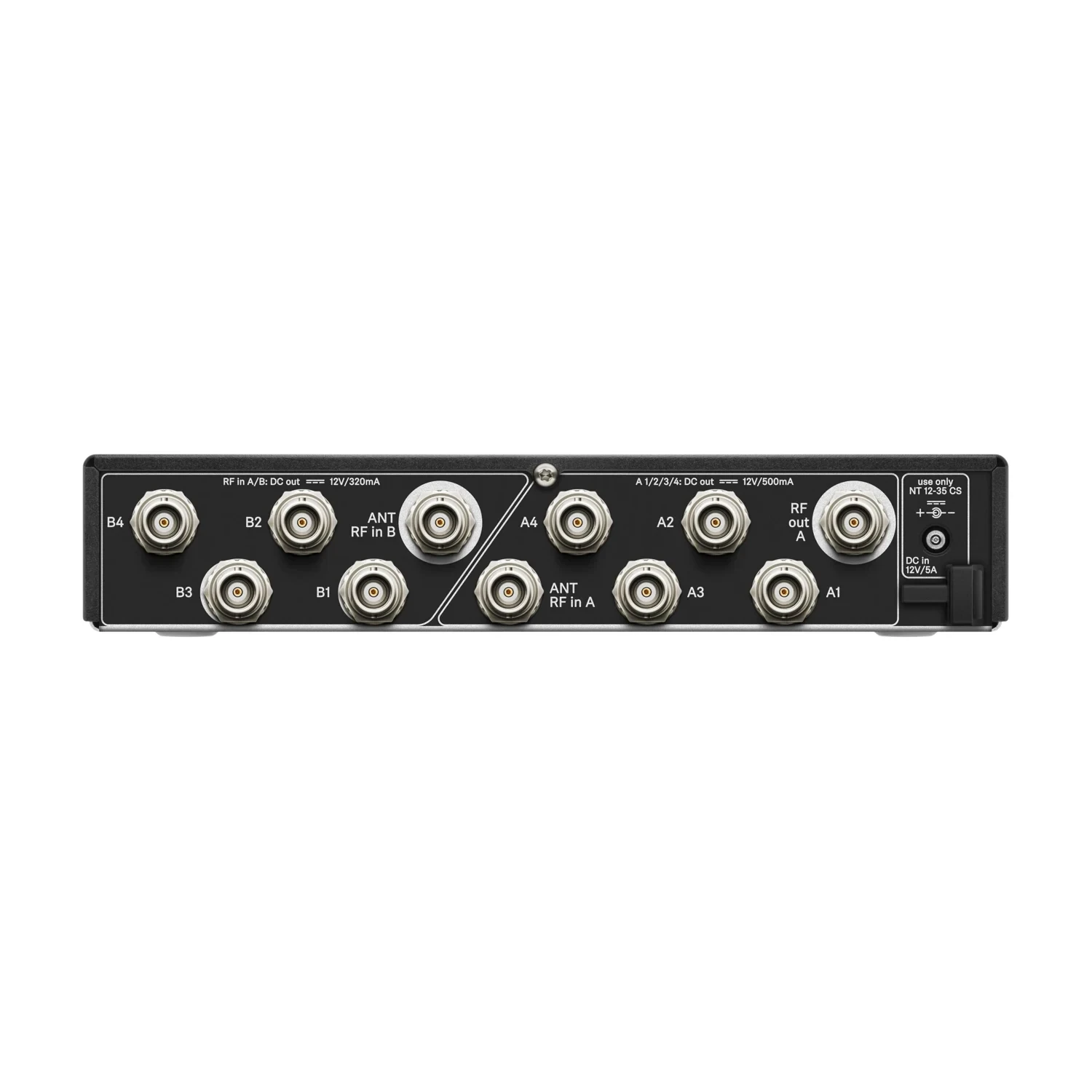

The rear panel features a pair of ANT RF IN A/B inputs, eight BNC outputs (A1–A4 and B1–B4) with DC power distribution, and a separate RF OUT A output for cascading.
The splitter powers compatible EW-D EM receivers and antenna boosters. Use the included NT 12-35 CS power supply and follow local regulations for operating on X-Y frequencies.
Package Contents
- 1× Sennheiser EW-D ASA (X-Y) active antenna splitter
- 1× NT 12-35 CS power supply
- 8× BNC antenna cables
Technical Specifications
- Frequency range of the X-Y variant: 1350–1805 MHz
- Splitter configuration: 2× 1:4 or 1× 1:8; active
- Gain: 0 ± 1 dB; impedance: 50 Ω; IIP3: > 25 dBm
- Operating voltage: +12 V DC; typical current consumption: 210 mA
- Dimensions: approximately 212 × 168 × 43 mm; weight: approximately 1100 g
- Operating temperature: −10 to +55 °C
Parameters
Parameters
| Manufacturer: | Sennheiser |
| Category: | Wireless systems |
Main parameters
| Frequency band | 1350–1805 MHz |
| Dimensions | 212x168x43mm |
| Product weight | 1100g |
