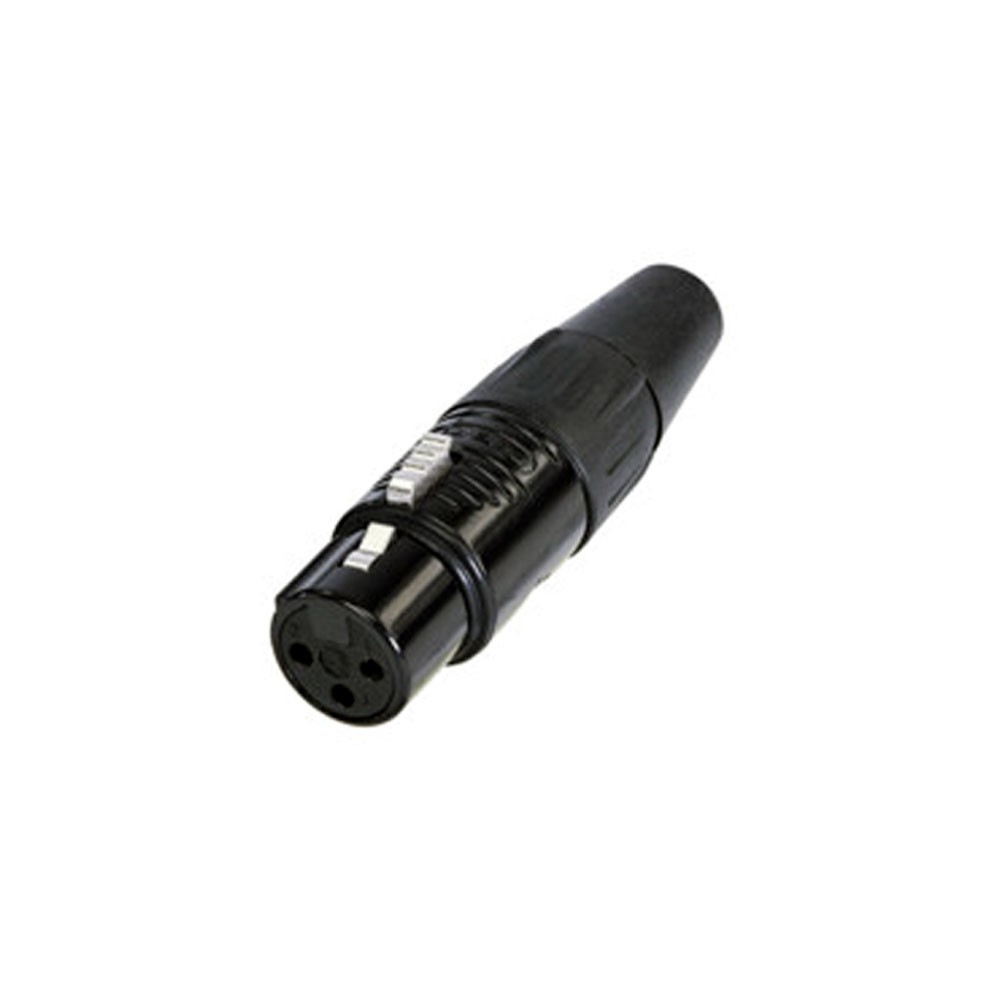

Rean RC3F-B 3 pole female XLR cable connector

Rean 3 pole female XLR cable connector, Black plated housing, gold plated contacts

Technical Information

Product
Title - RC3F
Connection Type - XLR
Gender - female
Electrical
Insulation Resistance - > 1.5 GΩ
Contact Resistance - ≤ 5 mΩ
Rated Current - 10 A
Mechanical
Lifetime - >1000 Mating Cycles
Insertion Force - ≤ 30 N
Withdrawal Force -  ≤ 20 N
Cable O.D. -  4 - 7 mm
Wiresize - 1.5 mm²
Wiresize - 16 AWG
Material
Plastic Body - PA6+30%GF UL94-HB
Jack - Bronze
Ground Contact - Steel
Rubber Ring - Rubber
Button - Zinc
Housing - Zinc
Chuck - POM
Push Ring - POM
Bushing - PA6+30%GF
Boot - PVC
Jack - Sliver Plating
Ground Contact - Tin and Cer
Button - Nickel Plating
Housing -  Nickel Plating
