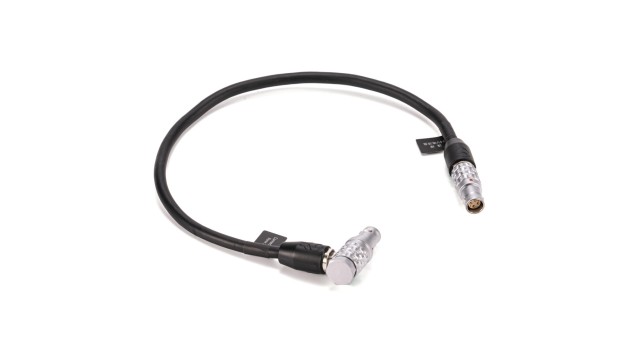

Tilta 4-Pin Right Angle Male to 4-Pin Female Power Cable (30cm)

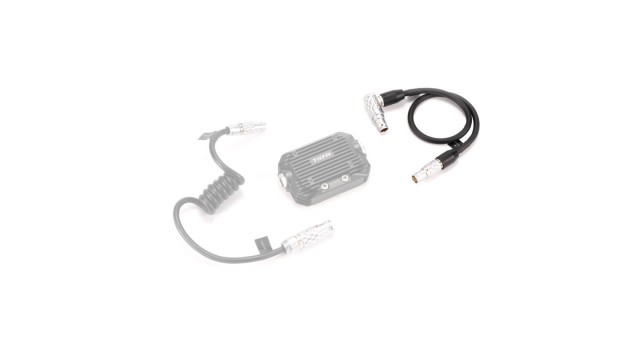

The Tilta TCB-R4LEM-4LEF-30 is a 30 cm 24 V power cable for the DJI Ronin 2: a right-angle 4-pin plug on the gimbal side and a 4-pin socket at the other end. It carries power from the Ronin 2 to the Tilta 24V Power Distribution Module for DJI Ronin 2, which then feeds the camera and 24 V accessories. It is the replacement for the cable included in the module kit.

The Tilta TCB-R4LEM-4LEF-30 is the link between the DJI Ronin 2 and the 24 V distribution module. Without it the module has nowhere to draw power from — it is the same cable as in the module kit, as a replacement or a spare for the bag.

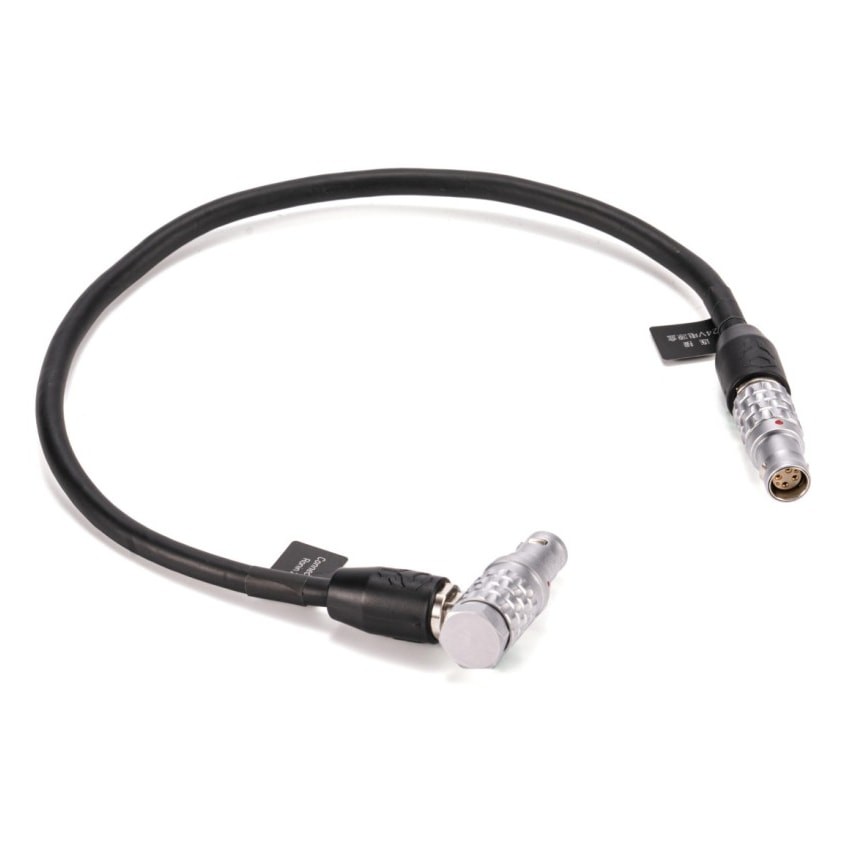

Right-angle plug into the Ronin 2, socket for the module

The right-angle 4-pin plug goes into the power output on the DJI Ronin 2, and thanks to the 90° angle the cable runs along the gimbal body rather than straight out into space. The 4-pin socket at the other end takes the plug of the Tilta 24V Power Distribution Module for DJI Ronin 2. Both connectors have push-pull locking, so the cable will not pull out as the gimbal turns. The cable is built for the 24 V the Ronin 2 supplies to high-voltage camera systems and accessories.

30 cm, replacement part of the kit

The 30 cm length matches the distance between the gimbal output and the module on its arm, so the cable does not hang anywhere. The connectors are ABS plastic, the conductors copper, the colour black. The cable is part of the 24V Power Distribution Module kit; on its own it is bought as a replacement or a spare. From the module to the ARRI ALEXA 35 the coiled TCB-4LEM-8LEF cable then takes over.

Tilta cables

The Tilta TCB cable range links camera, battery and accessories on the rig: power from a V-Mount or Gold Mount plate over P-Tap, 2-pin Lemo, 3-pin Fischer or a DC barrel connector, USB-C PD for monitors and handles, 7-pin control cables for the Nucleus system and HDMI or BNC for the picture. Lengths follow the rig — short on the cage, longer out to arms and batteries; this cable is one of them.
