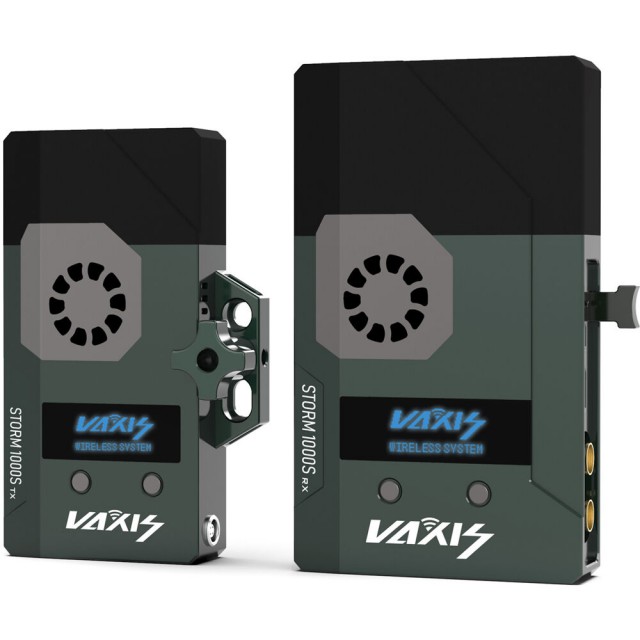

Vaxis Storm 1000S Wireless Kit (V-Mount)

The Vaxis Storm 1000S Wireless Kit features both 3G-SDI and HDMI connections, and transmits visually lossless video signal with less than 1 ms latency (supports the 0s delay instantaneous playback on ALEXA Mini cameras). The effective range is 350 m (line of sight), transmitting via 20 (20 and 40 MHz wide) channels in the 5 GHz band, with multicasting support to multiple receivers. The Storm 1000S is also compatible with Storm 058, 800, 2000, and 5000 systems. Both units can be powered via external sources thanks to 2-pin Lemo and Micro USB inputs, the receiver also features an integrated plate for V-Mount batteries.

• Wireless Range: 350 m (Line-of-Sight)
• Number of Channels: 20
• Frequency Band: 5,1-5,9 GHz
• Bandwidth: 20/40 MHz
• Compression: none
• Transmission Power: max. 21 dBm
• Receiver Sensitivity: -75 dBm
• Modulation Mode: OFDM 16QAM
• Compliance: FCC, CE
• Latency: < 1 ms (supports ARRI 0S delay functionality)
• Video Format: 1080p24/23,98, 1080p60/59,94, 1080p50, 1080i60/59,94, 1080i50, 1080PsF30/29,97, 1080PsF24/25/23,98, 720p60/59,94, 720p50, 525i, 625i
• Input Audio Format: SDI embedded 4 channel 24-bit/48 kHz
• DC Input Power: 7 - 36 V= (2-Pin LEMO Input, Micro-USB)
• Battery: Receiver 1x V-Mount
• Video I/O: Transmitter: 1x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Loop Output, 1x HDMI Type A Input; Receiver: 2x BNC (3G-SDI) Output, 1x HDMI Type A Output
• Dimensions: Transmitter 138 x 69,5 x 24,5 mm, Receiver 156 x 91,5 x 24,5 mm
• Weight: Transmitter 290 g, Receiver: 435 g
