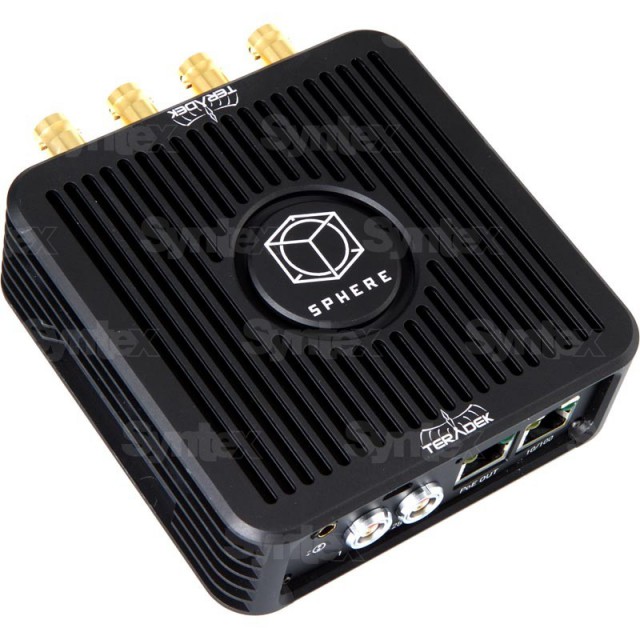

Teradek Sphere HD-SDI Wireless 360º Monitoring/Streaming
SKU: 10-0360

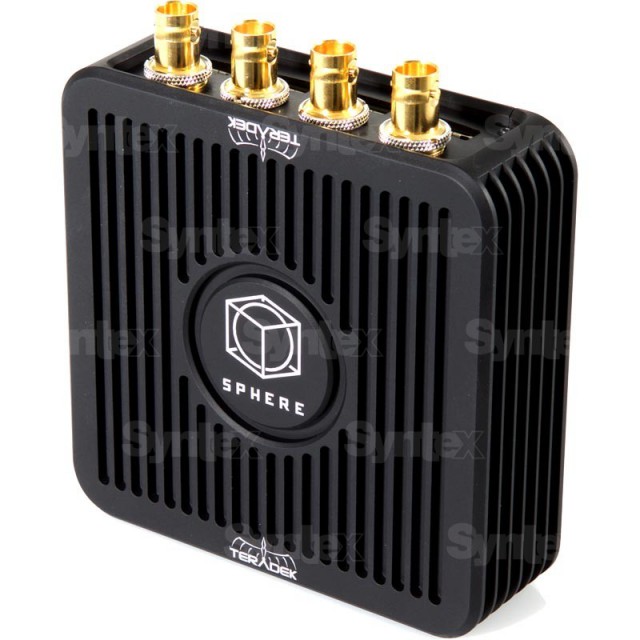

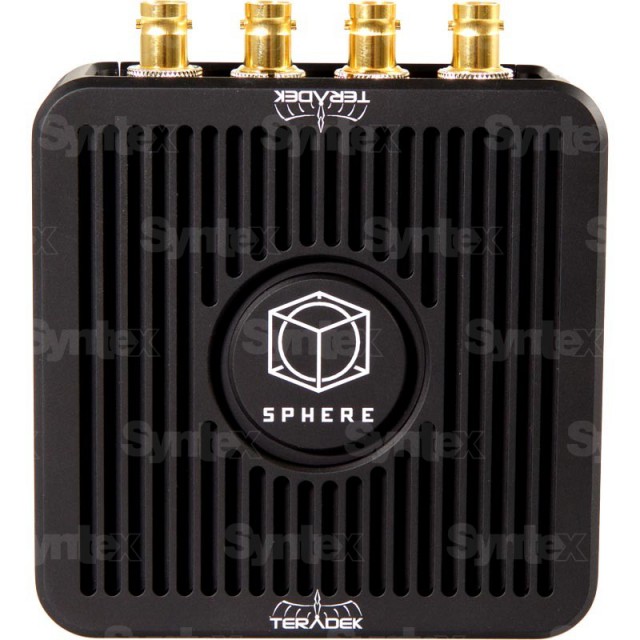

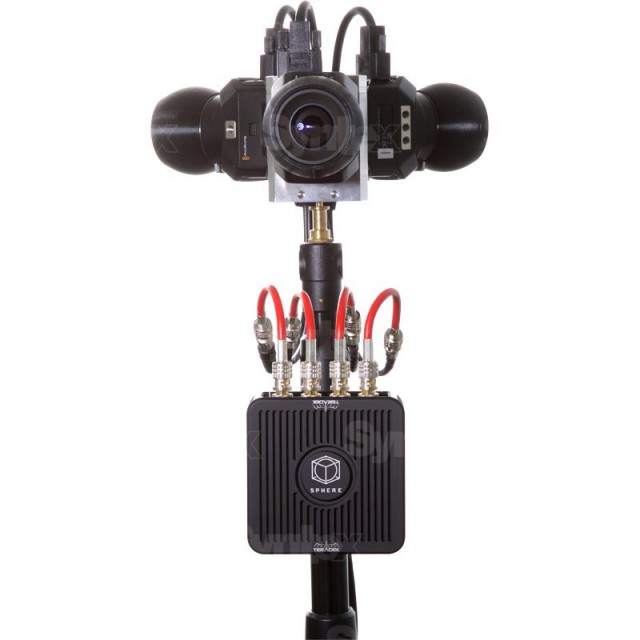

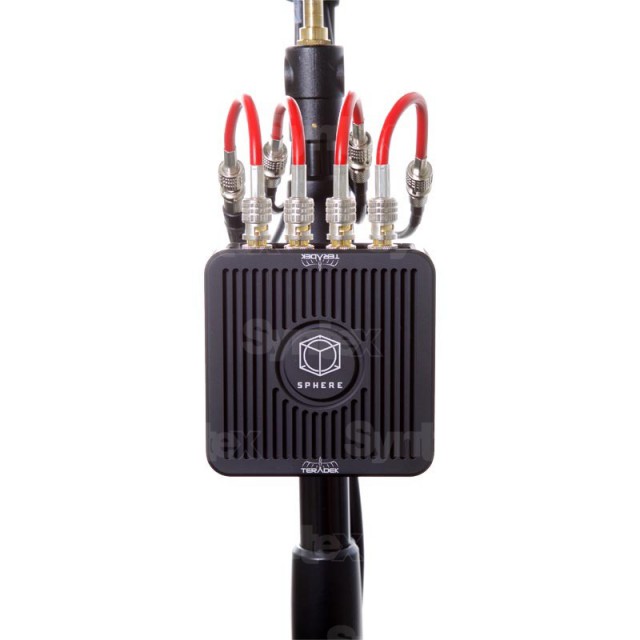

Teradek's Sphere is a real-time monitoring and streaming solution for multicamera 360° productions. Compatible with nearly any SDI camera, Sphere accepts up to four camera output signals up to 1080p at 30 fps, and stitches the video files together for live viewing on an iPad. Utilizing an iOS-based stitching…
Call us for pricing information
Availability
on request
Product description
SPECIFICATIONS

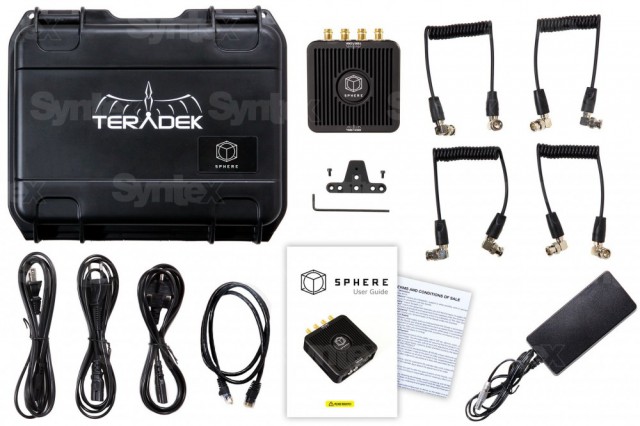

PACKAGE CONTENT
Teradek Sphere SDI Real-Time 360-Degree Monitoring and Streaming System
Manfrotto 2909 Super Clamp with 2907 Reversible Short Stud
Sphere Mounting Bracket
Ethernet Cable
AC Power Adapter
2 x Screw Socket Head Caps
Allen Wrench
4 x SDI Cables (30cm)
Hardshell Case
Product description

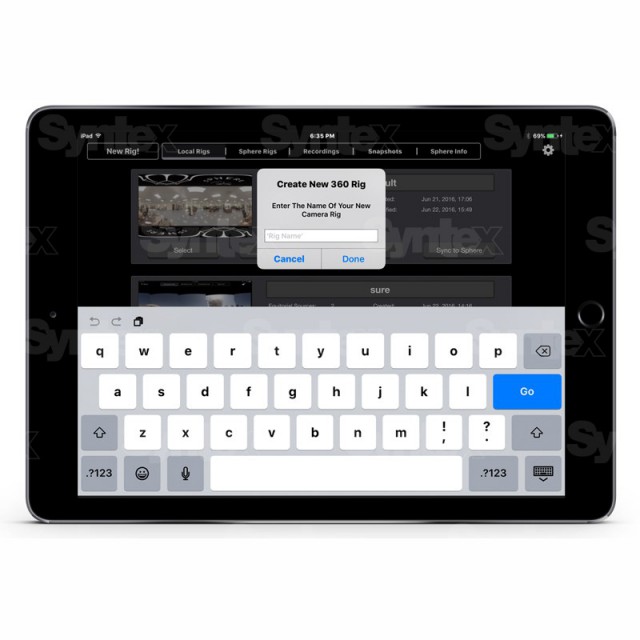

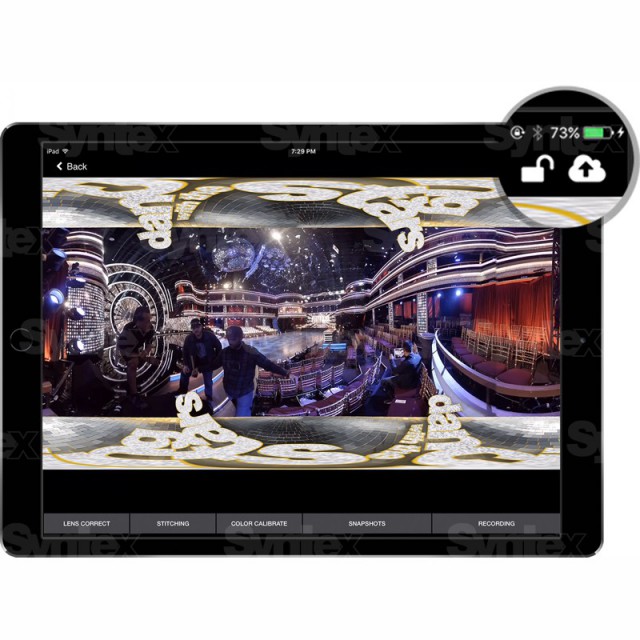

Teradek's Sphere is a real-time monitoring and streaming solution for multicamera 360° productions. Compatible with nearly any SDI camera, Sphere accepts up to four camera output signals up to 1080p at 30 fps, and stitches the video files together for live viewing on an iPad. Utilizing an iOS-based stitching engine, no separate PC is required to stitch together your footage, allowing for real-time monitoring in your choice of viewing modes—including rectilinear and panoramic—all while keeping your production mobile. With the included streaming license, the stitched video can then be simultaneously streamed directly to the web to any compatible 360° online video platform, including Wowza and YouTube.
Wireless and Internet Connectivity
Sphere connects to wireless access points and the Internet via a 10/100 Ethernet jack. To enhance the wireless range of your Sphere, Teradek recommends connecting the device to an Ubiquiti access point for a robust Wi-Fi signal up to several thousand feet.
Support for up to 8 Cameras
Should you need more than four cameras for your 360° production, a second Sphere can be daisy-chained using the device's 10/100 Ethernet port, extending the number of supported cameras to eight.
Redundant Power Inputs

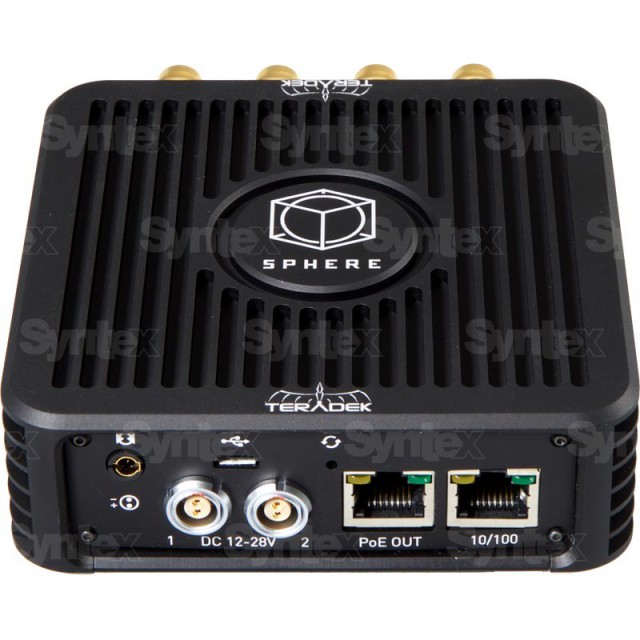

Dual two-pin LEMO power inputs are provided, offering redundancy in case one supply should fail.
PACKAGE CONTENT
SPECIFICATIONS
| Video Inputs | 4 x BNC, SDI |
| Supported Input Formats | 1080p 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25 fps 720p 50/59.94/60 fps 480p 59.94 fps 576p 50 fps |
| Color Spaces Supported | RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2 |
| Video Codec | Compression Algorithm: Baseline, Main, and High Profile H.264 Main and Baseline profiles Bit Rate: 250 Kbps to 10 Mbps |
| Audio Input | 1 x Analog Line or Mic in, adjustable gain 4 x Embedded HDMI audio input |
| Audio Compression | Audio Compression: AAC-LC, MPEG Layer 2 |
| Network Ports | 2 x Ethernet 10/100 |
| Protocol Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Transport Protocols: TDS (supported by iOS app only for now) |
| Power Input Connector | 2 x 2-pin LEMO |
| Power Consumption | 12 W (up to 20 W for USB; up to 15 W for PoE) |
| Auxiliary Power Input | 12 to 28 VDC |
| Power Output | 4 x USB |
| Dimensions | 4.33 x 4.33 x 1.36" / 11 x 11 x 3.45 cm |
WE RECOMMEND
The Teradek Sphere is a high-performance system for stitching and streaming 360° video, which requires a robust power supply via standardized 2-pin connectors to ensure reliable operation. Given the demands of multi-camera productions, it is essential to provide flexible power options from professional V-Mount or Sony L-Series batteries and to maintain signal stability using backup antennas.
Power Cables - A wide selection of cables with 2-pin connectors for connecting to various power sources, such as D-Tap (P-Tap) or XLR outputs.
- Teradek 2-pin to P-tap Cable, 45cm
- Teradek XLR to 2-pin Cable, 45 cm
- Teradek 2-pin to Power Tap Cable, 90 cm
- Teradek 2-pin to P-tap Cable, 22 cm
- Teradek 2-pin to XLR Cable, 90 cm
- Teradek 2-pin to Barrel Power Cable, 30 cm
- Teradek 2-pin to P-tap Cable, 27 cm
- Teradek 2-pin to Right-Angle Barrel Power Cable (45 cm) for Teradek Ace
Battery Adapters and Plates - Plates that allow the Sphere device to be powered by professional V-Mount or Sony L-Series batteries.
- TERADEK BIT-757 Sony L Series Battery Plate for BOLT
- TERADEK BOLT LX/TX Single V-Mount Battery Plate 14.4V
- TERADEK BIT-819 V-mount Battery Plate (female) for Bolt XT 1000/3000 RX
- TERADEK BIT-791 Bolt XT Dual V-Mount Battery Plate 14.4V Cable (approx. 27 cm)
Antennas and Wireless Accessories - Replacement and specialized antennas to ensure stable wireless transmission in the 5 GHz band.
Parameters
| Manufacturer: | Teradek |
| Category: | Wireless video transmission |
Main parameters
| Video input | BNC - SDI |
| Input wireless video | SDI |
