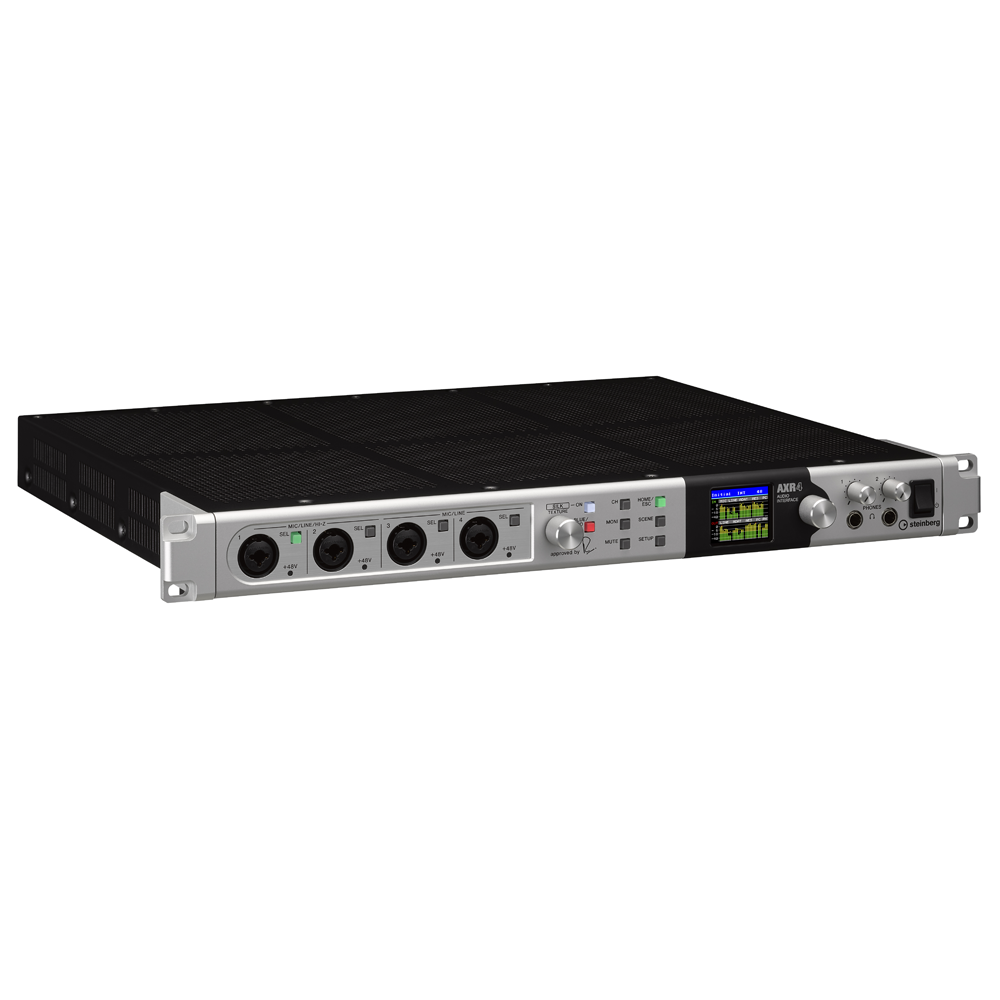

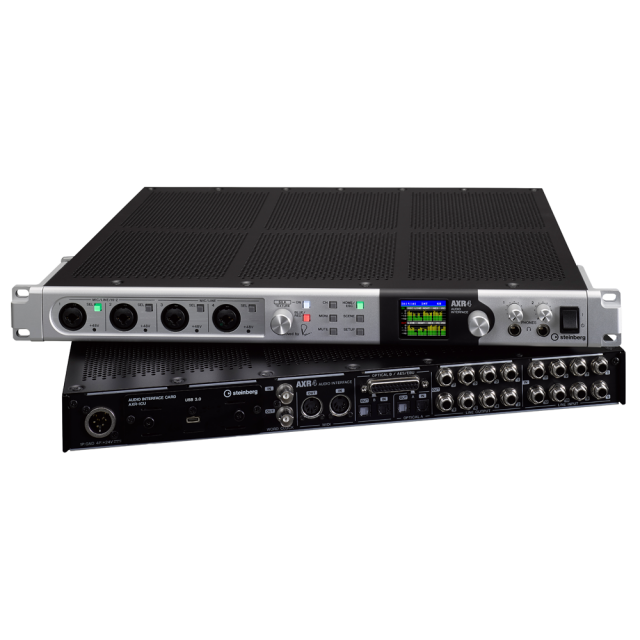

Steinberg AXR4U

Steinberg AXR4U - USB 3.1 Audio Interface with 32-bit and hybrid microphone preamps featuring Rupert Neve Designs Silk.

More information

2 480.34 € with VAT 2 049.87 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Steinberg AXR4U - USB 3.1 Audio Interface with 32-bit and hybrid microphone preamps featuring Rupert Neve Designs Silk.

With the AXR4U, Steinberg introduces a new high-end professional audio interface, featuring switchable Rupert Neve Designs SILK emulation, 32-bit resolution and a sample rate of up to 384 kHz. USB 3.1 Gen 1 SuperSpeed standard, which provides fast, reliable and seamless connectivity to Mac and PC computers via a USB Type-C connector throughput necessary for professional level recording, while ultra-low latency drivers ensure that recording and monitoring are optimized for any use case. A comprehensive range of input/output options, robust build quality and the intelligent dspMixFx AXR application make AXR interfaces the logical choice for professionals.

Features:

  • 28x24 USB 3.1 audio interface
  • 32-bit integer / 384 kHz recording and playback
  • AXR hybrid mic preamps with Rupert Neve Designs SILK
  • 28x24 full matrix mixer
  • Latency-free DSP-powered monitoring with REV-X reverb, Channel Strip, VCM compressor 276 and EQ 601, including VST 3 plug-in versions
  • Plenty of I/O ports like 2 ADAT, S/PDIF, AES/EBU, MIDI and Word clock
  • SSPLL ultra-low jitter reduction
  • Stack support for up to 3 units
  • New custom panel for perfect integration into Cubase
  • Bundled Cubase AI fully supports 32-bit integer format



PACKAGE CONTENT

  • AXR4U hardware unit
  • AC adaptor (PA-700 or equivalent)
  • Setup Guide (brochure)
  • Cubase AI download access code paper sheet
  • Essential product license information Advanced FX Suite
  • AXR4U caution paper sheet

SPECIFICATIONS

  • 32-Bit integer / 384 kHz recording and playback

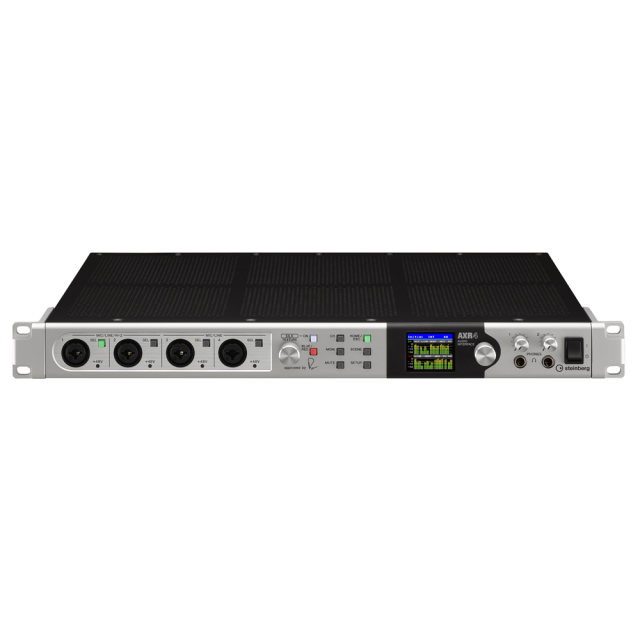

  • 4 AXR Hybrid Microphone Preamplifier with Rupert Neve Designs SILK Circuit Emulation
  • SSPLL technology for extremely low jitter values

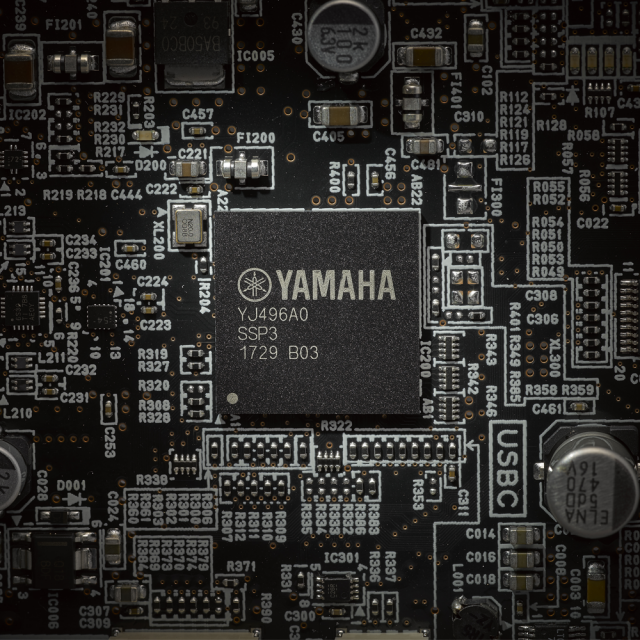

  • DSPX chip and dspMixFX technology for latency-free monitoring with DSP-based effects
  • 28 x 24 Matrix mixer
  • 48V Phantom power

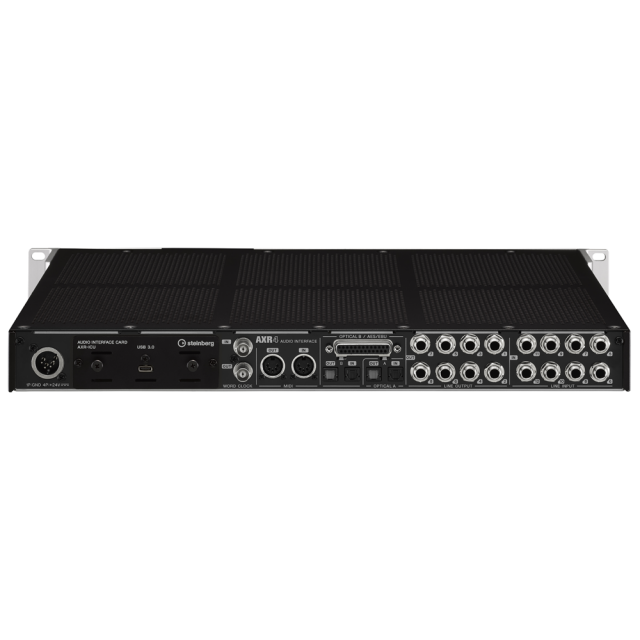

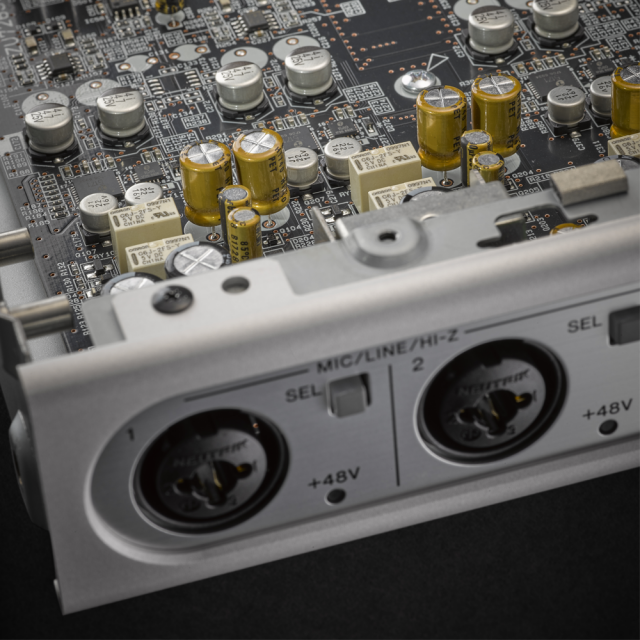

  • 2 Mic / Line / Instrument combo inputs: 6.3 mm XLR / jack
  • 2 Mic / Line combo inputs: 6.3 mm XLR / jack
  • 8 Line inputs: 6.3 mm Jack
  • 8 Line outputs: 6.3 mm Jack
  • 2 ADAT / S/PDIF inputs and outputs
  • AES/EBU Sub-D25
  • 2 Stereo headphone outputs: 6.3 mm Jack
  • MIDI input and output
  • USB 3.1 Type-C connector
  • BNC word clock input and output
  • LCD
  • Power supply connection

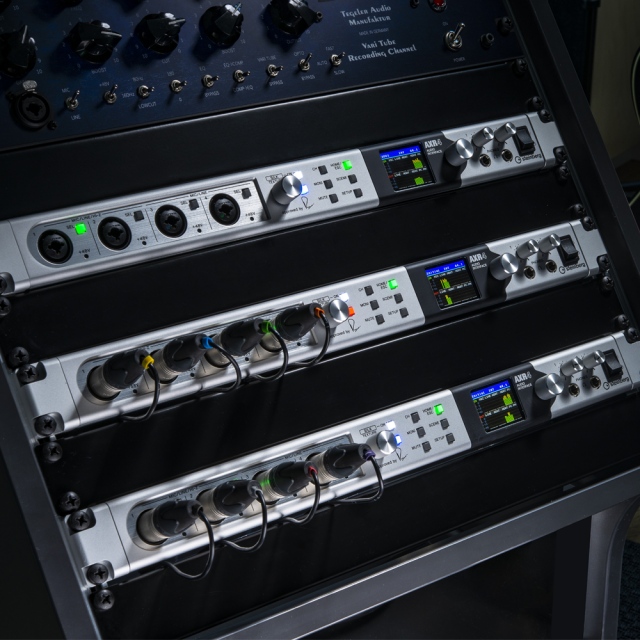

  • Up to three AXR4 cascadable
  • Design: 19"/1 U
  • Dimensions (W x H x D): 480 x 45 x 378 mm
  • Weight: 4.6 kg
  • Includes Cubase AI version with full 32-bit support
