3 Legged Thing AirHead Cine Arca-Swiss lever tripod head

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

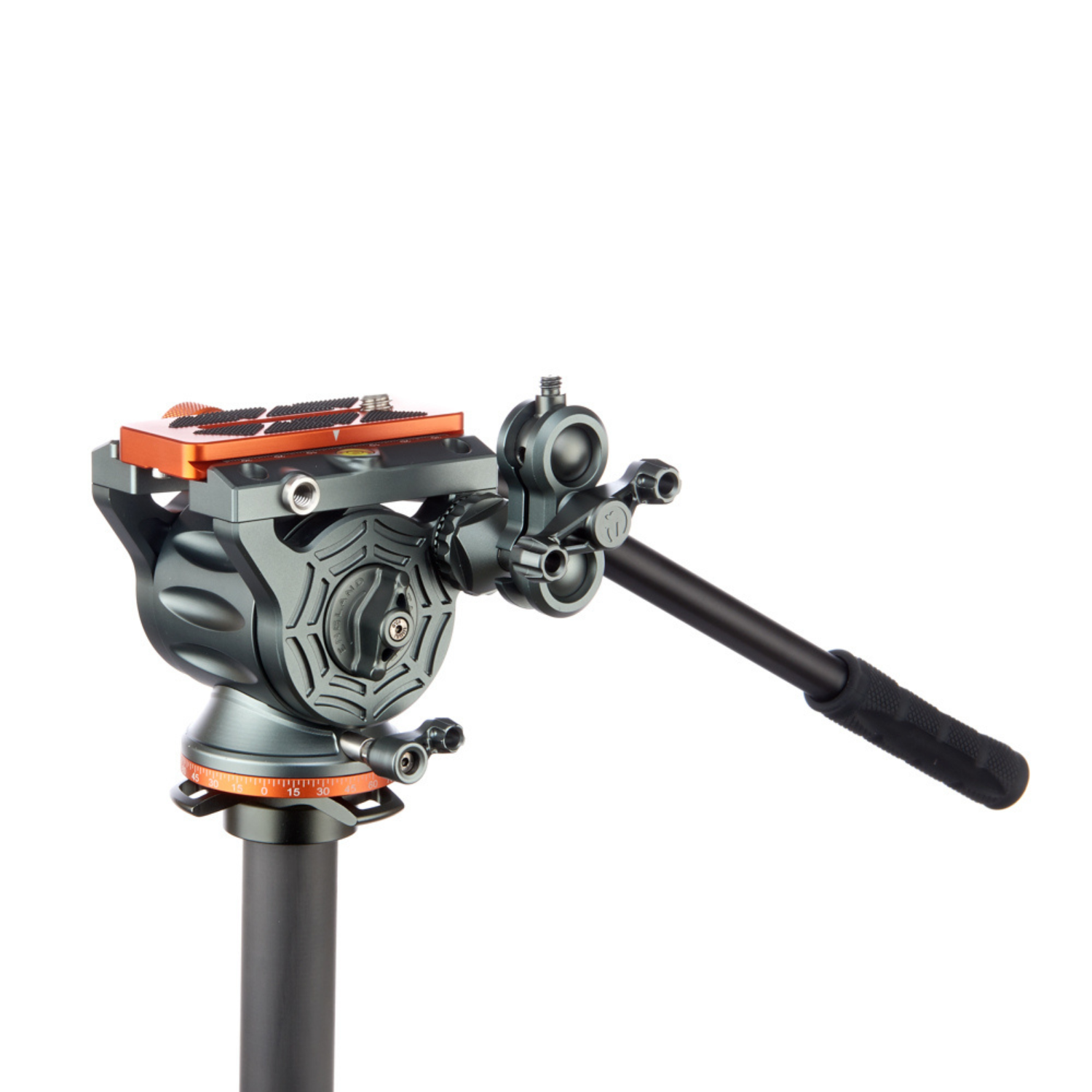

Ball video head with quick release plate, Arca-Swiss clamp, 1/4" and 3/8" threads for camera mounting, suitable for CSC/DSLR cameras, microphones and other devices, adjustable tilting mechanism, base swivels 361°. Grey and orange.

AirHed Cine Arca is the first dedicated video head from 3 Legged Thing that any amateur or professional videographer or photographer will appreciate. The precision milled aerospace magnesium alloy casting features a solid and very distinctive design that slightly evokes the appearance of a spider web from the insect kingdom. You can easily attach a CSC/DSLR camera or other equipment to this head with 1/4" and 3/8" screws, when it offers a solid load capacity of up to 10 kg. The top of the board is fitted with rubberised pads that effectively prevent the camera from slipping off the board, thus minimising the risk of it falling off and being damaged as a result.

Furthermore, the head has an adjustable tilting mechanism to allow smooth movement. This mechanism can then be controlled either straight ahead or by the included panning arm, which can be mounted on either side of the head for both right- and left-handed holding. The head has a friction control for the tilting mechanism, a knurled clamping knob for a better grip, a lever effect and a knurled base rotatable a full 361° which can be locked as required. This makes the head ideal for both horizontal and vertical photography, which you'll especially appreciate when shooting a variety of buildings, the sky or a large group of people.

Large knobs control pan and orbit rotations, and a smaller knob secures the Arca Swiss locking plate for fast and silky smooth operation. The ergonomic 2-degree bubble grip ensures the tripod can be used even in inclement weather, so you don't have to worry too much about the weather forecast. The head side includes a 1/4"-20 stainless steel thread for attaching accessories such as various articulating arms and more, and there are built-in spirit levels in the clamp and base for highly accurate and extremely level shots in any situation. The AirHed Cine Arca can then be purchased separately or as part of a package with basic tripods such as the Mike or Jay.

PACKAGE CONTENT

Package Contents

  • 1x 3LT AirHed Cine Arca lever head
  • 1x quick release plate with Arca-Swiss
  • 1x panning arm for right or left hand
  • 1x premium bag for ball head

SPECIFICATIONS

Specifications
Brand: 3 Legged Thing
Series: AirHed
Model: Cine Arca
PN: AHCINE-A
Designation: tripod head

Head
Head type: ball head, lever head
Accessory mounting screw: 1x 1/4"-20 Male
Camera mounting screw: 1x 1/4"-20 Male with guide pin, 1x 3/8"-16 Male
Quick release plate: QR
Quick release plate type: Arca Swiss
Load capacity: 10 kg
Base: flat
Base width: 65 mm
Base screw: 1x 3/8"-16 Female
Tilt range: 90° forward, 75° backward
Total tilt range: 165°
Tilt range: 360°
Balancing plate reach: up to 8.99 cm
Ergonomic bubble grip: 2-stage

Physical Features
Material: aerospace grade magnesium alloy, stainless steel
Color: grey and orange
Net Weight: 737 g
Package Weight: 1.5 kg
Package Dimensions (W x H x D): 21 x 37.8 x 12 cm

Parameters

Parameters

Manufacturer: 3 LEGGED THING
Category: Heads
