Sennheiser Mikroportová sada digitální - nástrojová s kabelem Ci1, 552 - 607,8 MHz, GA3

The EW-D CI1 SET (R4-9) is a digital wireless instrument system for guitar and other instruments with a 6.3 mm output. It includes the EW-D EM rack receiver, a robust EW-D SK bodypack transmitter and the CI 1 instrument cable. The R4-9 version operates across 552–607.8 MHz within Sennheiser Evolution Wireless Digital.

More information

Call us for pricing information
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The EW-D CI1 SET (R4-9) is a digital wireless instrument system for guitar and other instruments with a 6.3 mm output. It includes the EW-D EM rack receiver, a robust EW-D SK bodypack transmitter and the CI 1 instrument cable. The R4-9 version operates across 552–607.8 MHz within Sennheiser Evolution Wireless Digital.

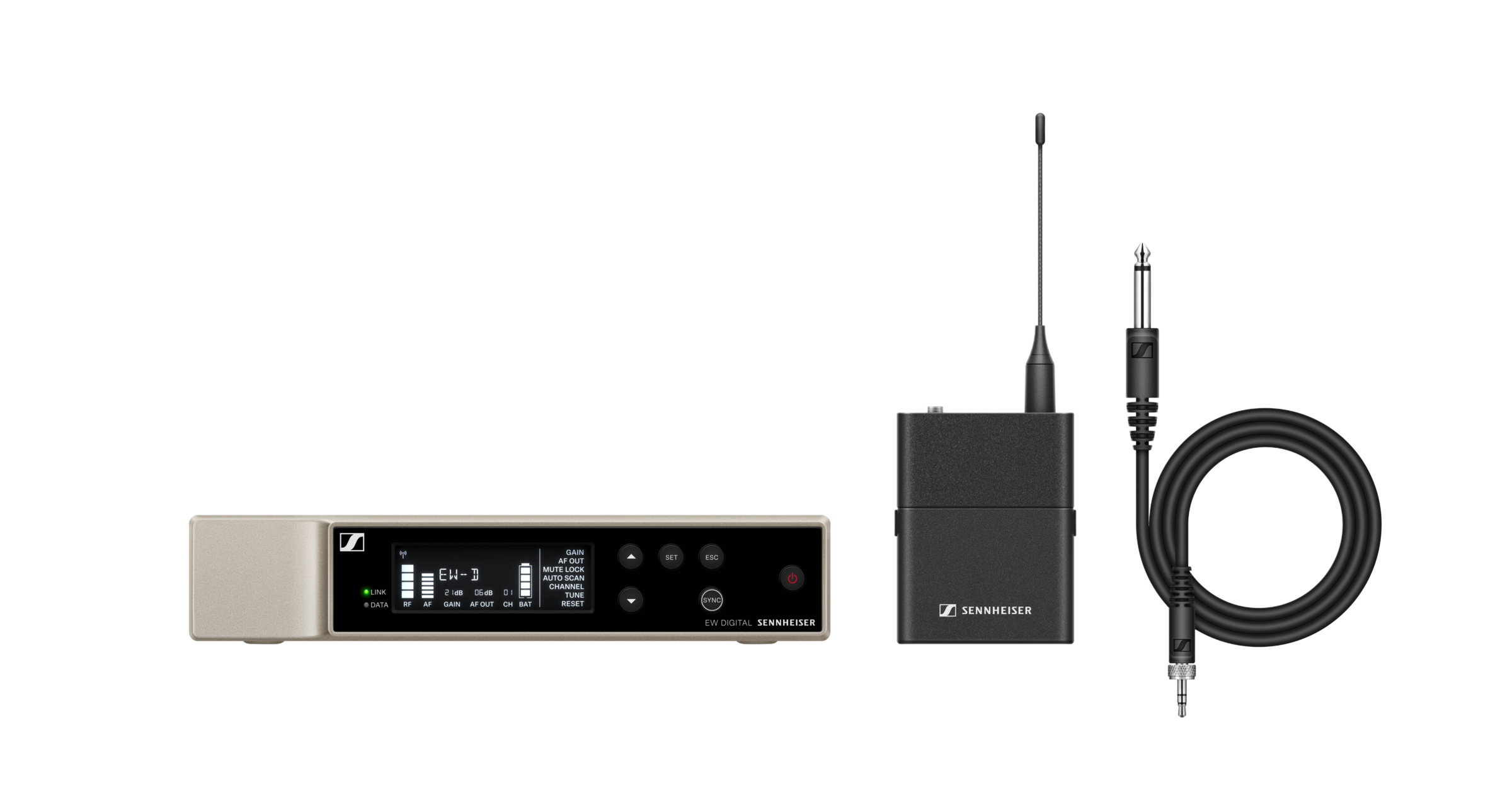

Sennheiser EW-D CI1 SET R4-9 digital instrument set

Digital wireless for instruments

The complete EW-D CI1 set combines a rack receiver, bodypack transmitter and CI 1 cable for everyday stage use. Automated pairing and the EW-D Smart Assist app simplify setup and control.

Digital UHF wireless reduces noise, interference and static bursts. The R4-9 band provides 56 MHz bandwidth, up to 2,240 selectable frequencies and up to 90 channels; the transmitter delivers a 134 dB dynamic range. An optional BA 70 rechargeable battery supports up to 12 hours of operation, or up to 8 hours with AA cells.

PACKAGE CONTENT

  • EW-D EM (R4-9) rack receiver ×1
  • EW-D SK (R4-9) bodypack transmitter ×1
  • CI 1 instrument cable ×1
  • Antennas ×2
  • Power supply ×1
  • GA3 rack kit ×1
  • Rubber feet ×4
  • Quick guide and safety guide ×1

SPECIFICATIONS

  • Frequency range: 552–607.8 MHz
  • Bandwidth: 56 MHz
  • Selectable frequencies: up to 2,240
  • Maximum channels: up to 90
  • Latency: 1.9 ms
  • Transmitter dynamic range: 134 dB
  • Transmitter power: BA 70 Li-ion or 2× AA
  • Transmitter operating time: up to 12 h with BA 70; up to 8 h with AA
  • Package dimensions: 212 × 44 × 189 mm
Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandUHF
Number of channels1
