Sachtler System FSB 4 75/2 CF GS

When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 fluid head doesn’t mean you have to compromise on performance. It gives you rapid weight compensation for payloads of up to 4 kg, while the Sideload mechanism means mounting handheld cameras and DSLRs can be done from the side. Being able to work quickly and efficiently…

More information

Call us for pricing information
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

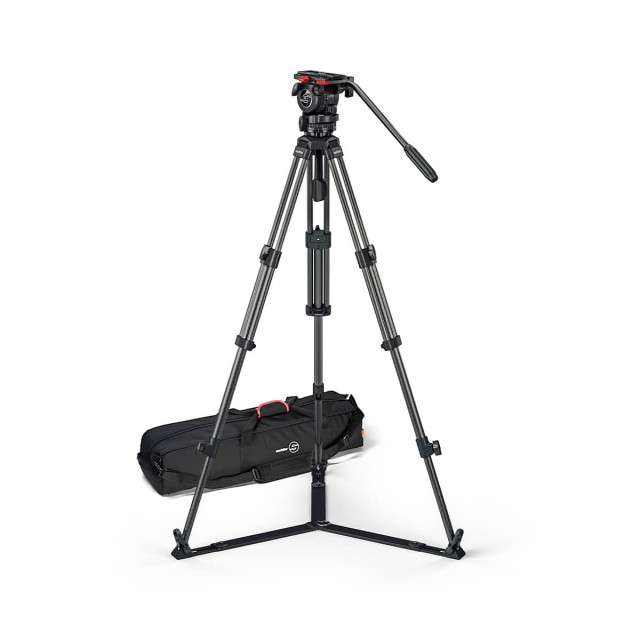

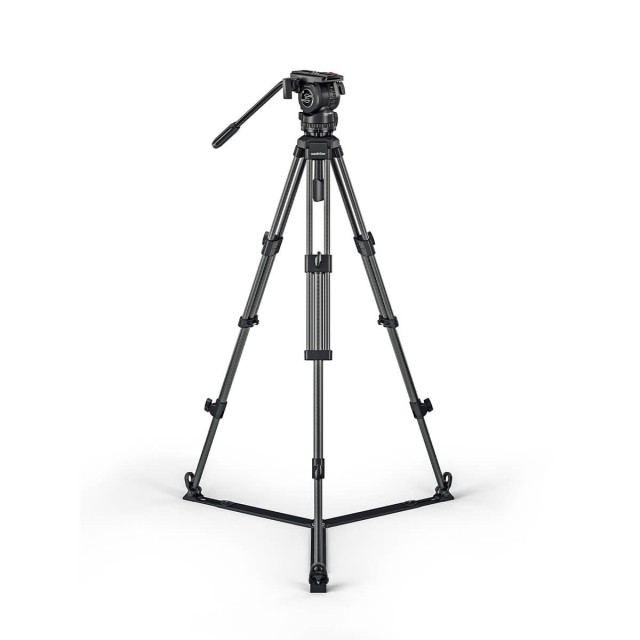

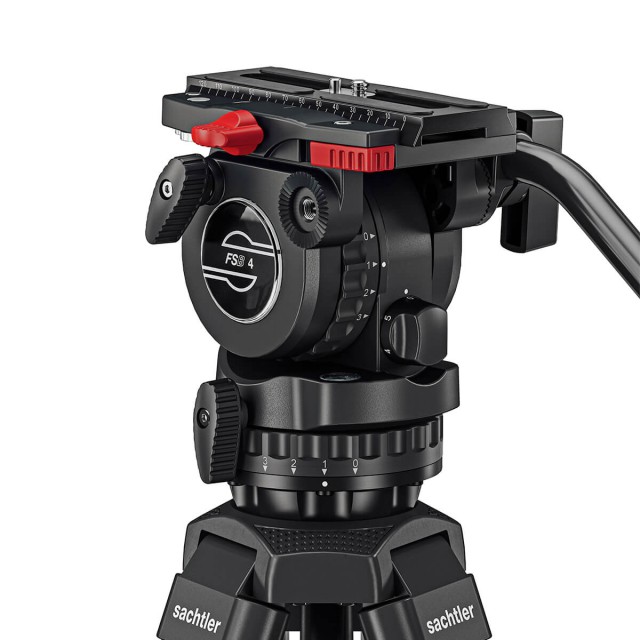

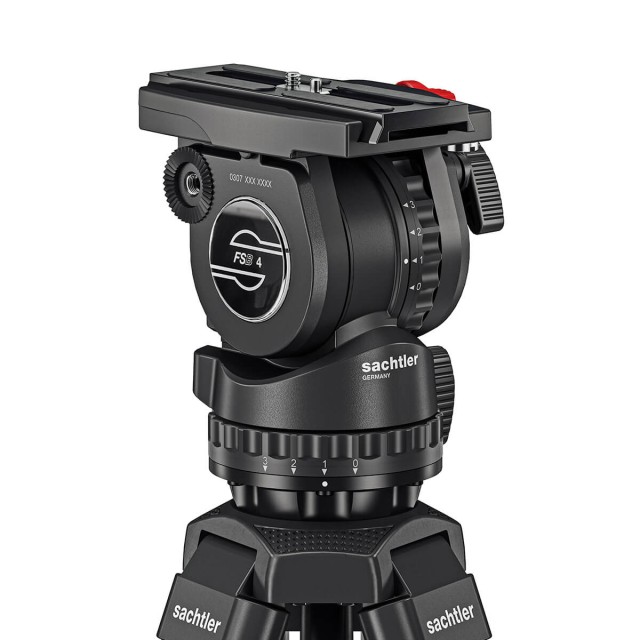

When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 fluid head doesn’t mean you have to compromise on performance. It gives you rapid weight compensation for payloads of up to 4 kg, while the Sideload mechanism means mounting handheld cameras and DSLRs can be done from the side. Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, Sachtler drag always gives smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results. Weighting in at just 4.8 kg, this Sachtler system with a carbon fibre tripod is perfect for ultra-light camcorders and DSLR cameras.

PACKAGE CONTENT

  • Ground spreader SP 75
  • FSB 4
  • Padded bag DV 75 S

SPECIFICATIONS

  • Range: FSB
  • Pan bar count: 1
  • Payload: 0 to 4 kg
  • Bowl size: 75 mm
  • Weight: 4.80 kg
  • Spreader type: Ground spreader
  • Material: Carbon Fibre
  • Transport length: 870 mm
  • Tripod stages: 2
  • Height with spreader: 0.58 to 1.73 m
  • Temperature range: -40 to 60 °C
  • Tilt range: 90° to -70°
  • Sliding range: 120 mm
  • Interface Compatibility: Sideload
  • Counterbalance: 5 + 0 counterbalance steps
  • Drag: 3 + 0 drag settings

WE RECOMMEND

The Sachtler System FSB 4 75/2 CF GS is a professional tripod system featuring a 75mm half-ball head and carbon fiber legs, designed for precise work with equipment weighing up to 4 kg. To maximize the potential of this system, we recommend accessories for transport, advanced balancing, and studio mobility.

Transport Bags and Cases - High-quality padded bags and sturdy cases ensure safe transport of the tripod system.

Mounting and balancing elements - Accessories for optimizing the center of gravity and quickly attaching the head to various surfaces.

Tripod Accessories - Components to increase stability on soft surfaces and facilitate movement indoors.

Parameters

Parameters

Manufacturer: Sachtler
Category: Tripods

Main parameters

Spacer typeBottom
