RGBlink streamZ

The RGBlink streamZ is an AI media workstation that captures, switches, records and streams video from up to four 4K sources in a single box. It edits the material with AI, stores it on 128 GB of internal storage with NAS functionality and distributes it to up to 30 platforms. It is controlled in a web browser, in the app or with the streamZ deck control panel.

One book-sized box replaces a computer running OBS, a recorder, a network drive and an editing program. Plug the cameras in directly, set up the stream in the web studio and let the AI turn the recorded material into short videos and copy.

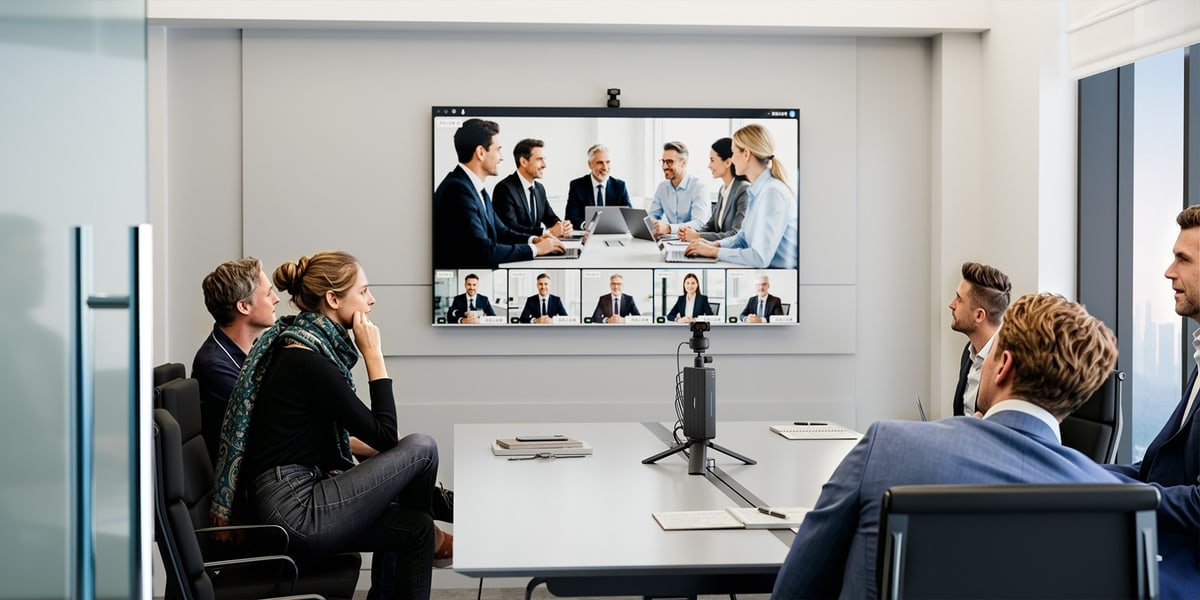

Four 4K sources

streamZ accepts up to four sources at once: the HDMI 2.0 input, two USB cameras using the UVC protocol and wireless casting from a phone (AirPlay/Miracast), or an IP stream (RTSP, RTMP, SRT). Each source can be recorded separately (ISO recording), so the edit has every angle, not just the programme that went out.

4K HDMI loop-through output

The signal from the HDMI 2.0 input (up to 3840 × 2160 at 60 Hz, HDCP 2.2) goes straight to another monitor via the 4K HDMI loop-through output, so you get the picture on two screens at once. The second HDMI 2.0 output carries the programme, and via USB-C the picture can go to a computer as a UVC webcam.

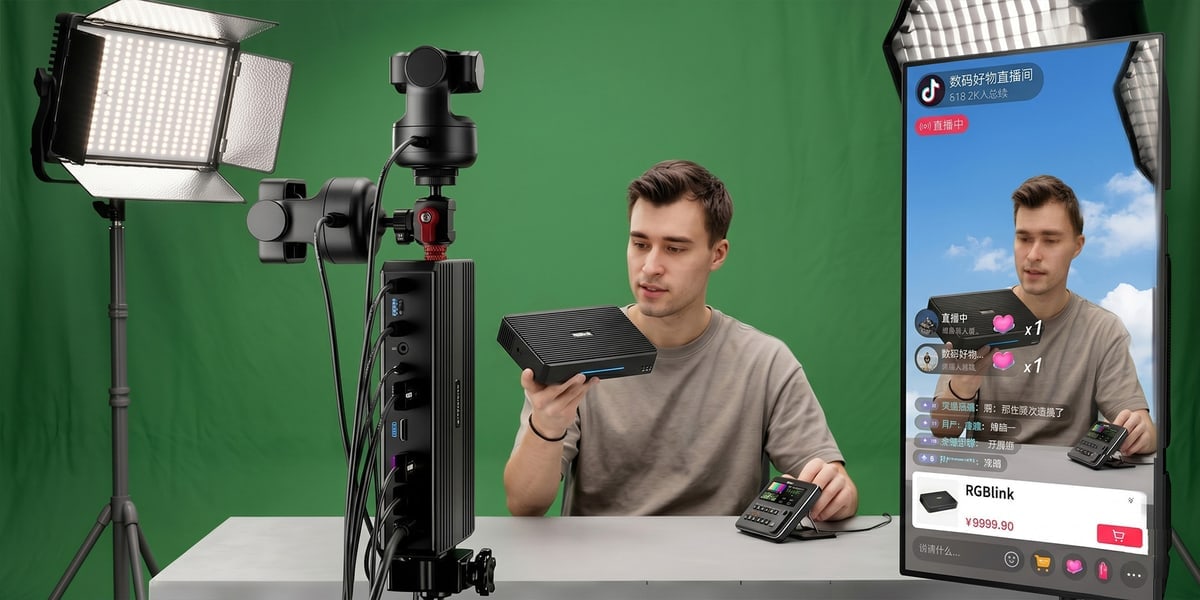

Web studio and chroma key

The built-in web studio with more than ten industry templates replaces OBS and the computer: scenes, overlays and video and audio playlists are set up in Chrome, Firefox or Edge, in the mobile app or in the cloud. Hardware green or blue screen keying works in real time, even in several areas of the frame at once.

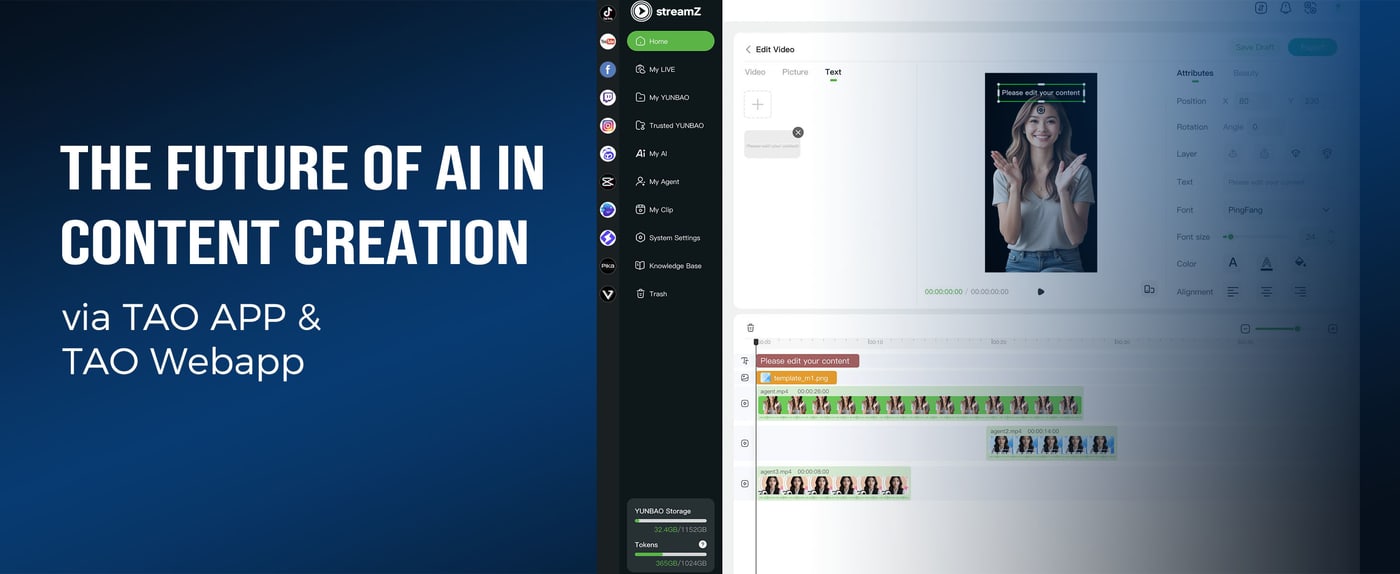

AI for content creation

The built-in AI tools write copy and scripts, create thumbnail images, digital avatar or AI presenter videos, meeting minutes or voice-over commentary. Finished material is edited and distributed in the TAO APP or TAO Webapp.

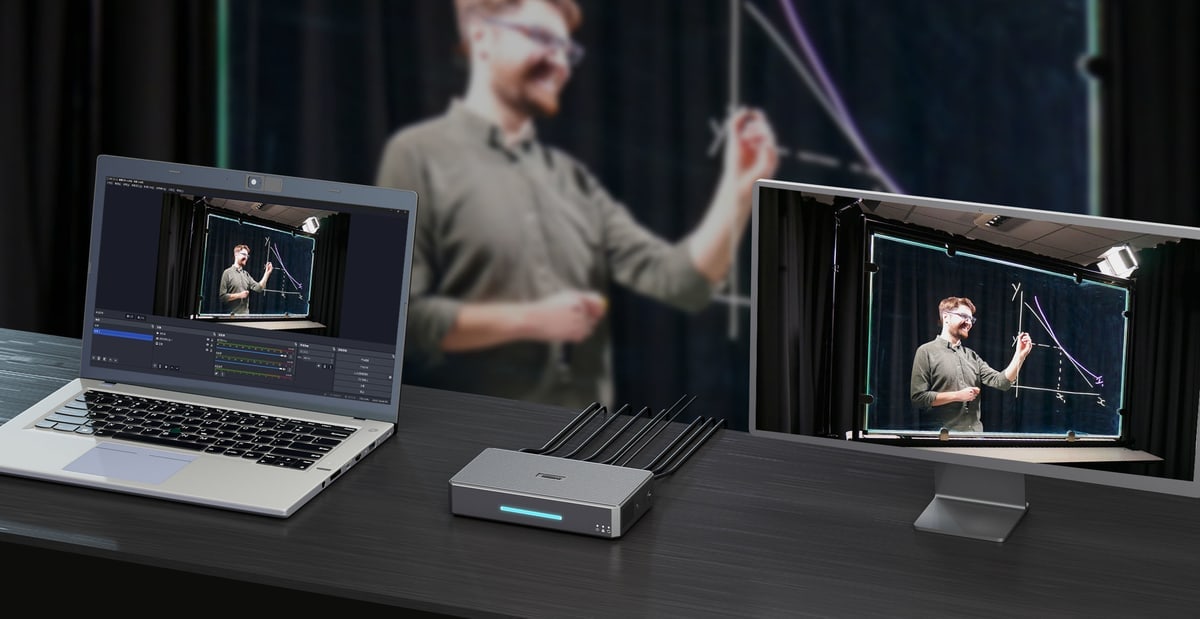

Streaming to up to 30 platforms

It sends four RTMP streams at once and distributes them via the cloud to up to 30 platforms. It encodes H.264 and H.265 up to 3840 × 2160 at 60 Hz and works with the HTTP, SRT, RTMP, RTSP and NDI protocols. It connects to the network by cable and over Wi-Fi 6, each interface with its own IP address.

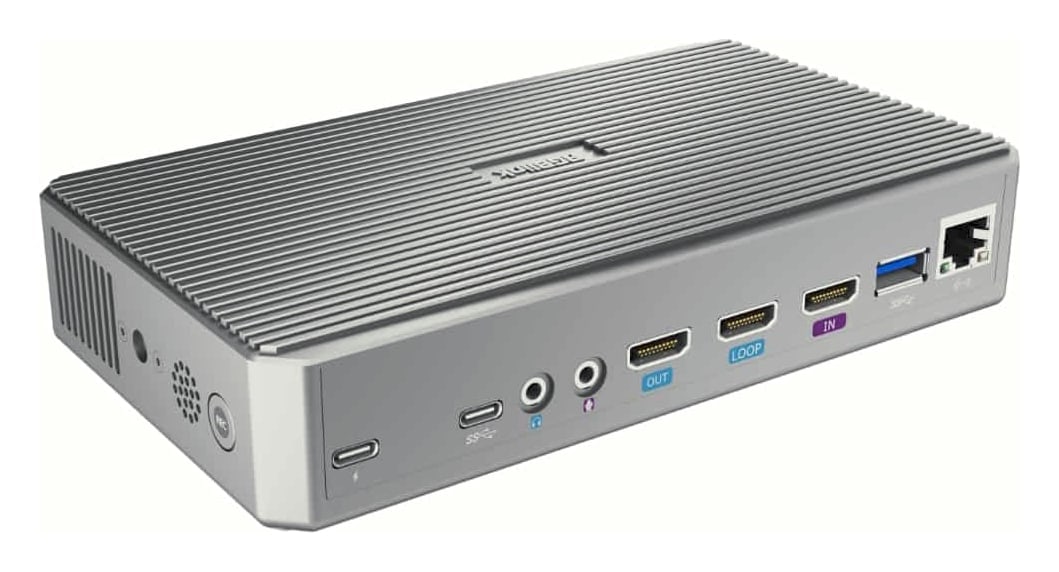

Storage and connections

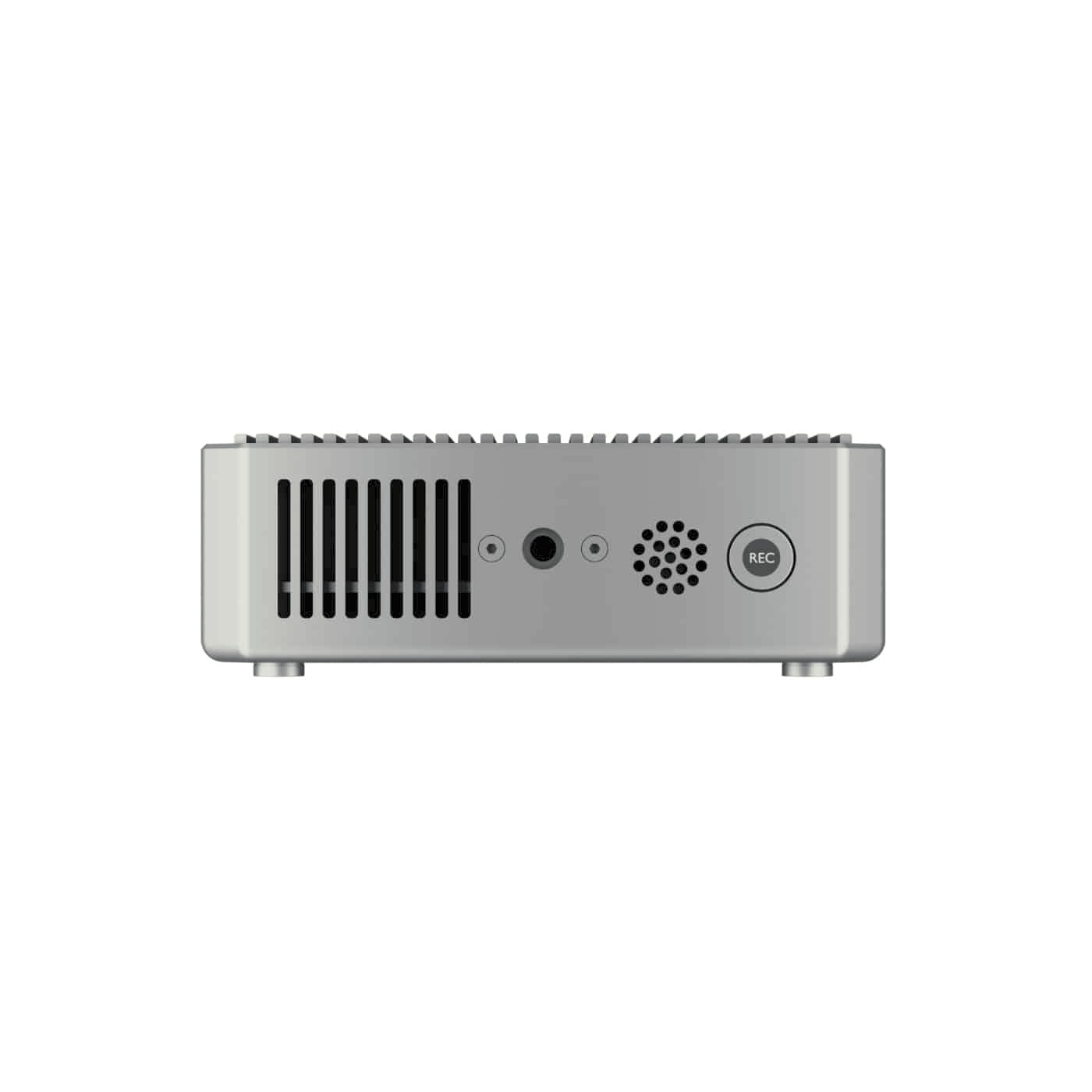

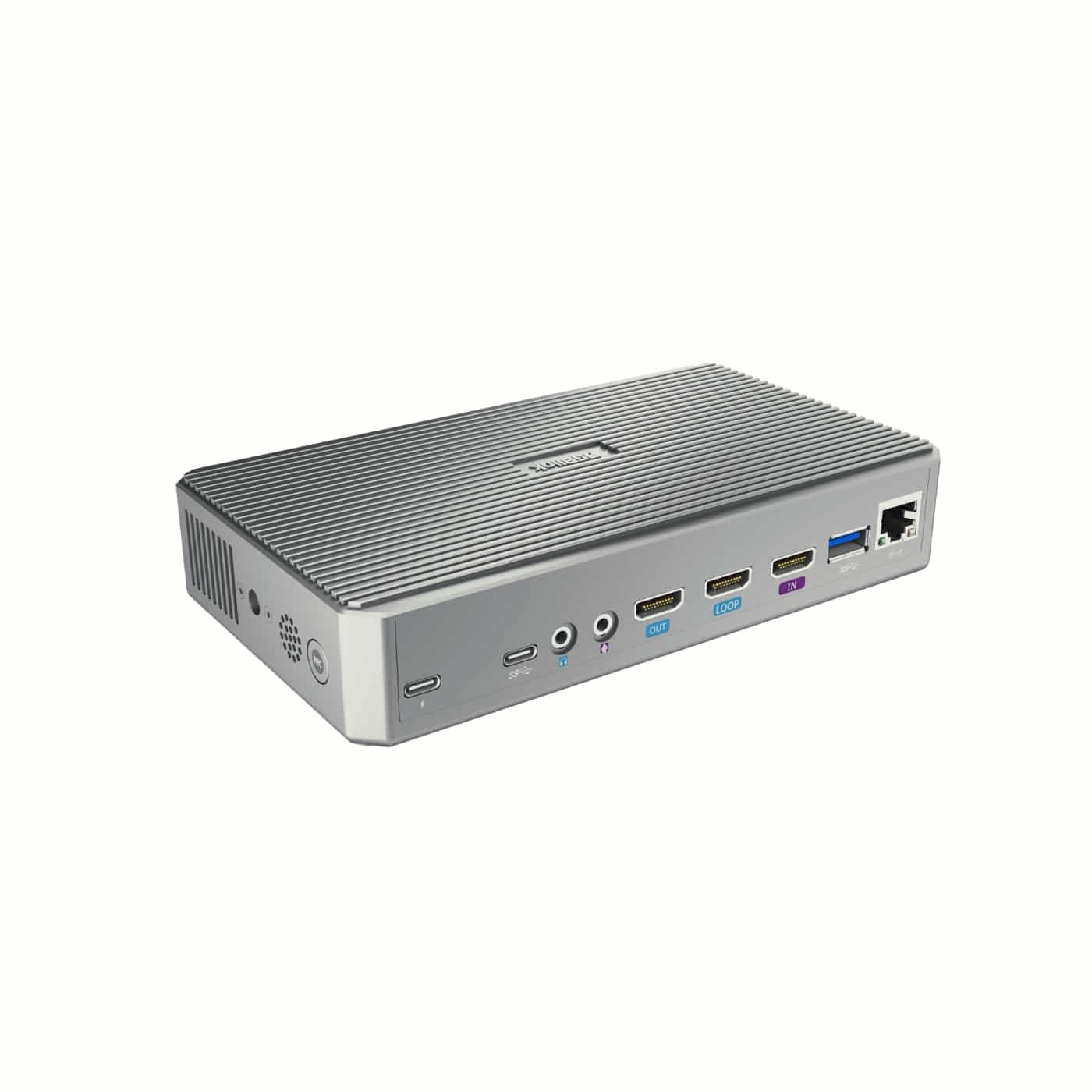

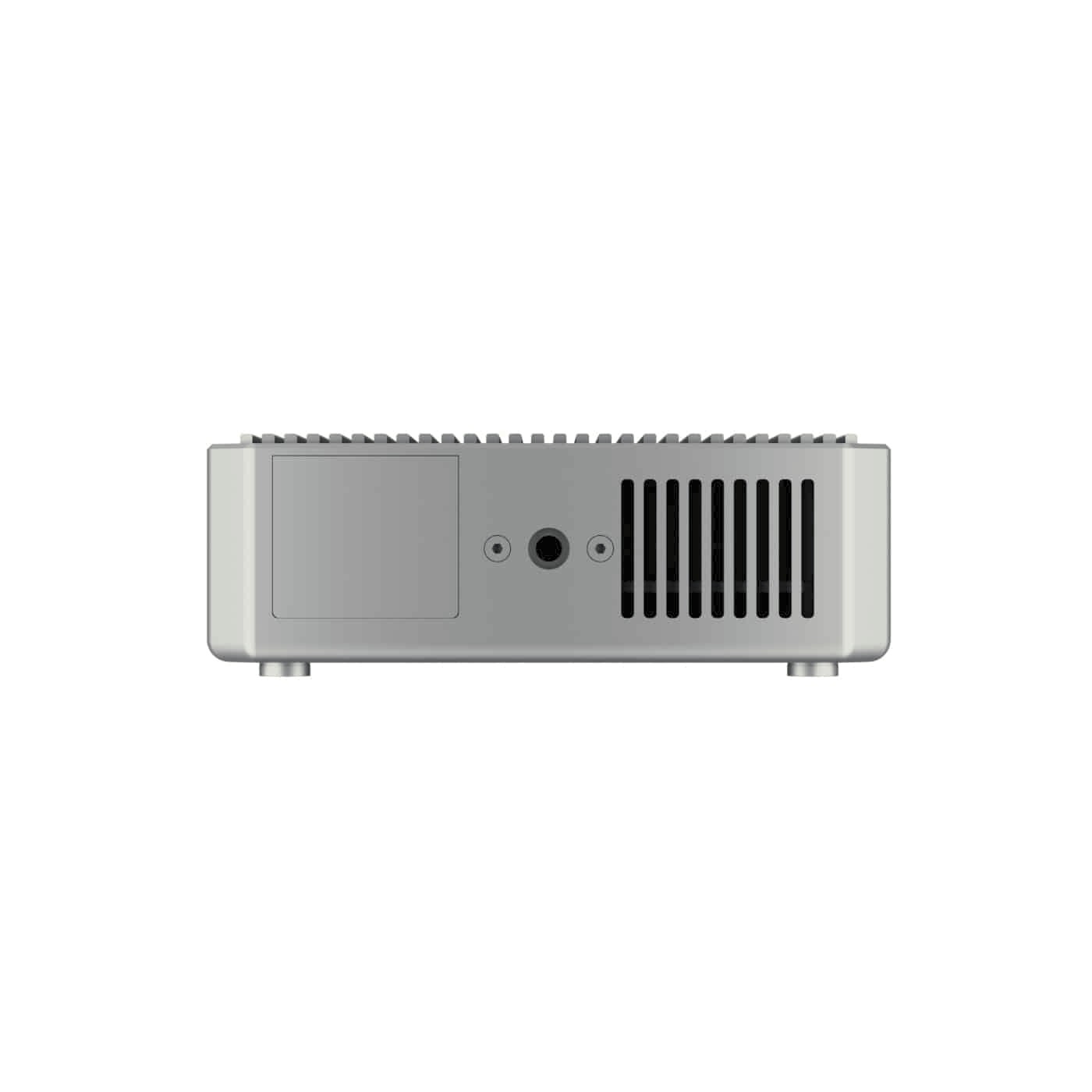

The 128 GB internal storage with NAS functionality can be expanded up to 16 TB via the M.2 NVMe interface. The unit has HDMI 2.0, USB-C and USB-A inputs for UVC cameras, two HDMI 2.0 outputs, a USB-C output, a 3.5 mm jack line input and output, an RJ45 port and a USB 3.0 port for external storage. A 1/4" thread on top and bottom takes a camera, a light or a tripod.

AI camera and streamZ

streamZ controls connected AI cameras, switches between them and builds picture-in-picture layouts. The AI camera follows the speaker on its own, so one person can handle a stream of a meeting or lecture.

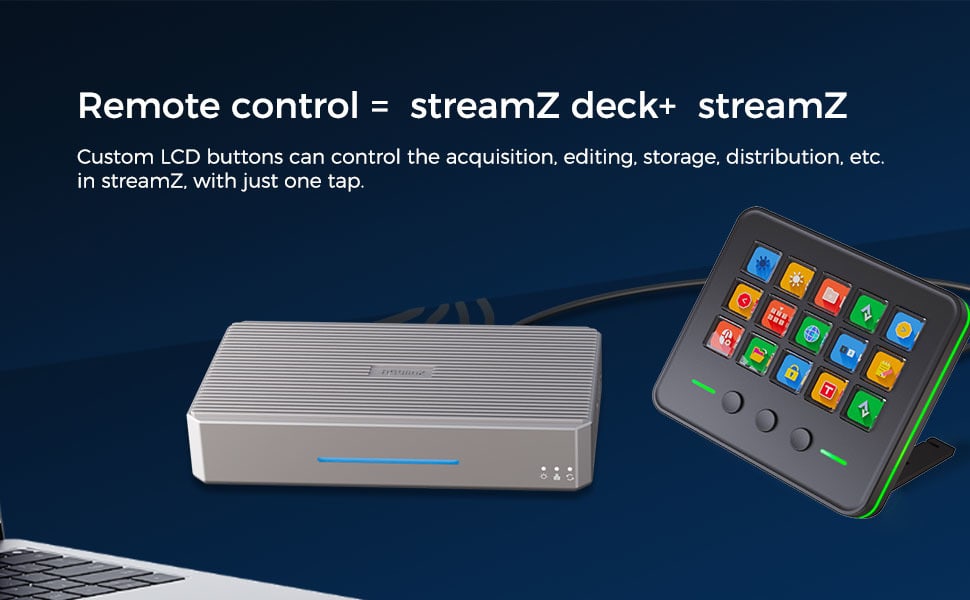

streamZ deck control panel

The streamZ deck control panel has 15 programmable LCD keys. One press switches the source or the picture-in-picture layout and starts or stops recording and streaming; the key layout is customised in the streamZ app.

More information

The RGBlink streamZ is a professional-grade streaming and recording solution that combines high-quality 4K video capture, AI-assisted automation, and cloud-enabled workflows into one compact unit. Supporting 4K60 HDMI input with loop-through and UVC output, it allows real-time streaming and recording while maintaining excellent visual fidelity. Its built-in 128GB storage, along with USB expansion support, provides flexible options for local recording and content management.

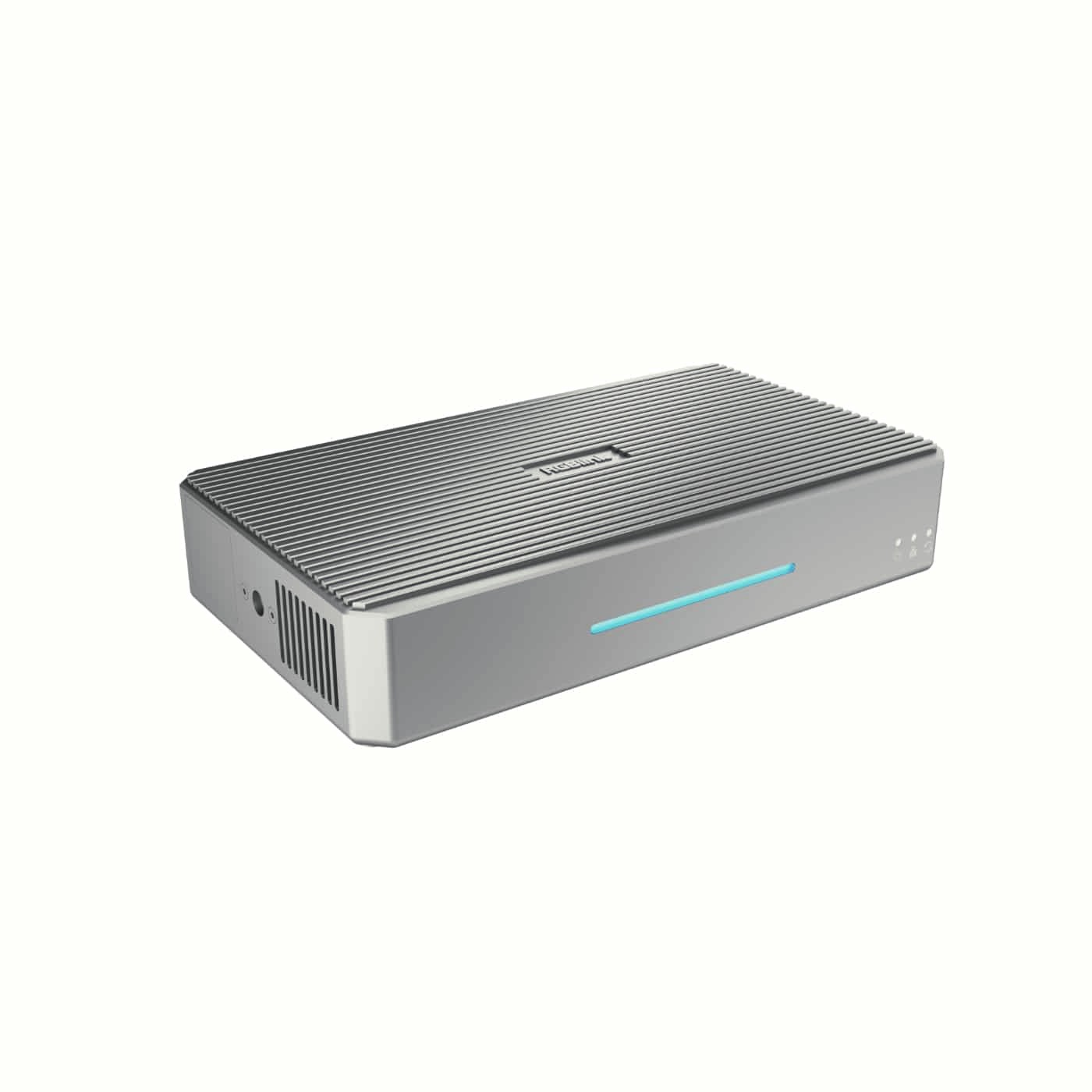

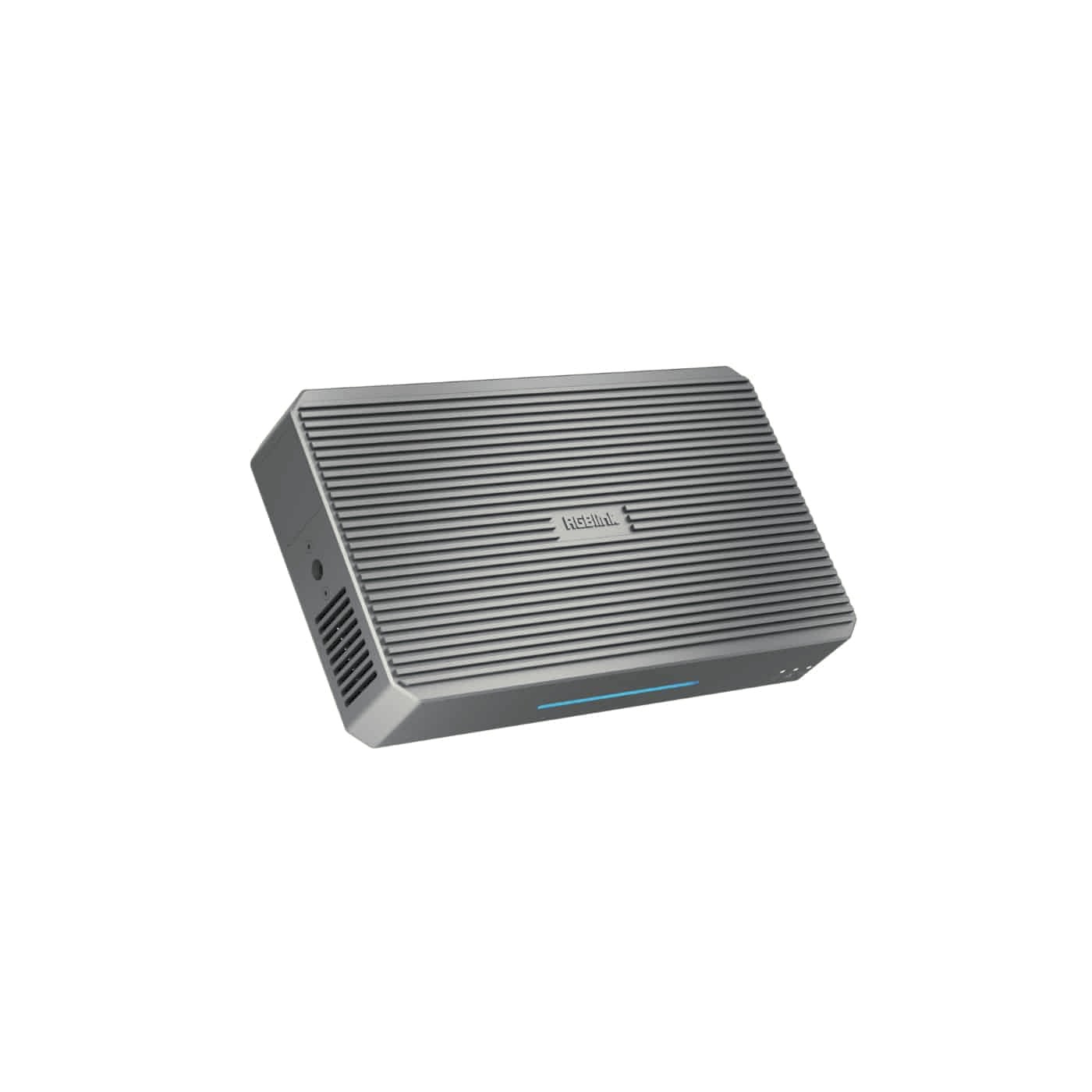

Designed for hybrid production environments, the streamZ supports major streaming protocols including RTMP, SRT, RTSP, and NDI, making it suitable for live events, studios, education, corporate streaming, and houses of worship. AI-powered content sync and automation significantly reduce post-production time, while military-grade encrypted file transfer ensures secure handling of media. Housed in a silent, fanless aluminum enclosure, the RGBlink streamZ is ideal for professional environments where reliability and low noise are critical.

Key features

• AI-powered 4K streaming and recording hub
• 4K60 HDMI capture with loop-through and UVC output
• 128GB built-in storage with USB expansion support
• Real-time streaming and recording
• Supports RTMP, SRT, RTSP, NDI, and HTTP protocols
• AI-assisted content generation and auto-sync
• Secure, encrypted cloud and local file transfer
• Audio mixing with line-level input and output
• Multiple I/O options: HDMI, USB-C, USB-A, LAN, 3.5mm audio
• Silent, fanless aluminum housing for professional use
