Nipros FR-S10 - Controller for use with Sony CBK-DCB01 Control Interface Unit

For Sony PMW-300K1/300K2/400K/EX-3/F3/F5

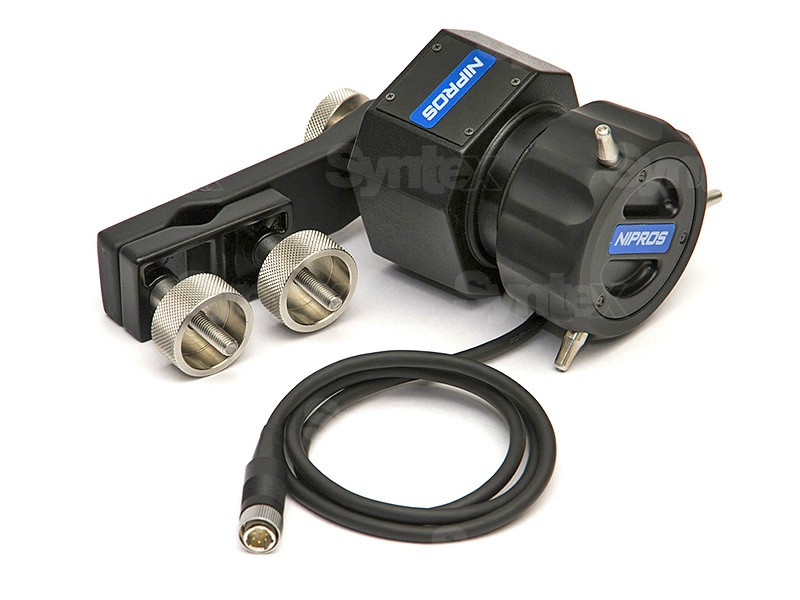

The FR-S10 Focus Controller for Sony CBK-DCB01 Control Interface from Nipros is designed to remotely control focus of select servo lenses mounted on Sony cameras such as the PMW-300K1/K2, 400K, EX-3, F3, and F5. It connects to the Sony CBK-DCB01 Control Interface Unit via a 6-pin cable, and features a focus adjustment wheel and a clamp bracket for mounting onto your tripod's pan handle.


Input/Output:
Applicable: Camera SONY Camera
6-pin connector cable: 6-pin, cable length 1 m: for connection to camera
FOCUS switch: Selects the rotating direction of FOCUS Ring
FOCUS ring: Rotating direction is reversible by Reverse Switch.


General:
Clamp bracket: For fixing FR-S10 on the pan handle of the tripod.
Outside Dimensions: approx. 73 x 73 x 96 mm (main body)(W x H x D)
Weight: approx. 0.5 kg (main body), approx. 0.45 kg (clamp bracket)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C

1. Exquisite touch-focus control can be realized.
2. Iris also can be remote controlled.
3. Supplied Accessory; Tripod attachment, 2.5? pin jack remote cable

Parameters

Parameters

Manufacturer: Nipros
Category: Zoom control
