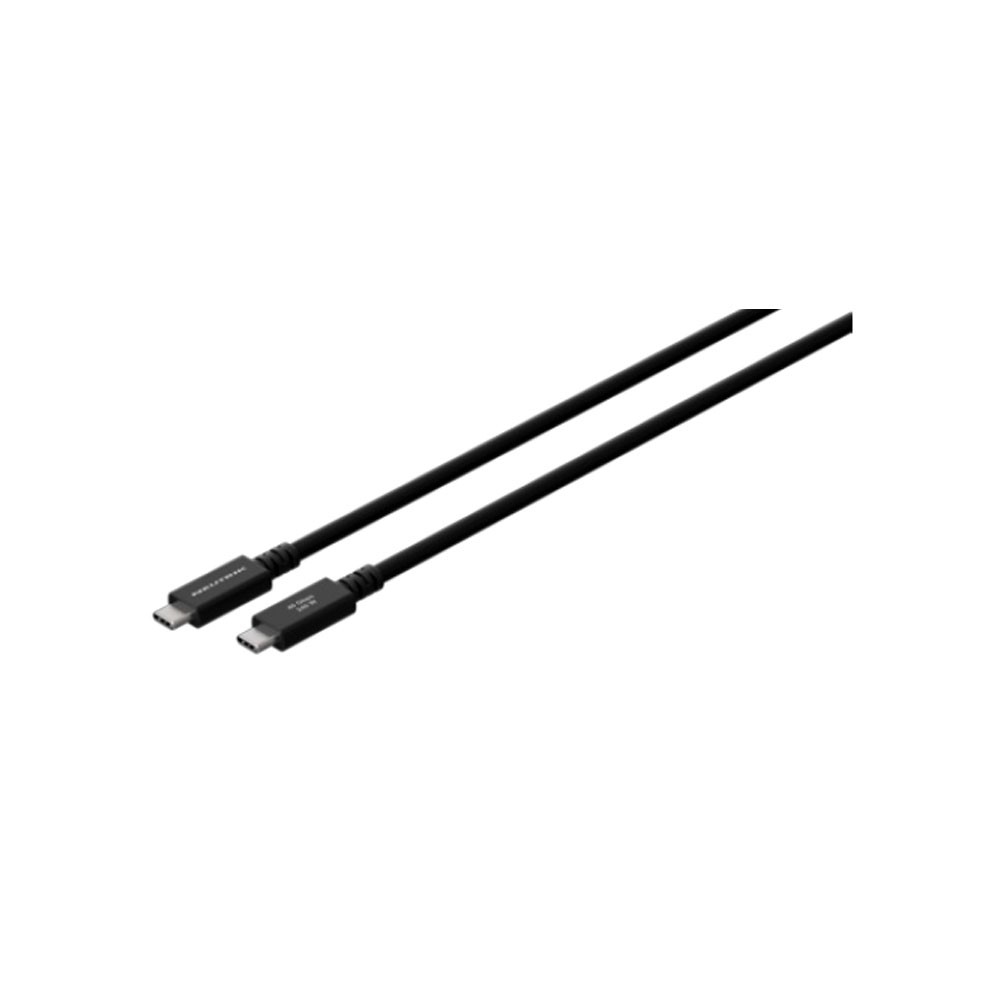

Neutrik USB Type C 40G Cable (m) (m) 0.8 m

The USB-IF certified NEUTRIK USB Type C 40G Cables are part of the essential DATA CABLES product group. These cables are for high performance data connectivity and power delivery in indoor environments allowing to transmit 40 Gbps and supply 240 W between devices.

Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.

Features & Benefits

• Thunderbolt 3 Compatibility
• Backward Compatiblity with USB 3.2 & USB 2.0
• 240 W (48 V / 5 A) Power Delivery according to USB PD 3.1
• 40 Gbps according to USB4 Gen 3x2
• USB-IF certified

Technical Information

Product
Title - NKUCP40-U0U0-*
Product group - essential DATA CABLES
Connection type - USB Type C
Description -  PLEASE NOTE: Preference will very depending on your additional hardware and software components & configurations.
Electrical
Rated current per contact - 5 A
Rated voltage - 48 V (30V)
Power delivery - 240 W acc. to USB PD 3.1
Transmission performance - 40 Gbps acc. to USB4 Gen 3x2
Insulation resistance - > 2 MΩ
Conductor resistance - < 3 Ω
Mechanical
Lifetime - 10'000 mating cycles
Locking device - Without locking device
Material
Contact plating - Pin: AU / Plug: NI
Contacts - Copper Alloy
Cable Jacket Type - TPE
Shell - PVC
Environmental
Flammability - V-0 acc. to UL94
Temperature range - -25°C to +60 °C
Standard compliance - USB-IF Certified
                                  Regulation (EU) 2011/65
                                  Regulation (EU) 2023/988
                                  Regulation (UK) 2016 No. 1101
Ingress protection class - IP20
