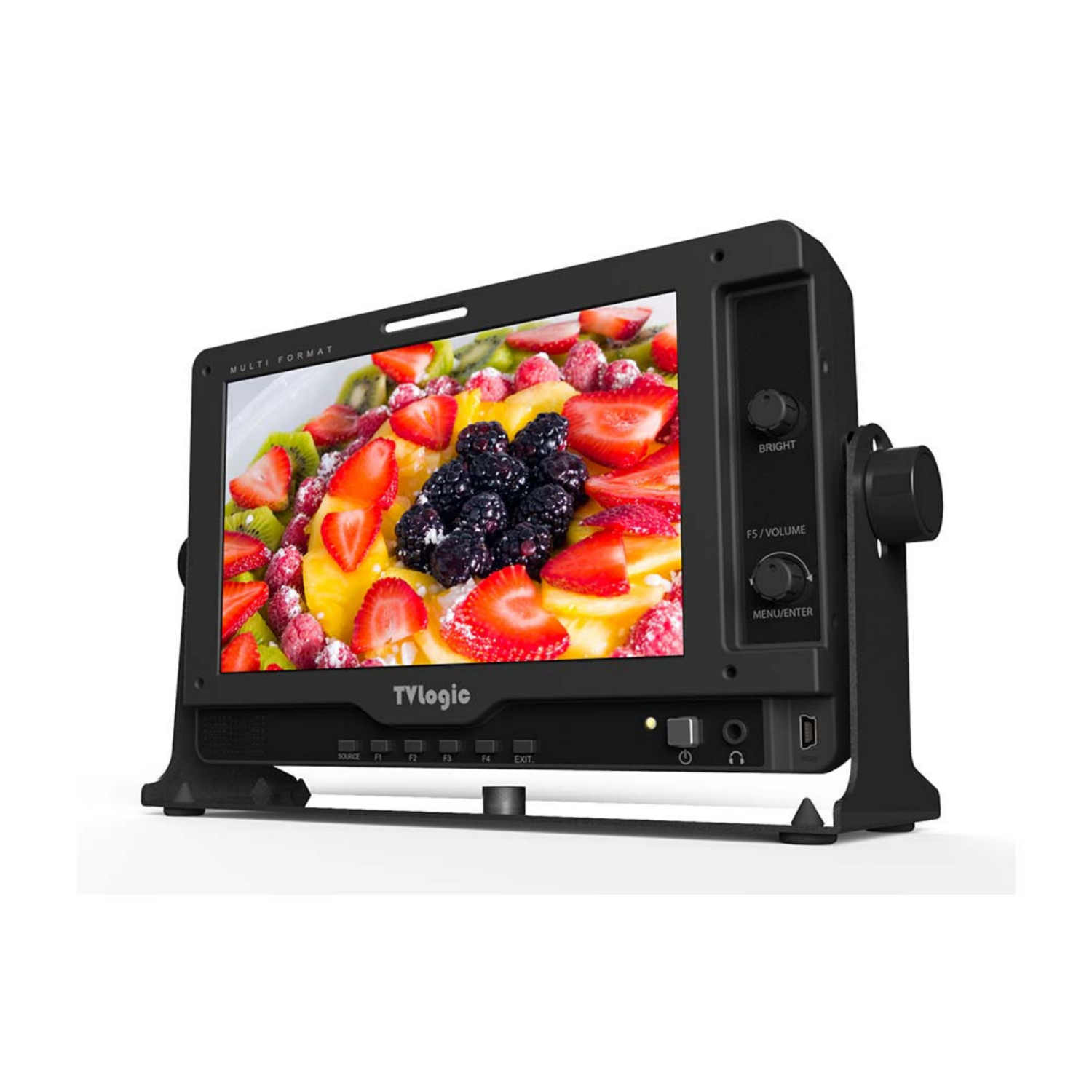

TVLogic LVM-070C : 7” Field Monitor

The LVM-070C is the reasonably priced field monitor with robust housing and pro features. With a high resolution 1024 x 600 (16:9) 7 inch LCD display, the LVM-070C accommodates multi-format analogue, 3G/HD/SD-SDI, and HDMI signal inputs. The many features of the LVM-07

More information

984 € with VAT 820 € without VAT
-+
Availability
7-14 days
Manufacturer
Free transport when purchasing this product
SKU:
TVL-LVM-070C
Add to Compare
Product description

Product description

The LVM-070C is the reasonably priced field monitor with robust housing and pro features. With a high resolution 1024 x 600 (16:9) 7 inch LCD display, the LVM-070C accommodates multi-format analogue, 3G/HD/SD-SDI, and HDMI signal inputs. The many features of the LVM-070C include Waveform/vectorscope, Focuss Assist, Luma(Y') Zone Check and audio level meter, Camera Lut.
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor inputsSDI
Monitor inputs3G-SDI
Monitor inputsHD-SDI
Panel resolution1024x600
