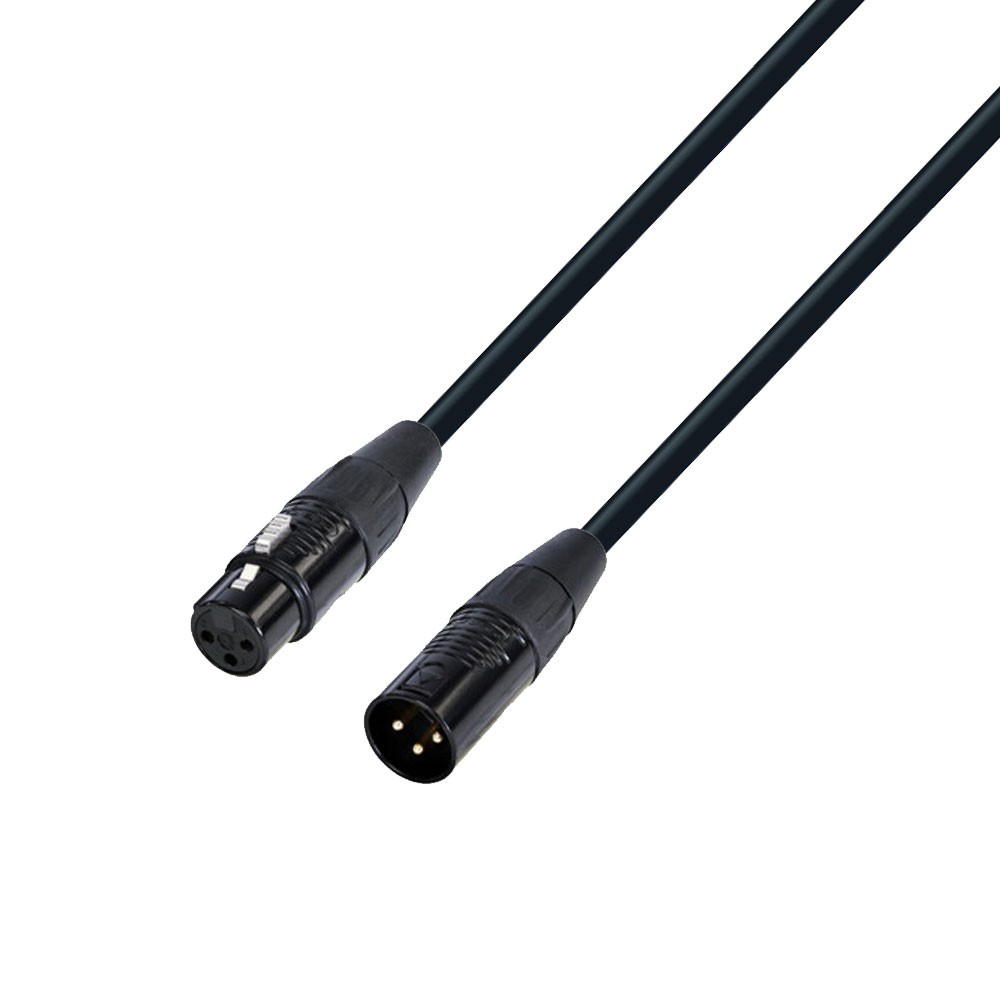

Infinitek L-2T2S microphone cable 6,0mm, XLR (M) / XLR (F) 20m REAN

XLR (M)/XLR (F) microphone interconnect cable. Cable made to measure from high quality cable from Japanese manufacturer Canare and Rean connectors .

Canare XLR-M to XLR-F

is a symmetrical microphone audio interconnect cable. Audio cable assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mm diameter jacket .

Cable features:

• Copper braided shielding
• Flexible even in extremely cold weather
• Cross-linked PE (polyethylene) insulation
• Minimized handling noise
• EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Specifications:

• Standard manufactured lengths in (m): 100/200
• Cable weight in kg/100m: 4.6
• Sheath diameter (overall diameter) in mm:6.0

• AWG: 23
• Material and thickness of outer insulation in (mm):PVC (1.00)
• Breaking point in (°C):-49
• Number and colour of conductors:2 / 1 x blue, 1 x white
• Number and diameter of cores per conductor in mm: 60/0,08
• Shielding factor:>94%
• Conductor resistance in Ω100m: <6.4
• Shielding resistance in Ω/100m: <3.1
• Capacitance between blue and white conductors in pF/m:70
• Capacitance between conductors and shield in pF/m:106
• Impedance in Ω: 88

Technical specifications of Rean connectors:
