Angenieux EZ-3 Pack 45-165 mm T/2,3-3 S35 / 68-250 mm T/3,5-4,5 FF (S35+FF, PL)

The EZ-3 is a new telephoto lens in the Angenieux EZ line of professional film optics! Like the EZ-1 and EZ-2 models, it offers compact dimensions, excellent drawing, dual focusing marks and above all the "IRO Technology" (Interchangeable Rear Optics) which allows to interchange the rear part of the optical system to convert the lens for S35 or FF/VV cameras.…

More information

Call us for pricing information
Availability
on request

Show all accessories

Product description

Product description

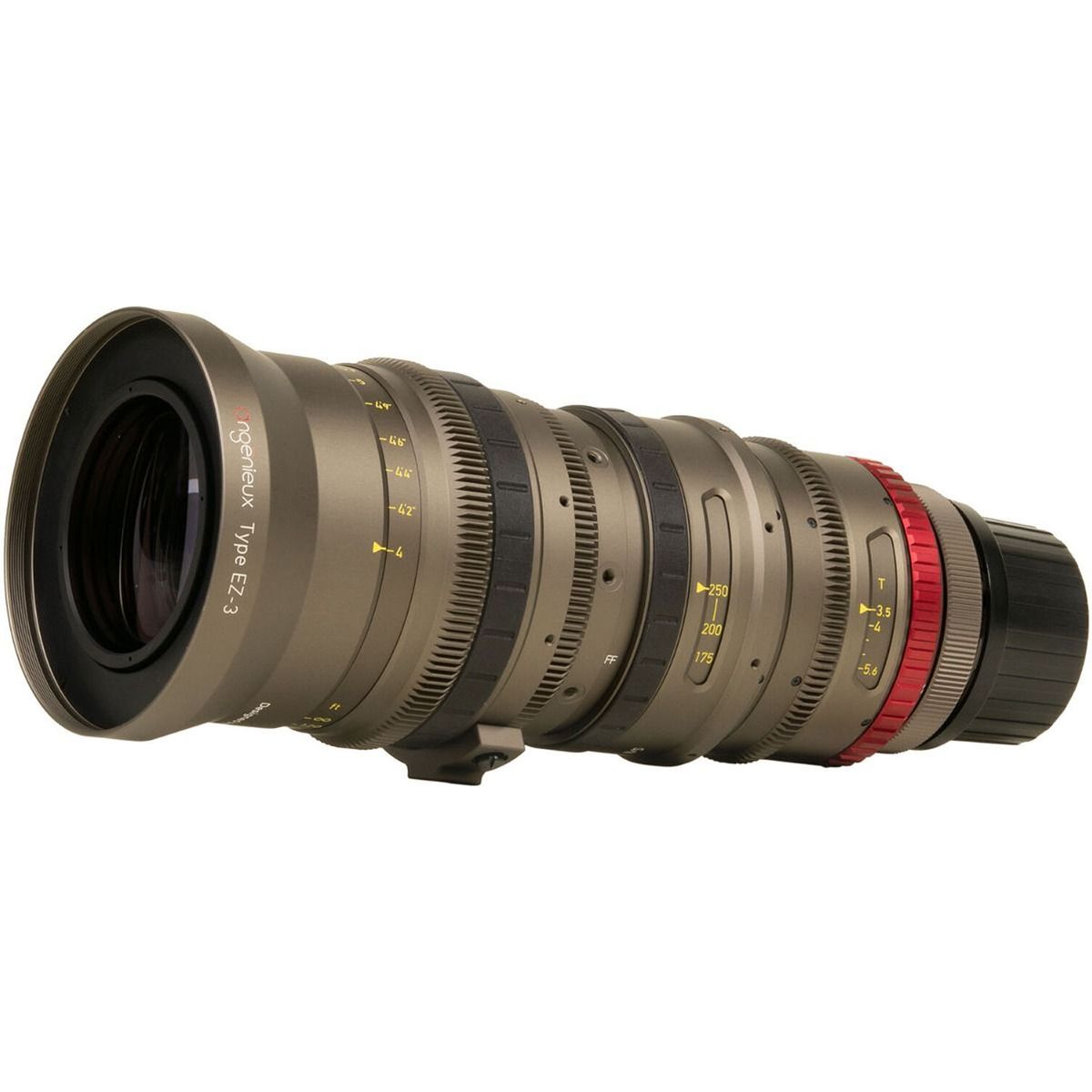

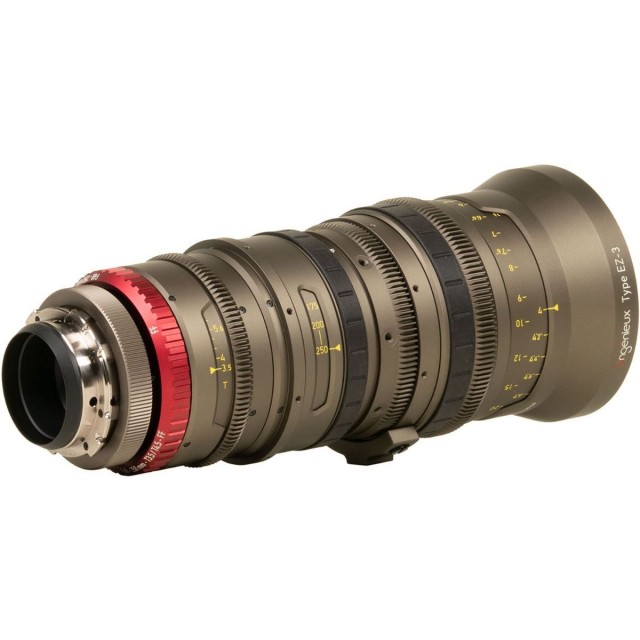

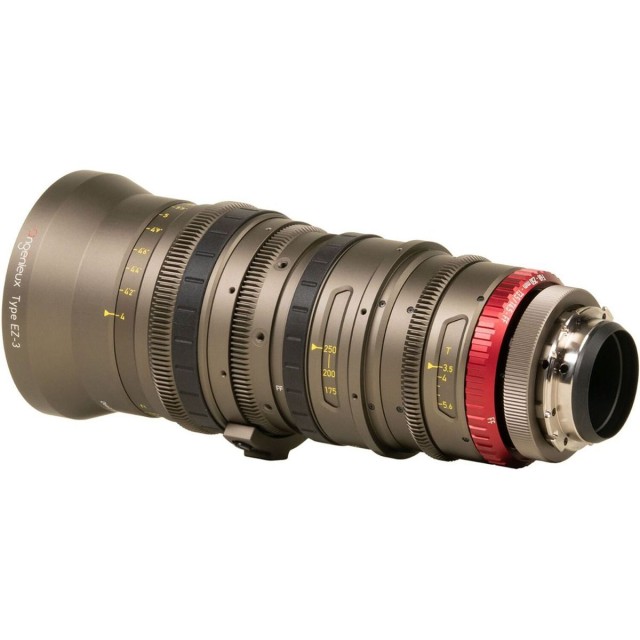

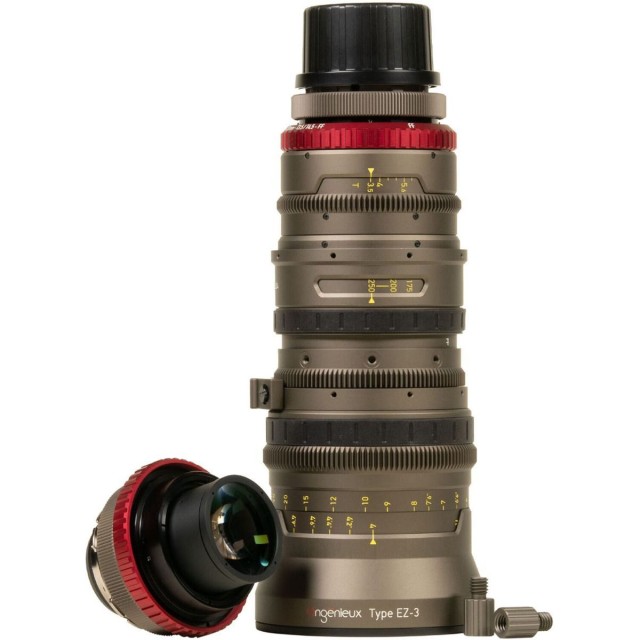

The EZ-3 is a new telephoto lens in the Angenieux EZ line of professional film optics! Like the EZ-1 and EZ-2 models, it offers compact dimensions, excellent drawing, dual focusing marks and above all the "IRO Technology" (Interchangeable Rear Optics) which allows to interchange the rear part of the optical system to convert the lens for S35 or FF/VV cameras. Thanks to the innovative design of the rear element, the exchange itself is very easy and takes about 5 minutes. The EZ-3 Pack includes both (S35 and FF/VV) rear elements for optical parameters 45-165 mm T/2.3-3 (S35) and 68-250 mm T/3.5-4.5 (FF/VV) respectively! The lens comes standard with the (interchangeable) PL bayonet, optional interchangeable EF, RF and E bayonets are also available.

The Angénieux EZ range fills the gap between entry-level still photography zooms and the high-end Optimo and Optimo Style lenses used in the film industry, and includes three lightweight zooms: the EZ-1, EZ-2 and the new EZ-3. Featuring an innovative modular lens design (Interchangeable Rear Optics, IRO technology), the EZ series lenses allow the rear lens group to be interchanged between S35 and FF/VistaVision formats. This makes the lenses very versatile, providing great image quality at an affordable price, and having the flexibility needed for run-and-gun shooting. Users can also easily change interchangeable bayonets between PL and (optionally) RF, EF, E.

EZ-3 + FF/VV IRO

  • Sensor Coverage: FF/VV
  • Zoom: 3.7x
  • Focal range: 68 - 250 mm
  • T3.5 / T4.5
  • Minimum focusing distance: 1.2 m
  • Internal focusing mechanism: yes
  • Circular projection: 46.3 mm
  • Reference image size: 37.7 x 24.9 mm
  • Horizontal FOV: 31.1° - 8.6°
  • Vertical FOV: 20.5° - 5.8°
  • FOV@MOD at min. focal length: 570 x 154 mm
  • FOV@MOD at max. focal length: 370 x 103 mm
  • Front diameter: 114 mm
  • Length : 265 mm
  • Weight : 2.6 kg

EZ-3 + S35 IRO

  • Sensor coverage : S35
  • Zoom: 3.7x
  • Focal range: 45 - 165 mm
  • Focal length: T2.3 / T3
  • Minimum focusing distance: 1.2 m
  • Internal focusing mechanism: yes
  • Circular projection: 30.4 mm
  • Reference image size: 24 x 13.5 mm
  • Horizontal FOV: 30° - 8.4°
  • Vertical FOV: 16.8° - 4.8°
  • FOV@MOD at min. focal length: 549 x 150 mm
  • FOV@MOD at max. focal length: 303 x 80 mm
  • Front diameter: 114 mm
  • Length : 265 mm
  • Weight : 2.6 kg
Parameters

Parameters

Manufacturer: Angenieux
Category: Lenses

Main parameters

BayonetPL
Lens suitable forFull frame
Lens suitable forSuper 35
Optical zoom3.7x
ZoomYes
ACCESSORIES (6)

ACCESSORIES (6)

Angenieux EZ-1/EZ-2/EZ-3 EF Mount

Optional EF mount for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information

Angenieux EZ-1/EZ-2/EZ-3 Hood

Sun visor for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information

Angenieux EZ-1/EZ-2/EZ-3 E Mount

Optional E mount for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information

Angenieux EZ-1/EZ-2/EZ-3 Front Protective Glass

Protective front filter for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information

Angenieux EZ-1/EZ-2/EZ-3 RF Mount

Optional RF mount for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information

Angenieux EZ-1/EZ-2/EZ-3 Transport Case

Fixed transport case for Angenieux EZ-1/EZ-2/EZ-3 lenses.
Call us for pricing information
