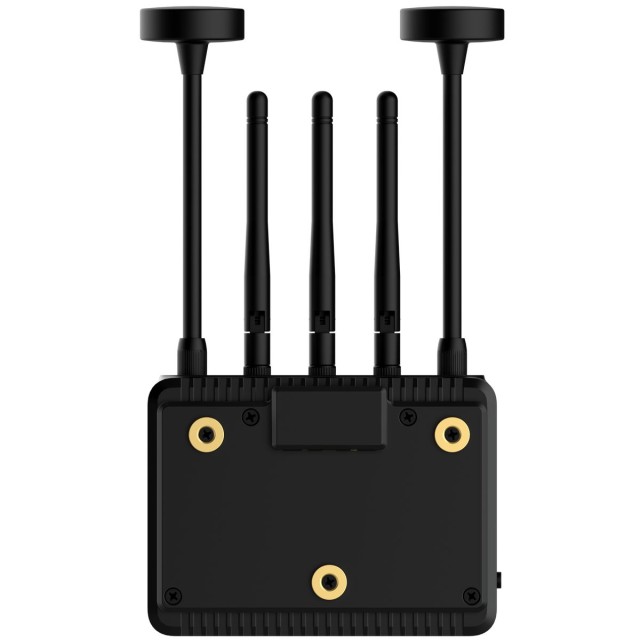

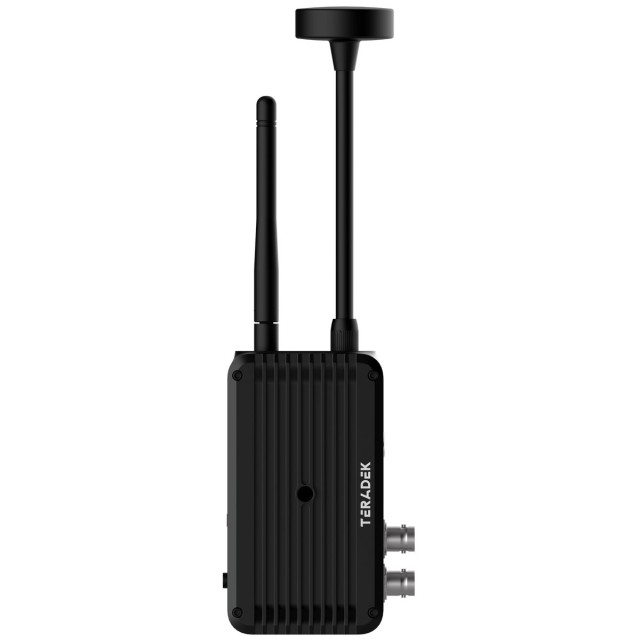

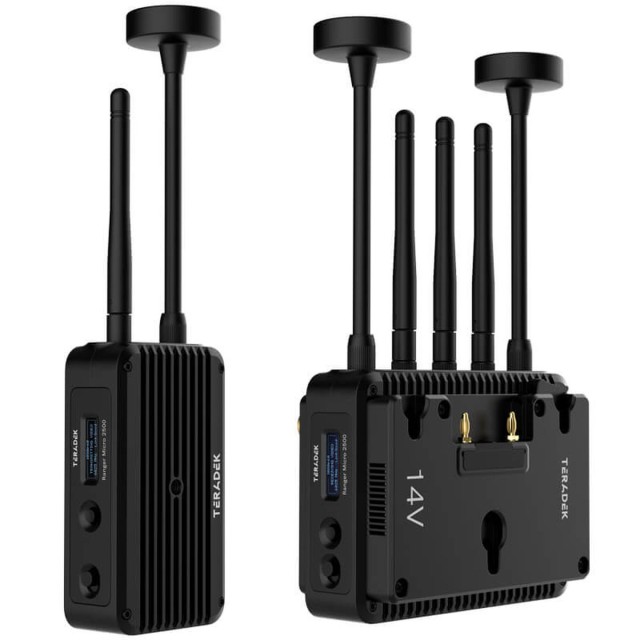

Teradek Ranger Micro Wireless TX/RX Set 5000 (3G-SDI/HDMI) (V-Mount)

Teradek Ranger are professional products for wireless transmission of HD (Ranger Micro) and 4K (Ranger Mark II) video supporting transmission of visually lossless video with <1 ms latency and, in addition to the 5GHz band, also support unlicensed 6GHz/UNII-5 with the ability to tune in 5 MHz increments to minimize interference. Both Ranger Micro and Ranger Mk II series also offer SDI (3G on the Ranger Micro and 12G on the Ranger Mk II) and HDMI interfaces as well as AES-256 encryption.

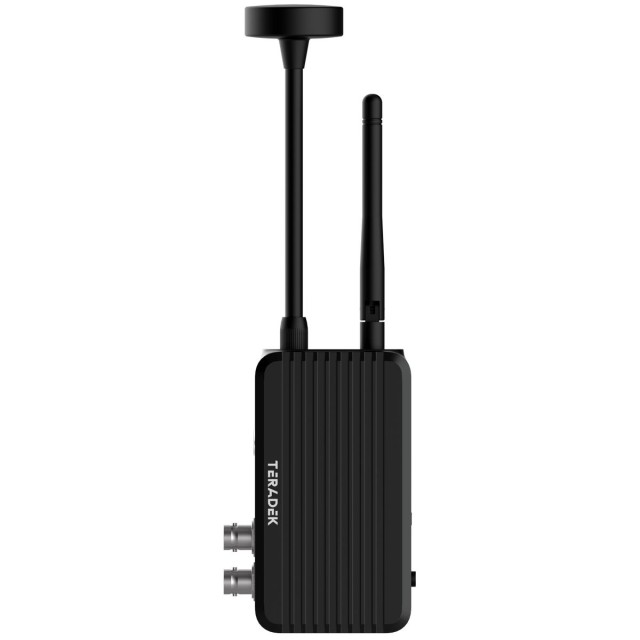

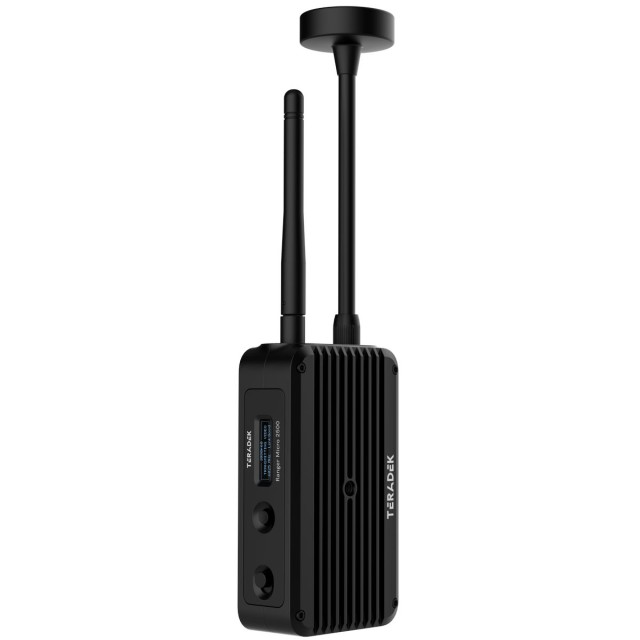

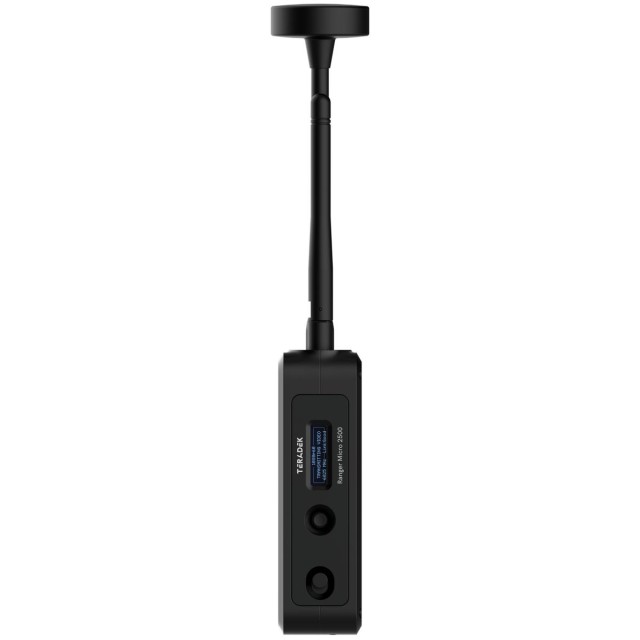

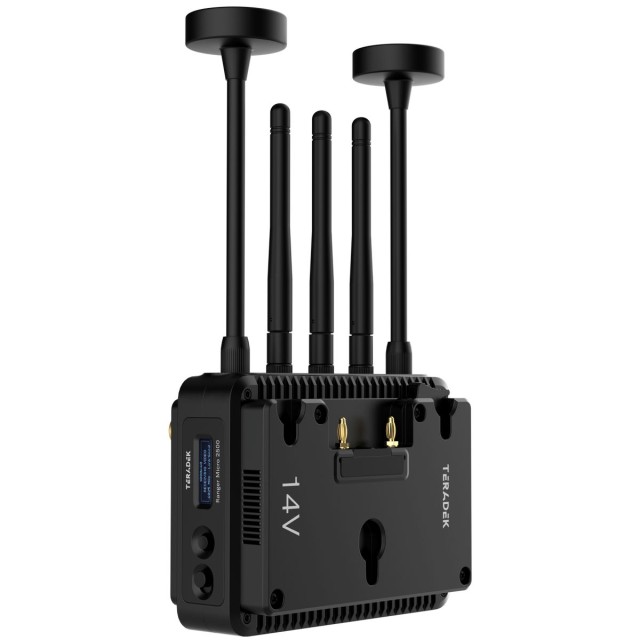

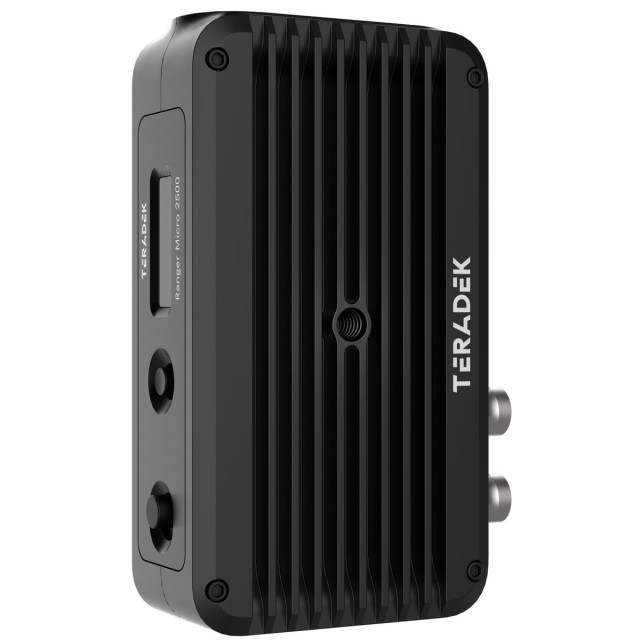

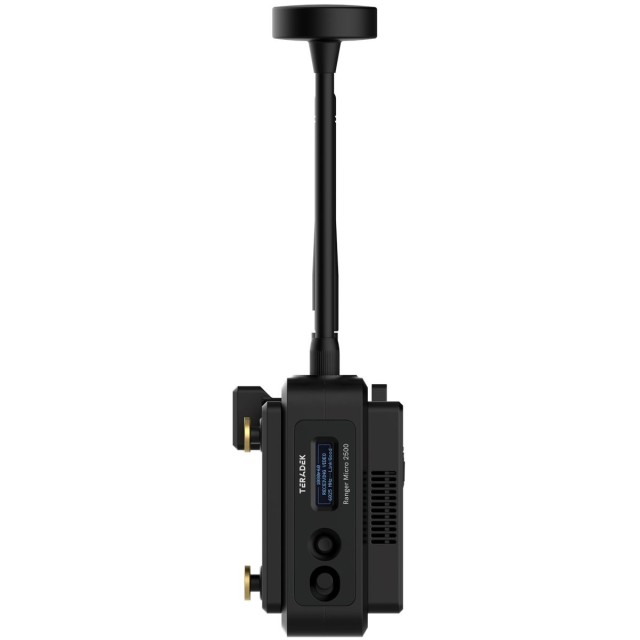

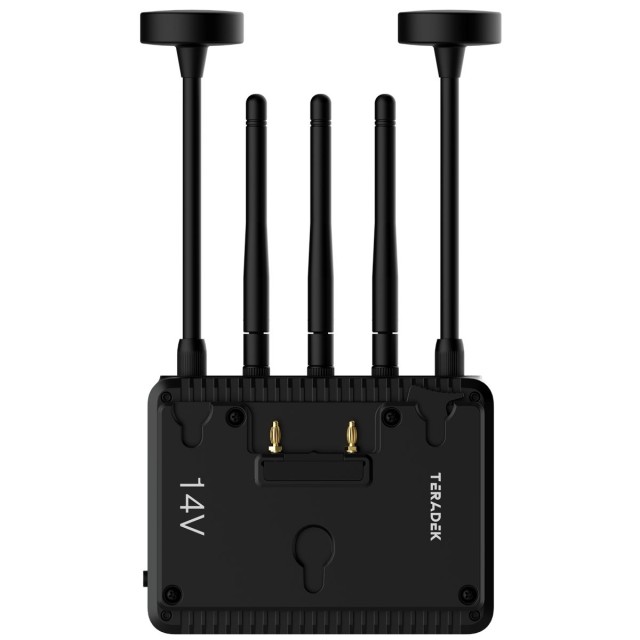

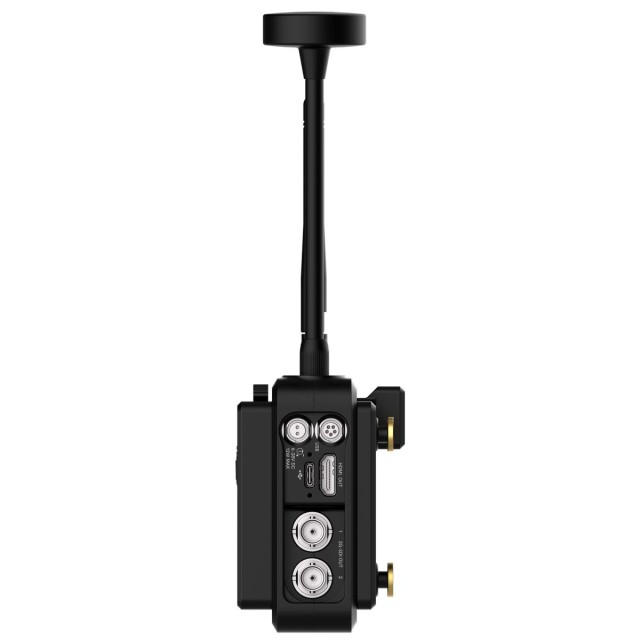

Compact, powerful system for wireless transmission of 3G-SDI and HDMI HD video up to 1080p60. Available in different range options - 750' (228 m), 2500' (762 m) and 5000' (1524 m) - and V-Mount or Gold Mount battery plates. The Ranger Micro series is an ideal complement to lightweight camera kits, and by offering TX+RX sets as well as stand-alone transmitters (TX) and receivers (RX), it can be easily expanded to suit your production needs.

• Latency-free (<1 ms latency) wireless video transmission
• Visually lossless video, superior quality compared to solutions using HEVC and H.264
• High security with AES-256 encryption
• Precise frequency adjustment in 5 MHz increments
• Supports both licensed and unlicensed bands in the 4.9-6.4 GHz range (4.850-5.150 GHz, 5.350-5.470 GHz, 5.850-5.925 GHz, 5.150-5.250 GHz (non-DFS), 5.250-5.350 GHz (DFS), 5.470-5.725 GHz (DFS), 5.725-5.850 GHz (non-DFS), and 5.925-6.425 GHz (UNII-5)
• Can be paired with any Teradek Ranger products including previous generation
