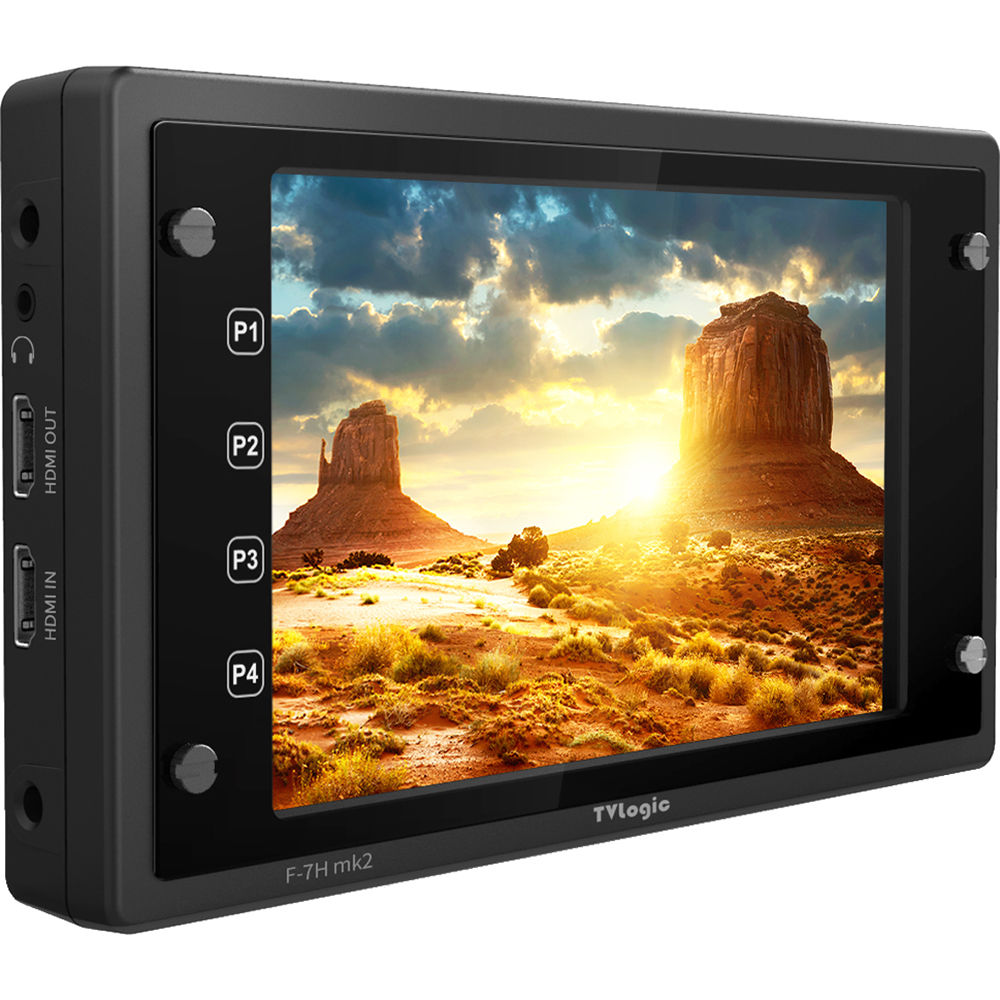

TVLogic F-7H MK2-AG (Anti-Glare)

The F-7H is a 7-inch field Full HD resolution (1920x1080) production monitor with ultra-high luminance of 3,600nit. The F-7H provides SDI <-> HDMI cross conversion with 1 SDI input, 1 SDI output, 1HDMI input and 1 HDMI output interfaces. It also supports all the professional features such as Waveform & Vectorscope, Audio Level Meters, Focus Assist, Range Error, Time Code Display, various Aspect Ratio and Makers, 3D LUT import, Camera Logs and HDR emulation including HDR EOTFs of PQ, HLG and SLog3.

The F-7H professional camera monitor from Korean manufacturer TVLogic is equipped with a high-brightness 7" IPS LCD display with a native resolution of 1920x1080, 3600 cd/m2 brightness and 1200:1 contrast ratio. It also offers extensive support for video formats on 3G-SDI and HDMI 1.4 inputs (up to 1080p60), support for computer image formats (from 640 x 400 up to 1280 x 800/1024 and 1920 x 1080), HDMI-SDI conversion, etc. It is powered by external 12V DC power supplies (7-18V, 1.8A/19W) or by an optional battery plate (L-Series, BP, CGA/VB, BP-U, LP-E6, V-Mount or Gold Mount)

A very rich software offering includes HDR emulation mode (PQ, HLG and SLog3), 3D LUT correction (S-Log1-3; Log-C; C-Log; RED Gamma3/4) incl. aRRI Alexa (SDI) camera metadata display, video and audio metering functions, focus assist function, H/V flipping, Max Brightness mode for working outdoors and Anamorphic Desqueeze function for working with anamorphic lenses, monochrome and blue display and many more features!

• 7" diagonal
• 1920x1080 (16:9) resolution
• Viewing angles: 160°(H) / 160°(E)
• Brightness: 3600 cd/m2
• Contrast: 1200:1
• Display area: 151.2(H) × 94.5(E) mm
• Inputs: 1x BNC 3G-SDI, 1x HDMI 1.3 A, Tally
• Outputs: 1x BNC 3G-SDI, 1x HDMI 1.3 A
• Audio inputs: Embedded Audio/Analog Stereo (3.5mm jack)
• Audio outputs: headphone output (3.5mm jack)
