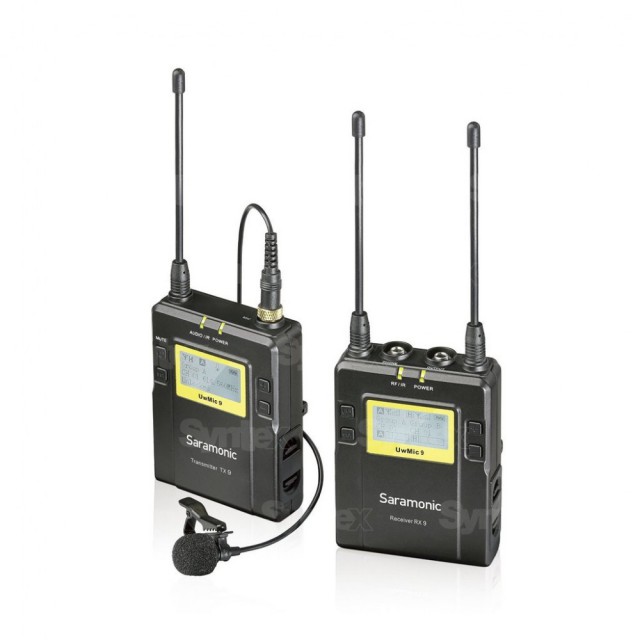

Saramonic UwMic9 Kit (RX9+TX9)

• 1 x Transmitter (TX9)
• 1 x Receiver (RX9)
• 1 x Omnidirectional Lavalier Microphone

Transmitter

• Channels: 96
• Groups: A or B
• Oscillator Type: PLL Synthesizer
• Frequency Range: 514 MHz – 596 MHz
• Reference Deviation: +/- 5 kHz (-60dBV, 1kHz input)
• Signal to Noise Ratio: 70 dB or more
• Spur Suppression: -60 dB
• Voice Delay: 12 ms
• Antenna: 1/4λ wire antenna
• Audio input connector: TX9:3.5mm mini jack
• HU9: noneTX-XLR9: XLR-3-11C type (female)
• Reference audio input level: -60dBV (MIC input, 0dB attenuation)
• Distortion: 0.5% or less
• Weight: TX9: Approx. 211.4g (excluding batteries)
• HU9: Approx. 338.2g (excluding batteries)
• TX-XLR9: Approx. 138g (Excluding batteries)
• Battery: Two AA size batteries
• Dimensions: TX9: 170.9 x 63.5 x 30.0 mm
• HU9: 254.0 x 52.0 x 52.0 mm
• TX-XLR9: 105.5 x 43 x 34.7 mm
• Operating temperature: 0℃ to 50℃
• Storage temperature: -20℃ to +55℃

Receiver

• Channels: 96
• Groups: A or B
• Oscillator Type: PLL Synthesizer
• Audio output connector: 3.5mm mini jack
• Antenna: 1/4λ wire antenna
• Audio output level: -60dBV
• Headphone output level: 30mW (16Ω)
• Receiver frequencies: 514 MHz – 596 MHz
• Signal to Noise Ratio: 70 dB or more
• Voice Delay: 12 ms
• Reference Deviation: +/- 5 kHz (-60dBV, 1kHz input)
• Frequency response: 40Hz to 18kHz (+/-3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60 dB
• Weight: 218.7g (Excluding batteries)
• Battery: Two AA size batteries
• Dimensions: 170.9 x 63.5 x 30.0 mm
• Operating temperature: 0℃ to 50℃
• Storage temperature: -20℃ to +55℃
