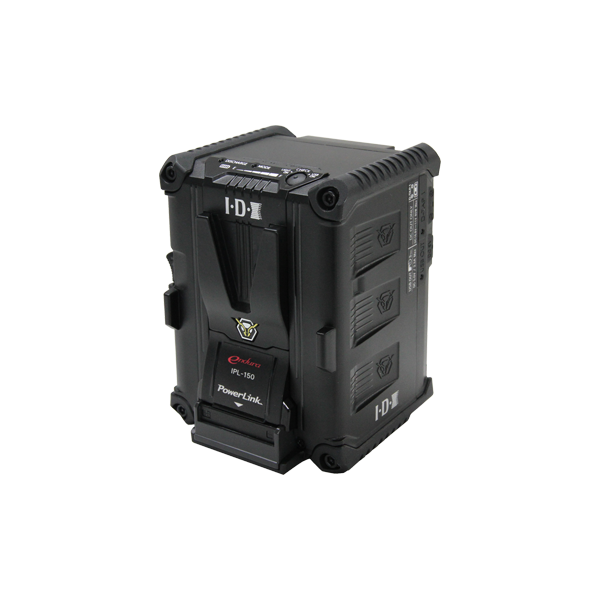

The IDX IPL-150 is a stackable battery for v-mount cameras. PowerLink technology allows you to connect up to four batteries. The IDX IPL batteries feature two 80W D-Taps and one USB output.
The IPL Series PowerLink batteries are the newest stackable v-mount solutions for digital cinema cameras where infinite runtimes are required. Up to four can be linked together with hot swap capability. With 96Wh & 143Wh capacities, the IPL-98 & IPL-150 are both high-load batteries that meet the passenger aircraft carry-on limit. The IPL Series also includes two 80W D-Taps and one USB output to power additional items. Equipped with a V-Torch LED light, this standard feature makes the IPL batteries easy to mount in dark environments. Accurate power levels are displayed in 10% increments via a 5 LED power indicator.
Like the popular E-HL9, the IPL Series batteries can be linked and used as a larger capacity battery. PowerLink allows up to four IPL-98/ IPL-150 batteries to be linked via V-Mount. This feature also allows the last battery linked to be another IDX brand V-Mount battery, which is convenient for those who already own our products.
With the ability to mount multiple batteries, users can create a customizable capacity fitted to their needs. With the right battery combination, it is possible to get up to 715Wh! Power is drawn from the last battery mounted allowing for 24-hour filming through convenient hot swapping.
The PowerLink technology also allows up to four IDX batteries to be stacked and will charge two batteries simultaneously with the VL-2000S dual charger. Charging will commence with the furthest battery from each port.
Battery capacity: 143Wh (14.4V/ 9.9Ah)
Max. 16.8V DC
Rated voltage: 14.4V DC
Maximum discharge current: 11.3A (14A when two or more batteries are connected)‡
D-Tap: 80W
USB: DC 5.0V/2.3A
Minimum voltage: 11V
Battery protection: overcharge, over-discharge, over-current protection, thermal protection
Ambient Temperature - Charging: 0°C ~ 40°C (10°C ~ 30°C recommended)
Ambient Temperature - Discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
Ambient temperature - storage: -20°C ~ 50°C (less than 1 month)
Dimensions: 89(width) x 119(height) x 85(depth) mm
Weight: 970g
