AVtec XHD070

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

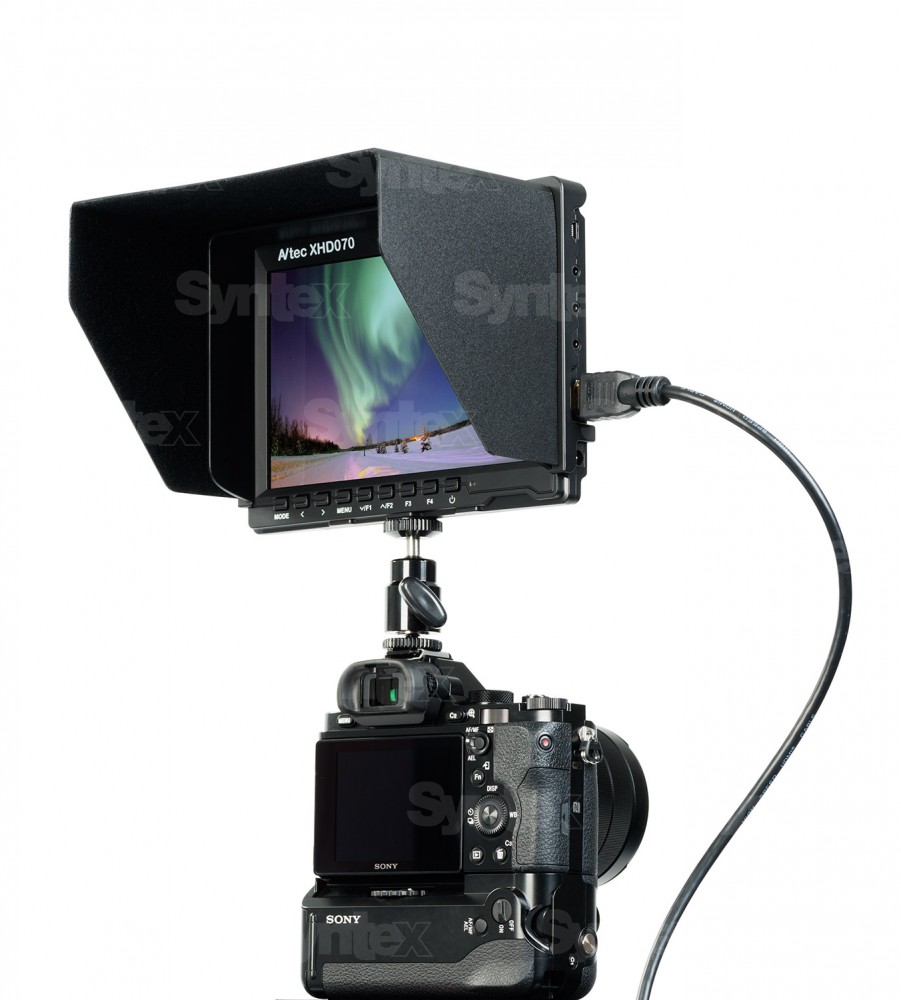

The AVtec XHD070 and XHD070Pro are professional, very lightweight monitors with a 7" IPS LCD high quality display. These field-monitors enable you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. With brightness levels of 400 cd/m2, a 800:1 contrast ratio and 178° vertical and horizontal viewing angles, it’s a great tool for photographers and video shooters alike.

AVtec XHD070 XHD070Pro

Key features

Ultra-thin & lightweight 7” IPS Screen
1280x800 HD screen, PAL/NTSC color system
Supports 1080i & 1080p
Built-in speaker & integrated jack port for headphones
Four assignable function buttons
Firmware upgradable through USB
Focus Assist, Center Marker, Safe Frames, Check Field
Image Freeze, Image Flip & Pixel-to-Pixel
Histogram, Exposure (Zebras) & False Colors (only on the XHD070Pro)

XHD070 vs. XHD070Pro
The difference between the XHD070Pro and XHD070 is the number of features that is added to the Pro version, being the Histogram, False colors and Exposure. These features make it just a little bit easier to get the perfect picture when you use your monitor on a more frequent basis. This makes the XHD070 a great tool for the average user who wants to maximize the results with a minimum of cost and effort. For a more intensive user we recommend the XHD070Pro to make the daily activities more efficient.

AVtec XHD070 XHD070Pro

PACKAGE CONTENT

Included in the package:
AC/DC adapter with EU, UK, US & AU plugs
Detachable sun hood attachment & foldable sun hood
Battery bracket for NP-F, BP-U & LP-E6 batteries
Ball head with 1/4” camera screw
HDMI (to HDMI mini) cable & HDMI plug lock

AVtec XHD070 XHD070Pro

SPECIFICATIONS

  • Display LED-backlit IPS LCD 7" (18 cm)
  • Resolution 1280 x 800
  • Dot Pitch 0.11775 (W) x 0.11775 (H)
  • Aspect Ratio 16:9
  • Brightness 400 cd/m2
  • Contrast Ratio 800:1
  • Response Time 25 ms
  • Viewing Angle 178° - 89/89/89/89° (Left/Right/Up/Down)
  • Input Signal 1 x HDMI type A, 1 x A/V
  • Color System NTSC 3.58 / PAL 4.43
  • Supported Resolutions 1080p60/59.94/50/30/29.97/25/24/24/23.98/23.98 fps, 1080i60/59.94/50, 720p60/59.94/50/30/29/25/24/23.98, 576p/i, 480p/i
  • Speaker Built-in on the rear
  • Headphone Output Stereo 3.5 mm
  • Input Voltage 7.4 to 35 VDC
  • Mount Type 1/4"-20 threaded hole on the bottom
  • Power Consumption ≦ 5W
  • Operating Temperature -4 to 122°F (-20 to 50°C)
  • Storage Temperature -22 to 140°F (-30 to 60°C)
  • Dimensions 7 x 5 x 0.7" (17.5 x 13 x 1.7 cm), 7 x 5 x 1.7" (18 x 13 x 4.3 cm) (including sun hood)
  • Weight 0.64 lb (290 g)



Parameters

Parameters

Manufacturer: AVtec
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor power supplyLP-E6
Monitor power supplySony NP-F / BP-U
Luminosity400cd/m2
Panel resolution1280x800

Other parameters

Other featuresLightweight
