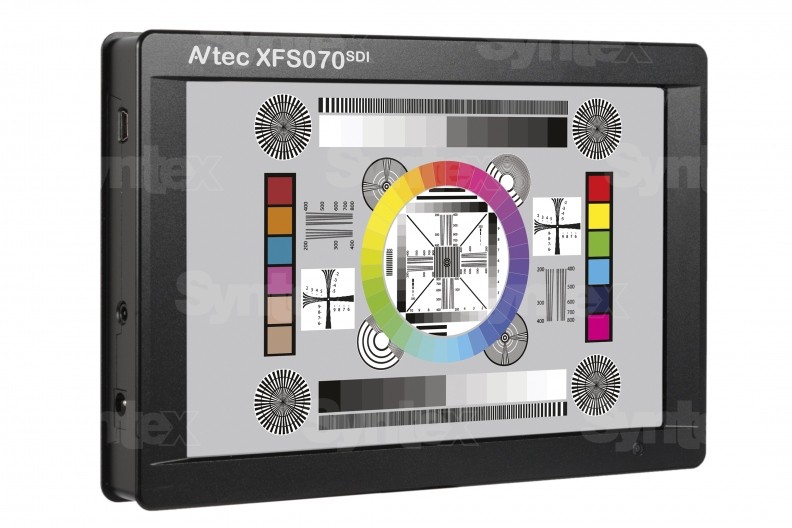

AVtec XFS070SDI 7” Full HD SDI Assistant Monitor

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

This cinematographers on-camera monitor has a 7” IPS LCD panel with HD-SDI & HDMI.

AVTec XFS070SDI 7” Full HD SDI Assistant  Monitor

The AVtec XFS070 SDI FullHD Cinematographers on-camera monitor has a 7” IPS LCD panel with HD-SDI & HDMI. This monitor is an essential production accessory for all cinematograpers and DoP’s. Supporting both SDI and HDMI signals (input and output) makes it a very versatile unit when you need a dependable image reference.

It has a wide viewing angle IPS LED screen featuring 16.7M colors. It’s conveniently sized for easy transportation and shooting in various and difficult situations. This monitor only weighs 350 grams and can be mounted on your camera via the hot shoe attachment on the supplied ball head. The unit can be powered by both a battery (NP-F, BP-U & LP-E6) and DC adapter.

Connect it directly to any DSLR or HD/4K video camera through HDMI and monitor your shots in 1920x1080 resolution. With brightness levels of 450 cd/m2, a 1200:1 contrast ratio and 160° vertical and horizontal viewing angles, it’s a great tool for professional videographers.

Professional Features
Analyze the perfect exposure, color settings and other characteristics with features like Histogram, False Color, Exposure (Zebras), Focus Assist, Pixel-to-Pixel, and altogether over a dozen useful features. Assign often-used menu functions to one of the function buttons for quick and easy access.
The focus and exposure-assist features mentioned above are only some of the image control features available on the monitor. The entire set of professional functions consists of the following; Histogram, False Colors, Exposure (Zebras), Focus Assist, Center Marker, Safe Frames, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel, Image Freeze, Image zoom, Anamorphic, Peaking Color, Embedded audio, Nine grid, Ratio marker and Marker color.
The monitor also features an on-screen adjust brightness, contrast, tint, saturation etc., to fine-tune your display. The default aspect ratio is 16:9 but you can easily switch to 4:3, Panorama or Automatic in the menu.

AVTec XFS070SDI 7” Full HD SDI Assistant  Monitor
•  7” IPS LCD Panel
• 1920x1080 FullHD screen
• Supports 4K UHD HDMI input and output
• Built-in speaker & integrated jack port for headphones
• Firmware upgradable through USB
• Supports a variety of battery types (NP-F/ LP-E6/ BP-U)
• AC/DC Adapter with EU, UK, US & AU plugs included
• Detachable sun hood attachment & foldable sun hood
• Four assignable function buttons
• Focus Assist, Center Marker, Safe Frames, Check Field
• Image Freeze, Image Flip & Pixel-to-Pixel
• Histogram, Exposure (Zebras) & False Colors
• Analog stereo L/R, Embedded Audio Display
• Image Zoom function, Image Nine Grid and Anamorphic Mode
• Brightness, Contrast, Tint, Saturation and Color Temperature adjustment

PACKAGE CONTENT

  • 1x AVtec XFS070SDI
  • 1x Detachable sun hood attachment & foldable sun hood
  • 1x AC/DC adapter with EU, UK, US & AU plugs
  • 3x Battery bracket (for NP-F, BP-U & LP-E6 batteries)
  • 1x Ball head with 1/4" camera screw
  • 1x HDMI cable
  • 1x Owner´s Manual

SPECIFICATIONS

  • Panel Type IPS LCD
  • Resolution 1920x1080
  • Backlight LED
  • Dot Pitch 0.07875 (H) x 0.07875 (W) mm
  • Aspect Ratio 16:9
  • Brightness 450cd/m2
  • Contrast Ratio 1200:1
  • Viewing Angle 80°/80°(Left/Right) 80°/80°(Up/Down)
  • Input Signal SDI, HDMI
  • Output Signal SDI, HDMI
  • SDI Support Format 480i /576i 720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50) 1080p
    (60/59.94/50/30/29.97/25/24/ 24sF/ 23.98/23.98sF)
    HDMI Support Format 480i /480p /576i /576p
    720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25/
    24/24sF /23.98/23.98sF)
    4K UHD 3840x2160p
    (30/29.97/25/24/23.98 Hz)
    4096x2160p (24 Hz)
  • Audio Stereo 3.5mm headphone, speaker
  • Input Voltage DC:6.5~24V
  • Power Consumption ≦9W
  • Unit Size 18 x 12 x 2 cm (7.09 x 4.72 x 0.81 inch)
  • Unit Weight 0.35 kg (0.77 lbs) Including F970 Bracket
  • Installation Method 1/4" bracket screw hole, can be easily connected to the hot shoe mount, tripod fixed installation
  • Working Temperature -20°C~55°C / -4°F~131°F
  • Storage Temperature -30°C~65°C / -22°F~149°F
  • Shipping Dimensions 21.6 x 18.8 x 8 cm (8.5 x 7.4 x 3.15 inch)
  • Shipping Weight 1.05 kg (2.31 lbs)
Parameters

Parameters

Manufacturer: AVtec
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor inputsSDI
Monitor inputs4K HDMI
Monitor inputs3G-SDI
Monitor power supplyLP-E6
Monitor power supplySony NP-F / BP-U
Luminosity450cd/m2
Panel resolution1920x1080

Other parameters

Other featuresLightweight
