Tilta Advanced Power Distribution Module for RED Komodo - Tactical Gray

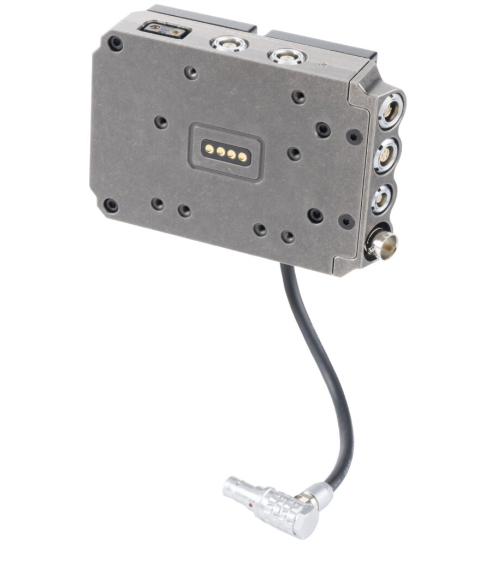

Tilta TA-T08-APM Advanced Power Distribution Module for RED KOMODO (Tactical Gray) — adapts the dual BP-battery slots to Gold or V-Mount plates, adds full battery communication, Run/Stop, Timecode and multiple power outputs. Open Box. Built from aluminum-alloy and stainless steel, the TA-T08-APM provides reliable power distribution in a strong, lightweight Tactical Gray housing—ideal for demanding production environments.

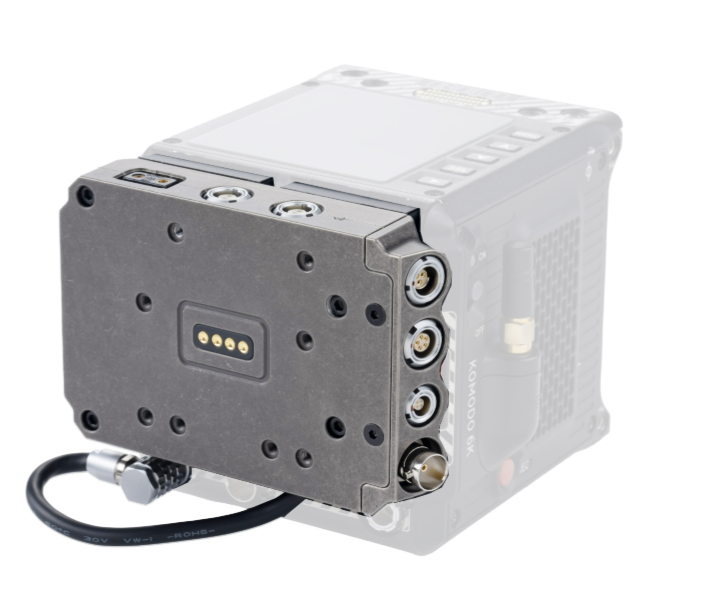

The Tilta TA-T08-APM Advanced Power Distribution Module is a professional, feature-rich power solution designed specifically for the RED KOMODO. This module adapts the camera’s dual Canon BP battery slots to support a Gold Mount or V-Mount battery plate in three orientations: Horizontal Gold Mount, Horizontal V-Mount, or Vertical V-Mount. When using V-Mount batteries, the module enables full communication with the RED KOMODO, allowing the camera to display accurate remaining battery life as a percentage. It provides a precise reporting range:

• 100% at 16V and above
• 0% at 12V, perfectly aligning with typical battery behavior

For batteries capable of discharging below 12V, the module will shut off power early—but the difference in runtime is minimal and helps preserve long-term battery health. The module also includes an integrated KOMODO EXT cable that plugs directly into the camera’s EXT port, unlocking expanded functionality such as Run/Stop, Timecode, and Genlock through dedicated ports. Its 3-Pin Fischer R/S port allows simultaneous Run/Stop triggering and power delivery to accessories such as the Tilta Nucleus-M via an optional Fischer R/S cable.

Key Features

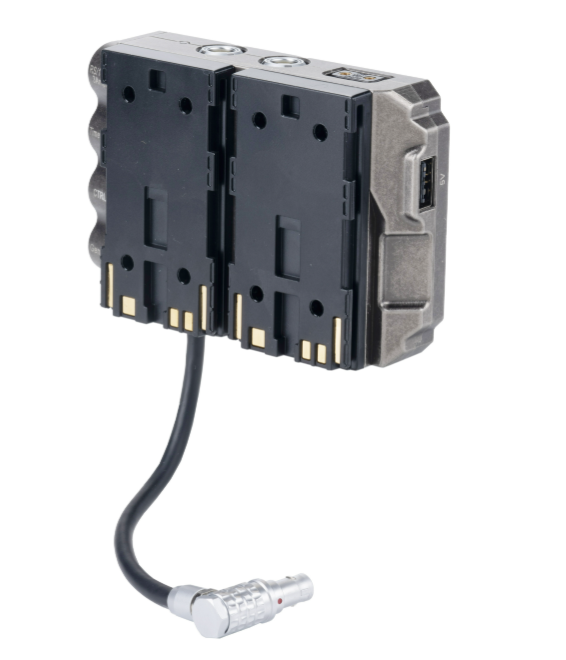

• Adapts RED KOMODO’s dual BP slots to Gold Mount or V-Mount battery plates
• Supports horizontal or vertical battery orientations
• Full V-Mount battery communication displayed on KOMODO UI
• Integrated KOMODO EXT cable for advanced functions
• Run/Stop, Timecode, Genlock, RED CTRL, and USB ports
• 3-Pin Fischer R/S for Run/Stop and Nucleus-M power
• Multiple output ports for powering accessories
• Aluminum-alloy and stainless steel construction
• Tactical Gray finish
• Open Box unit

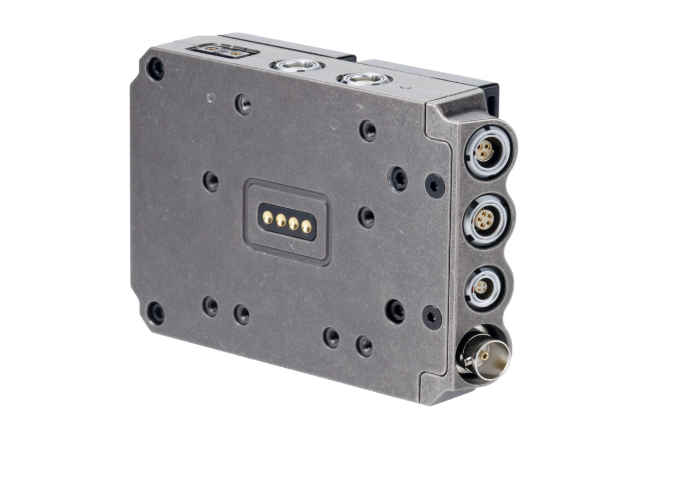

• Power & I/O Ports :1× 14.8V P-Tap Port,2× 14.8V 2-Pin LEMO Ports,1× 3-Pin Fischer R/S Port,1× Timecode Port,1× RED CTRL Port,1× Genlock Port,1× 5V USB Port
