High-Resolution USB Audio/MIDI Interface (2 in, 2 out).

All-rounder for the demanding

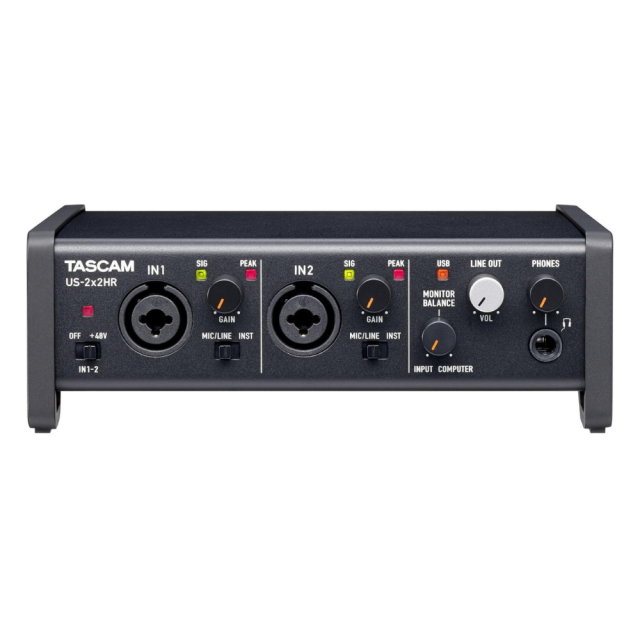

The US-2x2HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces. It provides two mic/line/instrument switchable inputs and two balanced line outputs as well as MIDI I/O to your Windows or Mac computer or your iPhone or iPad. This interface is ideal for music creation and home recording with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for podcast creation and live streaming.

Lower noise and distortion – better sound than ever
The compact US-2x2HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing audio right away. This interface can also be used for mobile production or live streaming using your iPhone or iPad* with the included Cubasis LE. Simply put, the US-2x2HR helps you create and distribute great-sounding audio wherever you go.

Tascam US-2x2HR

Usability is key

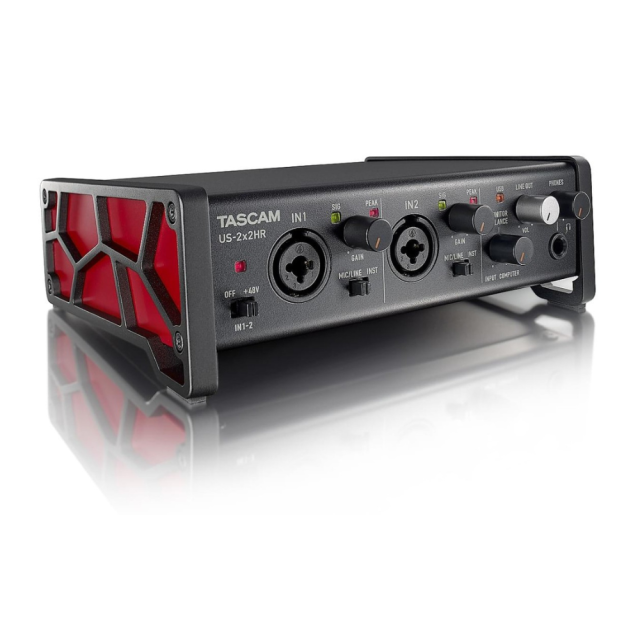

All US-HR models offer a unique dye-cast aluminum honeycomb structure on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won’t move when cables are connected or disconnected. Equally important, the upward tilt offers the ergonomic benefit of being angled in such a way as to make the interface easy to work with.

If you’re a musician, producer or home-recordist who needs a solid, uncluttered, easy-to-use audio interface with superb sound quality, the Tascam US-2x2HR can be your reliable partner for many years.

* An optional battery pack or AC adapter is required when used with an iPhone or iPad.

All our knowledge fot that natural, crisp and clear sound
The Ultra-HDDA (High-Definition Discrete Architecture) mic preamps used on the US-HR series feature a discrete construction. They have a higher number of components and are far away from mass-produced preamps. Their EIN (equivalent input noise) rating, which measures the absence of noise, is truly low for the US-2x2HR and US-4x4HR. Combined with a newly improved audio circuit and support for sampling rates up to 192 kHz, our in-house developed microphone preamplifier delivers enhanced audio performance with the most transparent and low-noise sound, reflected in a signal-to-noise ratio of 110 dB.

  • Ultra-low-noise mic preamps achieve −128 dBu EIN (Equivalent Input Noise)

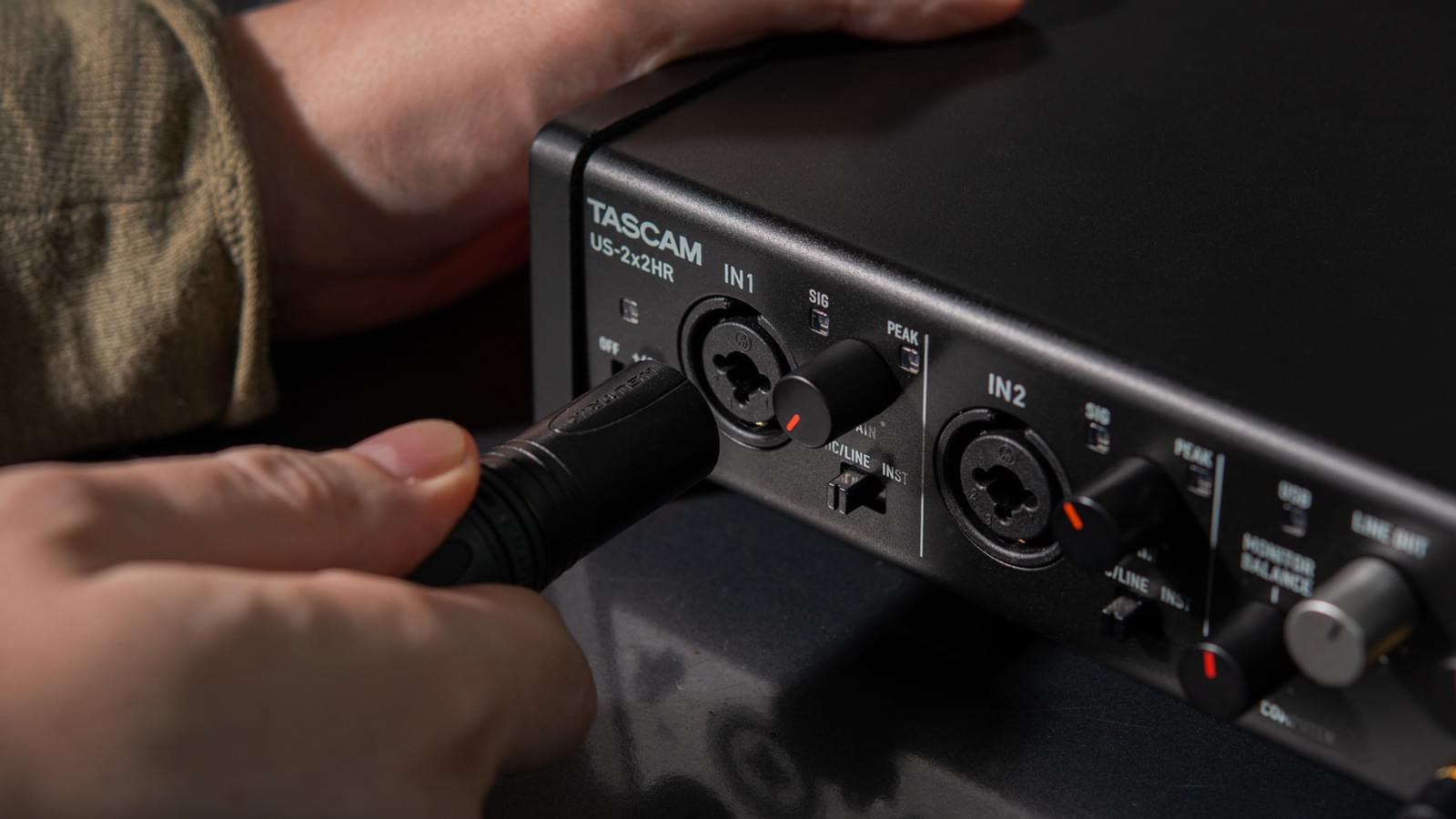

  • XLR/TRS jacks allow the input of condenser mics and the balanced connection of synthesizers and other equipment
  • Wide gain range ensures sufficient level even with dynamic microphones
  • Guitars can be directly connected enabling the use of 3rd-party plug-in effects

Simple, easy-to-understand setup and a low-latency USB driver
One issue when recording using a computer is latency, which is when audio signals are delayed through digital circuitry. Another is setting up the driver software that is used when connecting an audio interface to a computer. In order to eliminate these problems, our driver software introduces only very little latency and is easy to install. Furthermore, by making the external structure of these interfaces as simple as possible, the Tascam US-2x2HR and US-4x4HR allow users who are not expert users of audio equipment to operate them without concern.

  • High-resolution recording up to 192 kHz / 24-bit
  • Robust USB Type C computer connection
  • Zero-latency direct monitoring function (can be set to mono or stereo for each input pair)
  • Windows buffer size can be set from 4 samples up

Ideal ford podcasts and live streaming

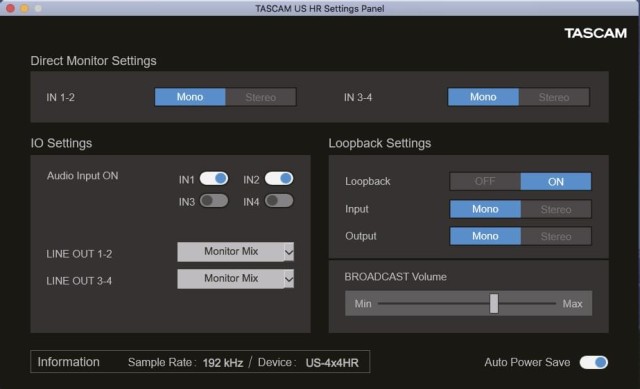

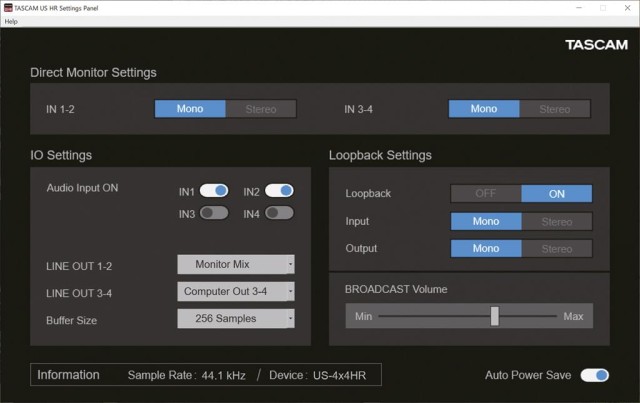

The Settings Panel, which is installed on your computer, comes with a variety of functions. You can choose whether direct monitoring is done in mono or stereo and adjust the balance between input and computer signals. You can also switch the hardware inputs on and off individually and set the Windows buffer size according to your working environment.

For online broadcasting, Internet communication and other live streaming applications, the US-HR series interfaces offer a Loopback function which can merge input signals 1/2 with signals 1/2 coming from the computer (each can be set to mono or stereo) and send that mix to the broadcasting or other software on the computer. A software slider allows to adjust the final “broadcast” volume independently from the unit’s line output level setting.

Podcasting with the Tascam US-2x2HR

  • Inputs can be set on/off individually
  • Line output signals can be selected
  • Loopback can be set on/off, and each of the merged signal pairs can be switched mono/stereo
  • Slider for setting the Loopback master level (broadcast volume)

Support for iPads and other iOS devices
Instead of a computer, you can also use an iPad or iPhone together with the US-2x2HR/US-4x4HR to make music. Performance has been tested with not only the bundled digital audio workstation (Cubasis LE3), but also with other popular recording software – you can continue to use them even if you change DAW software. Since these units include MIDI inputs and outputs, you can connect MIDI keyboards, drum computers etc. to play sounds on the iPad or computer and thus expand your personal orchestra.

  • Connect with an iPad or iPhone
  • Tested with many popular DAW applications
  • MIDI input and output enable connection with keyboards, drum computers and other MIDI devices

Bundled sofware enables music creation right out of the box
The US-HR models come bundled with world-renowned software that will enhance your production workflow. At the core of music production, Steinberg Cubase LE (including Cubasis LE3) gives you everything you need for composing, multitrack recording, sequencing, editing, and mixing. IK Multimedia Sample Tank SE 4 comes free of charge with a massive 30-Gigabyte sound library encompassing more than 2,000 different musical instruments. And a free 3-month subscription to Auto-Tune Unlimited from Antares, a comprehensive suite of industry-standard pitch correction and vocal effects, gives you the opportunity to create those famous sounds of the pros.

Note: Upgrades may require a fee.

Robust  metral casing with a prctical and sleak design
The US-HR models share a solid and practical design intended to withstand years of hard use. Its robust metal jacket not only improves durability. Combined with dye-cast aluminum side panels, it also provides a sleek, eye-catching design. Moreover, the metal structure results in each model having just the right weight, so it won’t move too easily when cables are connected or disconnected.

  • Sturdy metal enclosure
  • Angled design provides excellent usability on a desktop

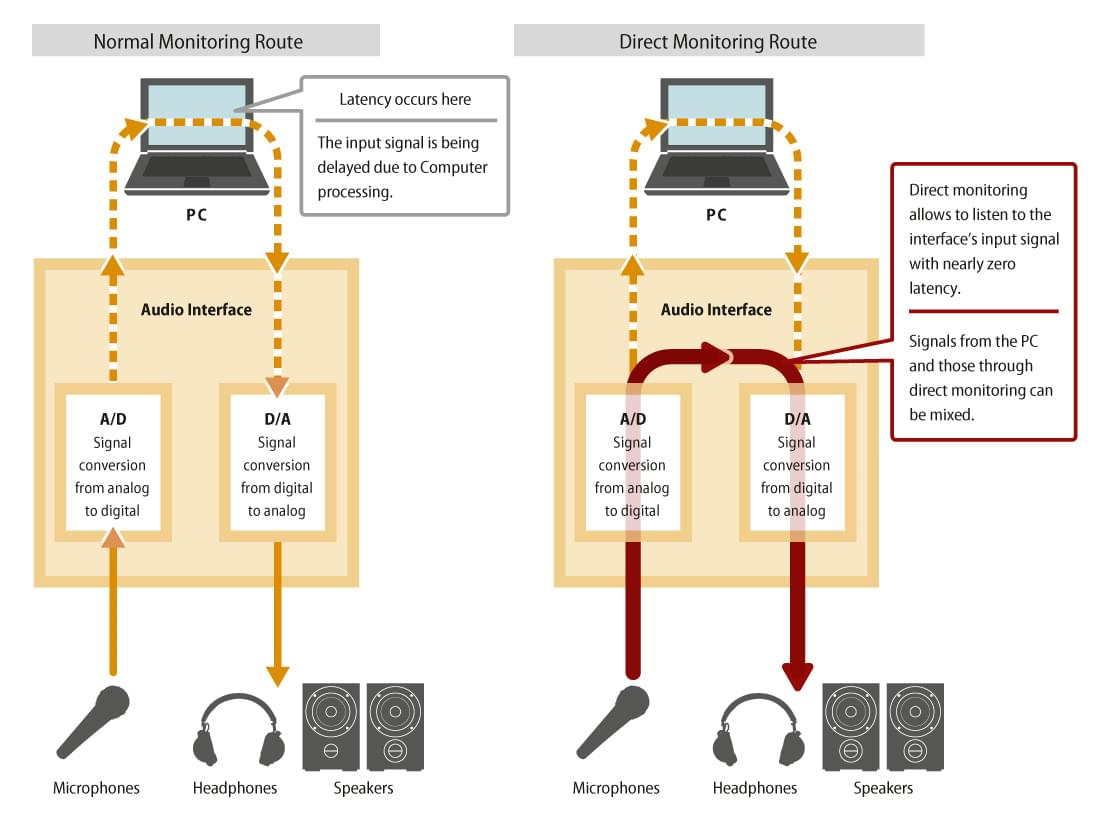

What is direct monitorting?
When recording audio with a computer, input signals are usually routed through the interface, the computer, and then back to the interface’s outputs. While signals pass the A/D and D/A converters in your interface without any noticeable delay, audio processing by the computer can lead to a clearly audible, disturbing time lag. As a result, you hear your voice or instrument later than the backing tracks played back on the computer and you are hardly able to perform in sync with the playback signal.

By using direct monitoring, input signals are not only sent to the computer but also directly to the outputs of your interface. This allows you to hear your input signal with virtually no delay (or latency) and always in sync with the playback material when recording or performing.

Tip: When recording the signal, mute the track you are recording to. Otherwise you would also hear your performance delayed from the recording track.

SPECIFICATIONS

Audio resolution
Sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth 24-bit
Analogue inputs
Mic inputs (balanced) XLR-3-31 equivalent
(1: GND, 2: HOT, 3: COLD)
  Input impedance 2.2 kΩ
  Rated input level –7 dBu (0.346 Vrms)
  Maximum input level +9 dBu (2.183 Vrms)
  Gain range 56 dB
Instrument inputs (unbalanced, MIC/LINE INST switch set to INST) 6.3-mm standard TS stereo jacks
(Tip: HOT, Sleeve: GND)
  Input impedance ≥1 MΩ
  Rated input level –6 dBV (0.501 Vrms)
Maximum input level +10 dBV (3.162 Vrms)
  Gain range 56 dB
Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE) 6.3-mm standard TRS stereo jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance 10 kΩ
  Rated input level +4 dBu (1.228 Vrms)
Maximum input level +20 dBu (7.75 Vrms)
  Gain range 56 dB
Analogue outputs

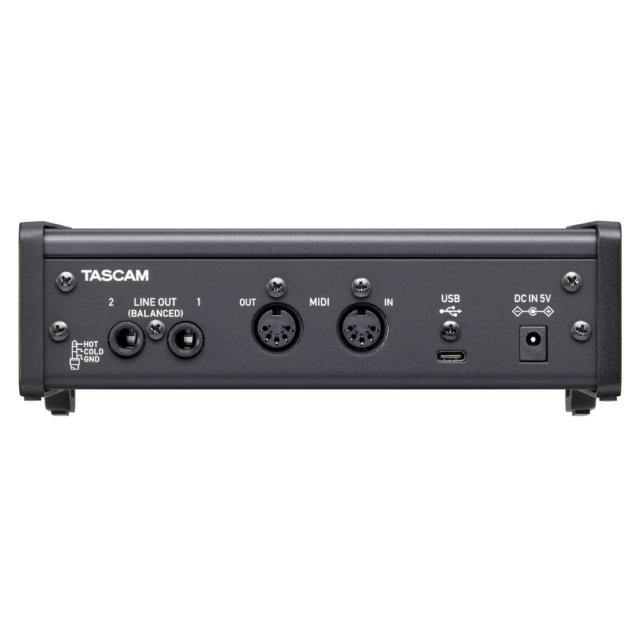

Line outputs (balanced) 6.3-mm standard TRS stereo jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Output impedance 210 Ω
  Rated output level +4 dBu (1.228 Vrms)
  Maximum output level +20 dBu (7.746 Vrms)
Headphone output (PHONES) 6.3-mm standard stereo jack
  Maximum output power 18 mW + 18 mW or higher (THD+N 0.1% or less, into 32 Ω load)
  Output impedance 66 Ω
  Load impedance 16–250 Ω
Control inputs/outputs
MIDI IN connector 5-pin DIN
  Format MIDI standard
MIDI OUT connector 5-pin DIN
  Format MIDI standard
USB 4-pin USB, Type C
  Transfer rate USB 2.0 High Speed (480 MBit/s)
Audio performance
Mic amp EIN (equivalent input noise) ≤−128 dBu
(150 Ω termination, GAIN knob at maximum)
Frequency response, MIC/LINE input
  44.1 kHz / 48 kHz 20 Hz – 20 kHz, +0 dB/−0.4 dB (JEITA)
  88.2 kHz / 96 kHz 20 Hz – 40 kHz, +0 dB/−0.4 dB (JEITA)
Frequency response, LINE output
  44.1 kHz / 48 kHz 20 Hz – 20 kHz, +0.2 dB/−0.1 dB (JEITA)
  88.2 kHz / 96 kHz 20 Hz – 40 kHz, +0.2 dB/−0.4 dB (JEITA)
S/N ratio 110 dB (MIC input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
108 dB (LINE input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
110 dB (LINE output, LINE OUT knob at maximum, 20-kHz SPCL LPF, A-weighted)
Distortion (THD+N) 0.0013 % (MIC IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0011 % (LINE IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0012 % (LINE OUT, 1 kHz sine wave, −4 dBFS input, LINE OUT knob at maximum, 20 kHz SPCL LPF)
Crosstalk attenuation ≥95 dB (MIC/LINE input to LINE output, 1 kHz sine wave, GAIN knob at minimum)
Power supply and other specifications
Power supply
When used with a computer USB bus power or dedicated AC adapter below
When used with an iOS device Dedicated AC adapter (Tascam PS-P520U, DC 5 V)
Power consumption 1.75 W
External dimensions (W × H × D, including protrusions) 186 mm × 65 mm × 160 mm
Weight 1.1 kg
Operating temperature range 5–35 °C
