Sony UWP-D12

Sony's new Hybrid Digital Processing UWP-D series of wireless microphones delivers the perfect solution for newsrooms, outdoor events and DSLR owners in a compact and professional design. The unique Hybrid Digital Processing UWP-D Series offers users digital audio processing in high audio quality combined with the reliability of analog FM modulation which improves the speed of response between transmitter and receiver.

The new series utilizes a unique wide frequency range, allowing users to choose from up to 2880 operating frequencies. The UWP-D series also offers a diversity receiver that provides an extremely stable signal transmitted from two independent parts of the receiver. The UWP-D series includes the UTX-M03"handpack", the UTX-P03"cube", the UTX-B03 belt-pack and the URX-P03compact receiver .

TheSony UTX-M03

is a directional microphone in the form of a "handka". The microphone has interchangeable capsules and offers a choice of over 40 different models from various manufacturers.

Main features:

• Crystal-controlled PLL synthesizer
• Dynamic
• Directional
• Max. 151dB SPL (with attenuator setting 21dB)
• Attenuator: from 0dB to 21dB (in 3dB steps)
• Frequency Response: Transmission 23Hz to 18kHz (typical); Capsule 70Hz to 18kHz
• Signal to Noise Ratio: 96dB
• Latency: 0.35ms
• Display: LCD
• Power: DC 3V (2x AA battery)
• Weight: 296g including batteries

TheSony UTX-P03

is a transmitter in the form of a "cube" connectable via XLR to any microphone. Features include a large display, automatic channel smoothing, line input and micro USB for power capability.

Main features:

• Crystal Controlled PLL Synthesizer
• Phantom Power: +48V
• Input Level: -60 dBV (attenuator level 0dB)
• Audio Attenuator: 0dB to 21dB (adjustable in 3dB steps)
• Frequency Response: 23Hz to 18kHz (typical)
• Signal to Noise Ratio: 96dB
• Latency: 0.35ms
• Display: LCD
• Power: DC 3V (2x AA battery)
• Weight: 197g (including batteries)

TheSony UTX-B03

is a belt-pack transmitter with a large display, automatic channel smoothing function, line input and micro USB power capability.

Main features:

• Crystal Controlled PLL Synthesizer
• Input level: -60 dBV (0dB attenuator level)
• Audio Attenuator: from 0dB to 21dB (adjustable in 3dB steps)
• Frequency Response: 23Hz to 18kHz (typical)
• Signal to Noise Ratio: 96dB
• Latency: 0.35ms
• Display: LCD
• Power: DC 3V (2x AA battery)
• Weight: 149g (including batteries)

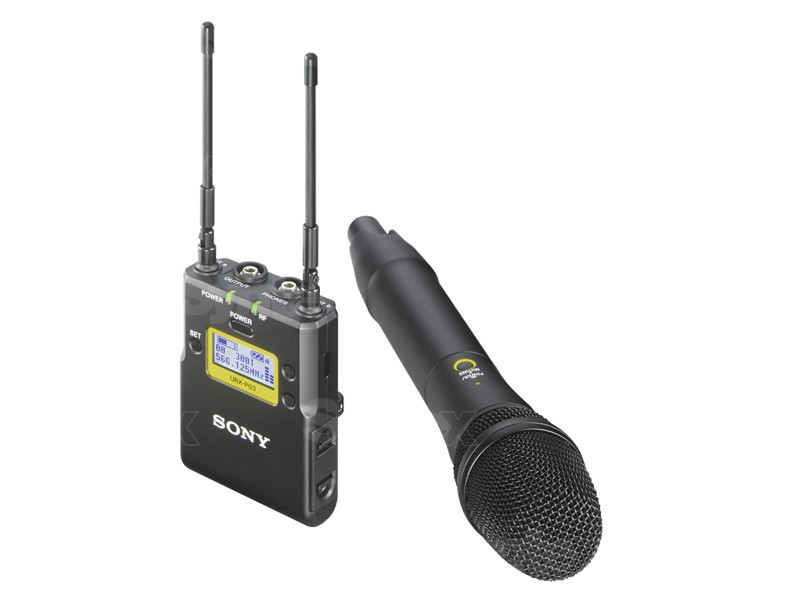

TheSony URX-P03

is a compact receiver for the UWP-D series transmitters. Features include a large display and small size for convenient mounting on any camera or DSLR camera, auto channel smoothing function, headphone output, USB connection for power and line input.

Main features:

• Crystal Controlled PLL Synthesizer
• Receive Type: Diversity
• Frequency response: 23Hz to 18kHz (typical)
• Signal to Noise Ratio: 96dB
• Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
• Latency: 0.35ms
• Connector: 3-pole mini jack, unbalanced
• Analog Output Level: -60dBV
• Analog range adjustment: -12dB to +12dB (adjustable in 3dB steps)
• Headphone output: ?3.5mm stereo mini jack
• Headphone output level: Max. 10mW (16ohm)
• Display
• Power: DC 3V (2x AA battery)
• Weight: 176g (including batteries)

TheSony ECM-V1BMP

is a lapel electret-condenser microphone with omnidirectional characteristics. It connects via a 3.5mm mini jack connector.

Main features:

• Frequency response: 40Hz to 20kHz
• Omnidirectional characteristic
• Type: Electret capacitor
• Sensitivity: -43.0 dB ±3.0 dB (1 kHz/Pa)
• Dynamic Range: 86dB
• Maximum SPL: 120dB
• Power: DC 5V
• Accessories: wind protection, clip
