Sony DWT-P01N - unpacked, full warranty

The Sony DWT-P01 is a wireless plug-on ("cube") transmitter. It operates in a bandwidth of 66MHz, from 566MHz to 607MHz and from 615MHz to 638MHz. Audio input can be selected with microphone or line input. The Sony DWT-P01 offers 1, 10 or 50mW RF output power. The transmitter operates for approximately 5 hours, using two AA batteries and setting the output…

More information

1 633.5 € with VAT 1 350 € without VAT
-+
Availability
on request

Show all accessories

Product description

Product description

The Sony DWT-P01 is a wireless plug-on ("cube") transmitter. It operates in a bandwidth of 66MHz, from 566MHz to 607MHz and from 615MHz to 638MHz. Audio input can be selected with microphone or line input. The Sony DWT-P01 offers 1, 10 or 50mW RF output power. The transmitter operates for approximately 5 hours, using two AA batteries and setting the output power to 10mW. The transmitter offers an input attenuator, an option

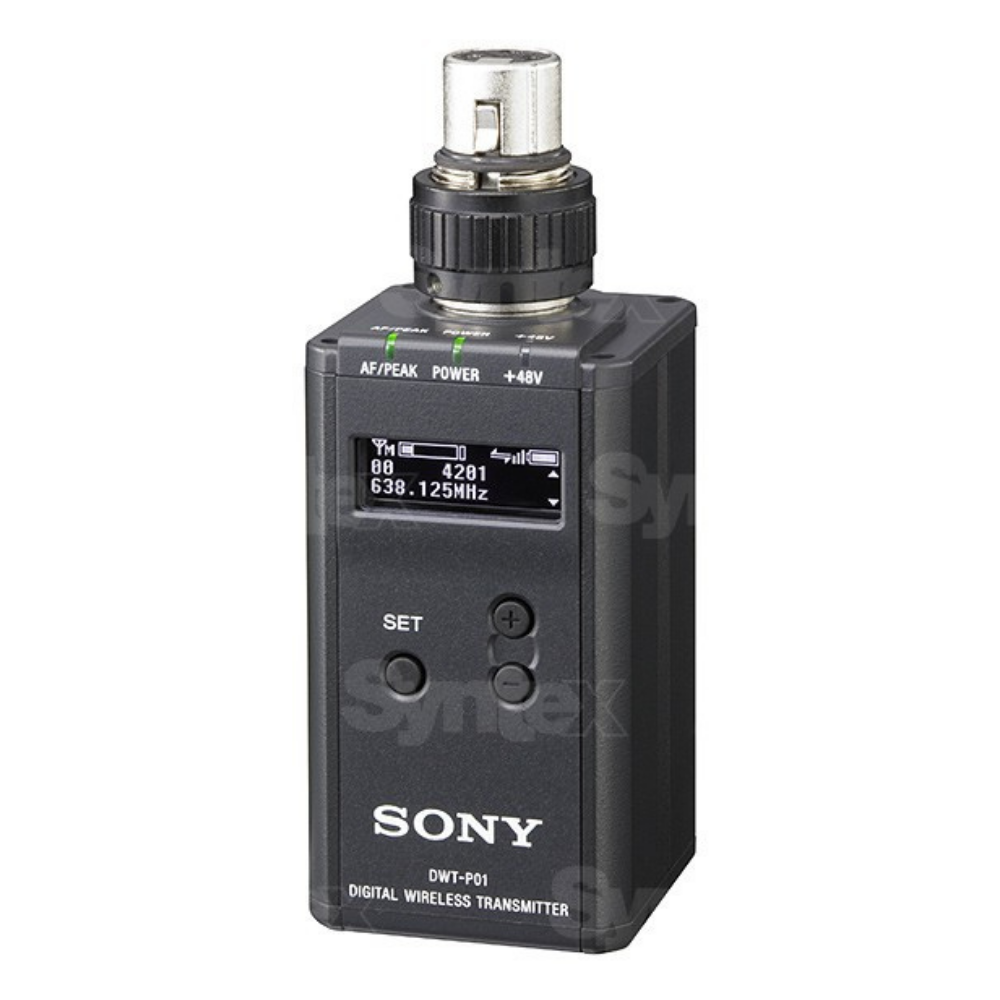

TheSony DWT-P01

is a wireless plug-on ("cube") transmitter. It operates in a bandwidth of 66MHz, from 566MHz to 607MHz and from 615MHz to 638MHz. Audio input can be selected with microphone or line input. The Sony DWT-P01 offers 1, 10 or 50mW RF output power. The transmitter operates for approximately 5 hours, using two AA batteries and setting the output power to 10mW. The transmitter offers an input attenuator, RF frequency selection, RF output power, LCF, phantom power, and the ability to remotely control the transmitter's power sleep mode from a wireless receiver.

Main features:

  • Audio input connector: XLR 3pin fem.
  • Audio input level: Max. -22dBu (with 0dB attenuator) Mic; +24dBu Line;
  • Transmission Frequency: 566 - 607MHz (TV channels 30 - 36) and 615 - 638MHz (TV channels 38 - 41)
  • Oscillator: crystal controlled PLL synthetizer
  • RF output power: 1mW/10mW/50mW
  • Compatibility: designed for DWX series wireless products on the same frequency
  • Battery Life: approx. 5 hours with output power set to 10mW and using an alkaline battery
  • Power: DC 3V (two AA batteries)
  • Weight: 255g (including batteries)
