RGBlink Pro PTZ Camera 20x (inc. Wall Mount and Mini Pro Switcher)

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

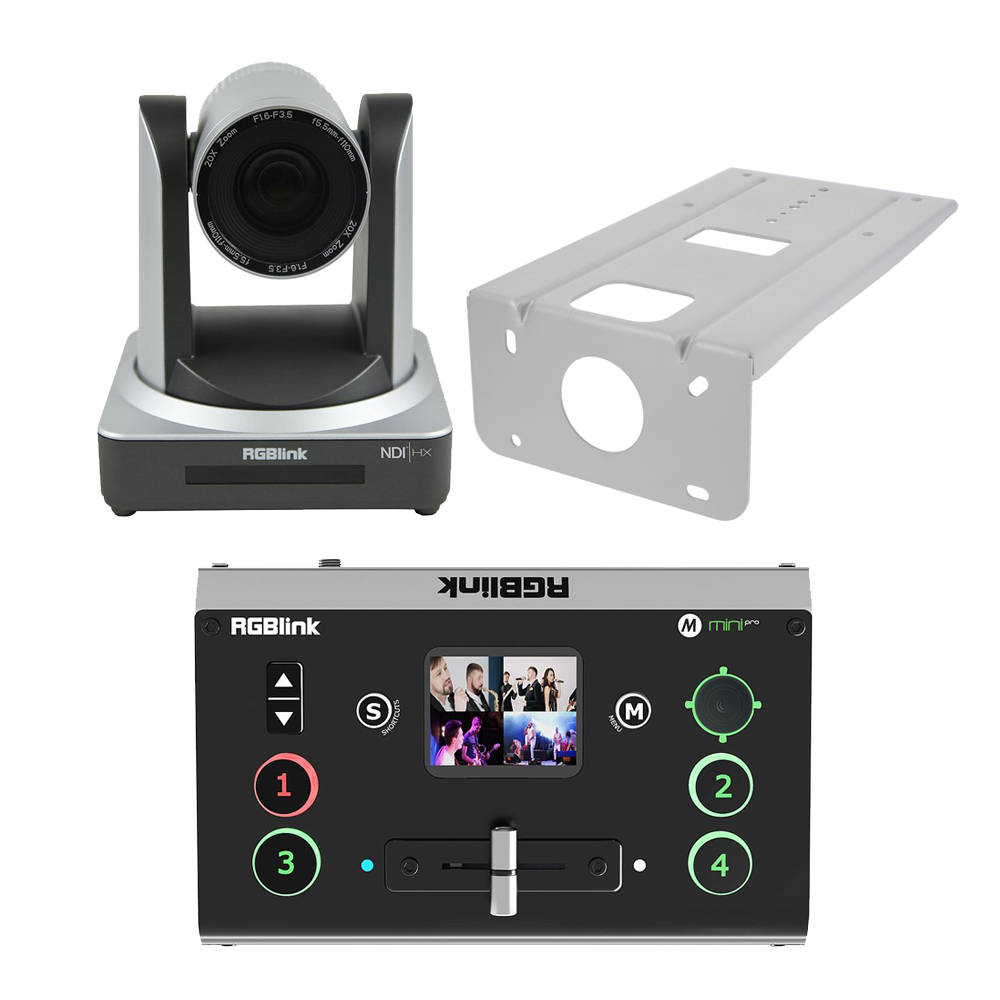

Set including 20x PTZ camera with wall mount and RGBlink Mini Pro HDMI mixer.

The RGBlink PTZ Camera 20x Optical Zoom is a professional broadcast PTZ camera ideal for smaller productions and for video conferencing. It features a 20x optical zoom, a high quality 1/2.8'' CMOS sensor and a fast, silent pan and tilt function. Live video output is via HDMI, 3G-SDI or IP streaming over LAN at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors and fast autofocus, as well as sharp distance shots thanks to the high zoom factor.

The RGBlink PTZ Camera Wall Mount Bracket is a professional wall mount bracket for all RGBLink PTZ cameras. The camera is mounted upright. The bracket has all the necessary holes and included are all the necessary screws.

The compact design, the basic layout with 4 buttons to switch and a t-bar for smooth transitions, as well as the 2 inch colour display remains identical. What is new is the joystick with 8 directions to control up to 8 IP PTZ cameras in one network and a zoom rocker. The shortcut button allows to save and retrieve preset angles of the PTZ cameras. The 2 inch display is a lot brighter now and has a touch screen function: icons enable an easy menu navigation and you can directly switch on the display! The new second USB output supports the recording of the program stream in three different quality levels in an H264 codec with USB storage devices with up to 2 TB.

The four HDMI inputs can process signals up to 4Kp60 which are then scaled to full-HD. The layers withing the picture-in-picture function can get adjusted arbitrarily regarding their size and they can be moved freely. This can be done via the software or via the joystick and the zoom rocker.

The improved audio mixer now allows the selection of various audio signals of the HDMI sources or the external audio input. You can set a delay of up to 160 ms to the 3,5 mm stereo audio input which supports line-in devices or an active as well as a passive microphone.

You can configure and control the Mini Pro via the free Xpose App using PC, Mac, Android, iPad or iPhone. This also applies to the remote control of all PTZ cameras in the network. Starting the chroma keying is a lot easier with the presets and the touch display.

All in all, the RGBlink Mini Pro convinces with its user-friendly concept including touch display, t-bar and joystick. The 4K inputs, the control via WLAN and the recording makes it to a future-proof investment.

PACKAGE CONTENT

  • 1 x RGBlink PTZ Camera with 20x optical zoom
  • 1 x IR-Remotcontrol (2 x AAA Batteries not included)
  • 1 x 230V Powersupply
  • 1 x RS-232 Cable
  • 1 x RGBlink Mini Pro
  • 1 x USB-Cable
  • 1 x USB-C Cable
  • 1 x PSU
  • 1 x Wallmount

SPECIFICATIONS

Optical Zoom:
20x f=5,5~110mm

Angle of view:
3.3° Tele / 54.7° Wide angle

Aperture:
F1.6 - F3.5

Connections:
3G-SDI and HDMI Output
Network 100 MBit
RS232 In and Out
RS485 In
Stereo Audio in 3,5mm

Output Signals:
HDMI/SDI SMPTE - 720p@25/29.97/30/50/60 | 1080i@50/59.94/60 | 1080p@25/30/50/59.94/60
Supports vertical and horizontal image flipping

Panning range:
+/- 170° Rotation
-30° bis +90° tilt
variable speed from 0.1° up to 80° per second
up to 254 memory locations for different viewing angles

Video Codecs:
H.264, H.265, Dual stream output

Audio Compression:
AAC, MP3, PMC up to 128 Kbps

Control Protocol:
VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps

Network Protocol:
RTSP, RTMP, ONVIF, GB/T28181

Supported Formats:
HDMI 1.3
SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

Input Voltage:
DC12V/1.5A

Max. Power:
12W

Weight:
1.4kg

Dimensions:
150mm x 150mm x 167.5mm

Wall-Mount:

Dimensions(LxWxH): 25 cm x 15 cm x 8 cm

Weight: 680 g

Color: Silver-grey

Material: Aluminium



Parameters

Parameters

Manufacturer: RGBlink
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
Zoom20x
Type of bayonetintegrated lens
OutputHDMI
Output3G SDI

Other parameters

Other featuresPTZ
