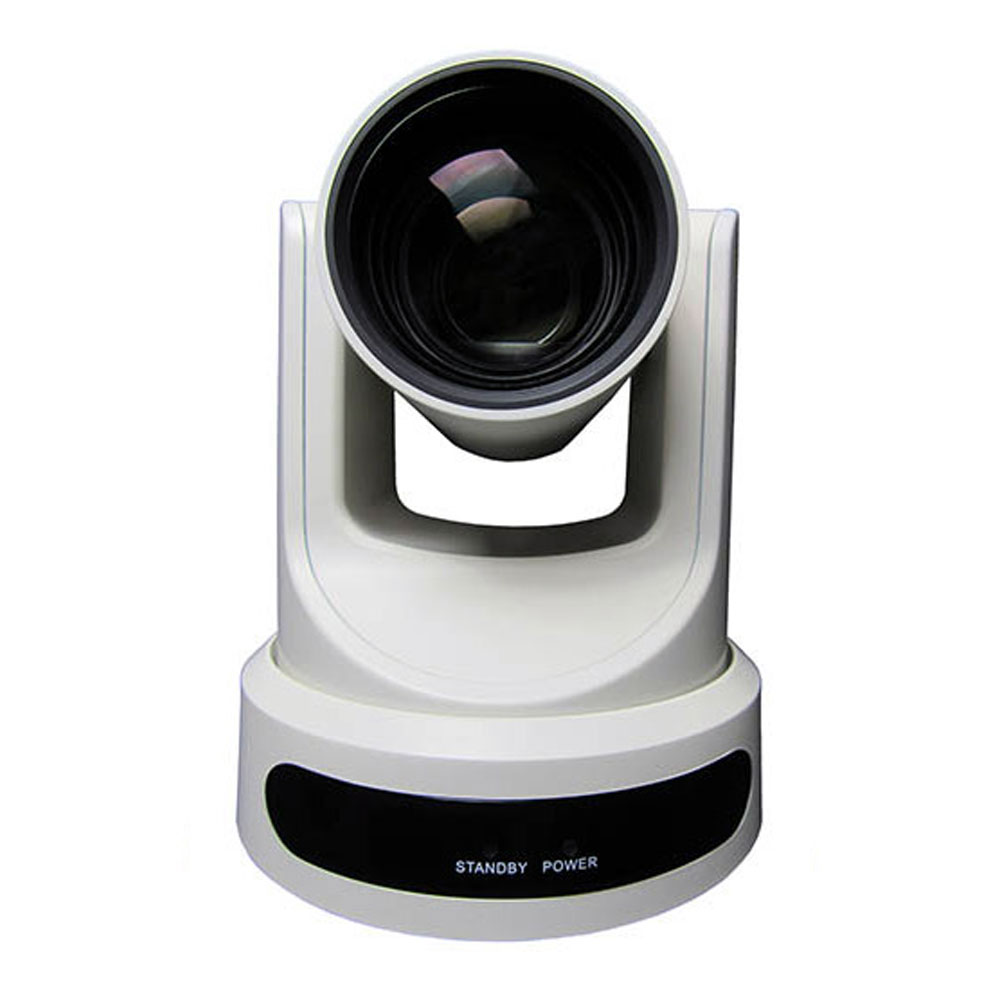

PTZOptics 30X-SDI-WH-G2 (WHITE)

PTZ camera with 30x optical zoom, 3G-SDI, HDMI and composite analog output. In addition, the camera features H.264/H.265 streaming and supports NDI protocol (NDI versions only).

More information

2 124.28 € with VAT 1 755.6 € without VAT
-+
Availability
on request
SKU:
PT30X-SDI-WH-G2-C
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

PTZ camera with 30x optical zoom, 3G-SDI, HDMI and composite analog output. In addition, the camera features H.264/H.265 streaming and supports NDI protocol (NDI versions only).

TheNDI Broadcast and Conference Camera, in gray, fromPTZOptics

, allows you to output up to a 1080p60 signal simultaneously via HDMI, SDI, and NDI or IP outputs (NDI and IP share the same RJ45 port). The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You won't be restricted to sources connected directly to a single system. The 12X-NDI comes with a NewTek NDI license, so you're set to go right out of the box. The camera also has a composite output that can be used on its own (without any of the other outputs at the same time) to deliver 576i/480i resolution.

The NDI has a 3.5 - 42.3mm lens providing a 12x zoom range which is ideal for smaller meeting rooms and classrooms. The NDI versions of the PTZOptics 12x cameras are ideal for streaming applications, houses of worship, sports streaming, live productions and events, and when cable runs might be an issue (when you'd rather run Ethernet cables instead of coax). The camera does well in low-light conditions owing to a fast f/1.8 - 2.8 lens aperture and minimum illumination requirement of only 0.5 lux. On top of this, built-in wide dynamic range and 2D and 3D noise reduction further enhance the conferencing experience. The camera is completely open-source, so developers can customize everything as they prefer using simple HTML.

The NDI can be powered over PoE or using the included power supply. It offers RS-232 and RS-485 serial control, an audio line-in for HDMI and NDI/IP streams, and 10 presets via the included IR remote control or 255 via serial or IP control.

Key Features

  • Simultaneous 1080p60 output via HDMI, SDI, and NDI/IP
  • Low-latency NDI video
  • Composite output (576i/480i)
  • 12x/20x/30x optical zoom
  • Minimum illumination requirement of only 0.5 lux, for better low-light performance
  • Built-in wide dynamic range and 2D/3D noise reduction
  • PoE support
  • RS-232 and RS-485 serial control
  • Audio line-in for HDMI and NDI/IP streams
  • 10 presets via the included IR remote control or 255 via serial or IP control
  • H.264, H.265, and MJPEG streaming over RJ45 port
  • Open-source design

PACKAGE CONTENT

  • PTZOptics 30x-SDI Gen2 Live Streaming Camera
  • RS-232 Cable
  • Power Supply
  • IR Remote Control
  • 2 x AAA Battery

SPECIFICATIONS

Video Outputs

Video Outputs (1) Video over Ethernet (1080p@60fps capable)
(1) 3G-SDI (up to 1080P@60fps capable)
(1) HDMI (up to 1080p@60fps capable)1
(1)CVBS2
USB 2.03
Connectors (1) 3G-SDI (BNC - 75 Ohm, Female)
(1) HDMI v1.3 Type A (Female)
(1) 10/100/1000 RJ-45
(1) Non-powered 3.5mm Female Input
Aspect Ratios 4:3, 16:9
Standard Resolutions PAL, PAL wide, NTSC, NTSC Wide
Output Resolution Range 480i-30 to 1080p60
Frame Rate Up to 60 fps
IP Streaming Video Bitrate Range: 32 - 20480 kbps
Maximum 1080p Frame Rate 60fps
Maximum 720p Frame Rate 120fps
Audio Bitrate Options: 96K, 129K, 256K
AAC Audio Encoding
Audio Sample Rate Options: 44.1K, 48K
Recommended maximum Cable Length for SDI (based on standards) 300 ft
Recommended maximum Cable Length for HDMI (based on standards) 45 ft
Recommended maximum Cable Length for Ethernet (based on standards) 328 ft

Camera and Lens

Video Sensor Panasonic 1/2.7" CMOS, 2.07 Megapixels
Scanning Mode Progressive
Frame Rates Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 (Beta)
CVBS Only (576i-30, 480i-30)
Focal Length 12x Optical, F3.5mm-42.3mm, F1.8-F2.8
20x Optical, F4.42mm-88.5mm, F1.8-F2.8
30x Optical, F4.42mm-132.6mm, F1.8-F2.8
Zoom Length 12X Optical, 20X Optical or 30X Optical
Digital Zoom 16x
Field of View 12X Lens - 72.5°
20X Lens - 60.7°
30X Lens - 60.7°
Min Lux 0.5 Lux at F1.8, AGC ON
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 12X Lens - 6.9° (tele) to 72.5° (wide)
20X Lens - 2.28° (tele) to 60.7° (wide)
30X Lens - 2.28° (tele) to 60.7° (wide)
Vertical Angle of View 12X Lens - 3.9° (tele) to 44.8° (wide)
20X Lens - 1.28° (tele) to 34.1° (wide)
30X Lens - 1.28° (tele) to 34.1° (wide)
Wide Dynamic Range Supported
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual
Digital Noise Reduction 2D & 3D Digital Noise Reduction
Audio Analog audio inputs Line In, 3.5mm (HDMI & IP Stream Only)

Networking

DHCP Supported
Static IP Supported
Multicast Supported
Dual Streaming Supported
720p120fps Supported
HTTP Port Number Default 80
RTSP Port Default 554
PTZ Port Default 5678
UDP Port Default 1259
Web Management Supported
Guest & Admin Logins

Camera Control

(1) 8-pin mini din In RS-232, RS-485, VISCA, PELCO-D/P
(1) 8-pin mini din Out (passthrough) Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line
(1) RS-485 2-pin phoenix port
Protocols: VISCA/Pelco-D/Pelco-P
Baud Rate 2400/4800/9600 bits
IP PTZOptics VISCA overIP4
Recommended maximum cable length for RS-232 90 feet (30 meters)
Recommended maximum cable length for RS-485 3,600 feet (1,200 meters)

Pan & Tilt Movement

Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
PTZ Presets 10 via IR (255 via Serial or IP)
255 presets via Serial or IP
Horizontal Pan Range ±170°
Vertical Pan Range -30° to +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
Preset Accuracy 0.1°

Electrical Index

Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC) or PoE 802.3af
Power over Ethernet Standard PoE supported

Physical Specifications

Dimension (in.) 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt)
Dimensions (mm) 142W x 164H x 169D (189H max w/ Tilt)
Box Dimensions 9" x 9" x 10" | 229mm x 254mm x 229mm
Camera Weight 3.05 lbs. (1.38 kg)
Boxed Weight 5.4 lbs. (2.45 kg)

Regulatory Compliance

FCC compliance: FCC 47 CFR Part 15 Subpart B - Class A:2011, ANSI C63.4-2014
CE compliance: EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017
  • 1. H.264, H.265, MJPEG Encoding; RTSP; RTMP; NDI|HX® upgradeable
  • 2. Not simultaneous with SDI or HDMI outputs; SD only (576i-30, 480i-30)
  • 3. Future Use (provides 5W of power)
  • 4. TCP (5678); UDP (1259)
  • *PLEASE NOTE: The 30x is unable to perform 1080P@60 over the IP Stream & SDI / HDMI simultaneously. This camera can output HDMI & SDI at 1080p60fps with a 1080P@30, or lower, IP stream or with an IP stream at 1080P@60 and the HDMI and SDI outputs set for 1080@30 or lower.
Parameters

Parameters

Manufacturer: PTZOptics
Category: PTZ

Main parameters

Camera Sensor size1/2,7"
ResolutionFull HD
ResolutionHDV (720p)
Streaming service typesYouTube Live
Streaming service typesFacebook Live
Streaming service typesUSTREAM
Streaming service typesWOWZA
Zoom30x
Internal RecordingNo
Type of bayonetintegrated lens
OutputHDMI
OutputSDI
OutputRTMP
Output3G SDI

Other parameters

VersionPTZ
FPSHD 60fps
Lens lens aperture1.8f
Min. focal length4.4mm
Max. focal length132.6mm
Colour depth8 bit
Colour depth10 bit
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Control protocolVISCA
