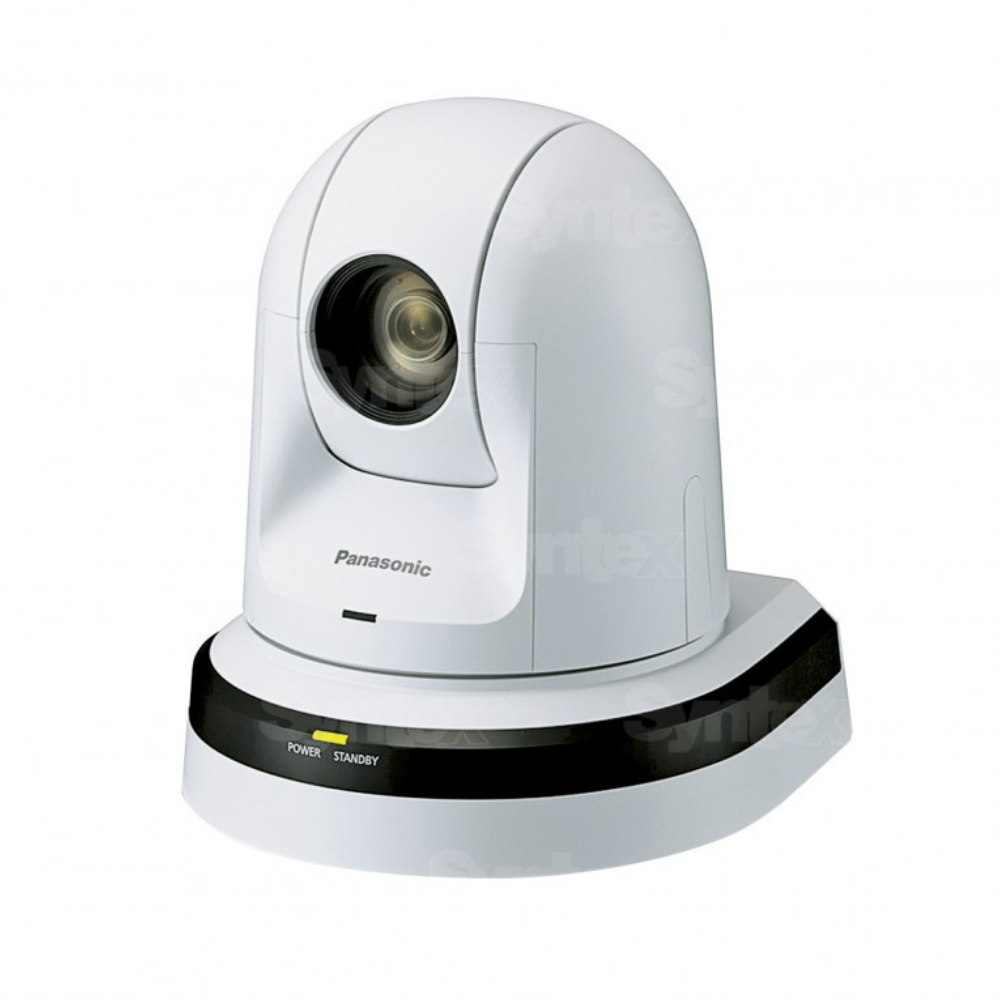

Panasonic AW-HE38H-W (White)

The AW-HE38 HD installation camera integrates a newly developed 1/2.3" FHD MOS sensor, powerful electronics, a high quality 22x zoom lens, PoE+ power supply and many other features for demanding applications in sports or cultural broadcasting, conferences, education, etc.

The AW-HE38 suits all applications that require superior image quality along with high-precision control of PTZ functions: e.g. for conferences, sports or music broadcasts, lectures, etc. With its high quality 22x transfocator, wide angle of view, smooth PTZ manoeuvres and excellent image quality, it will satisfy even the most demanding users amongst broadcasters or large screen projection (IMAG) creators. With preview and remote control over IP networks and PoE+ power supply, the HE38 also guarantees very easy installation and operation

In addition to a great lens, the AW-HE38 also offers a smart zoom function (up to 30x) and a digital extender (1.4x) for close-ups even in large auditoriums. The camera also features a very good signal-to-noise ratio of 54 dB, 1000 TV line resolution and colour correction for multi-camera matching. There is also a Dynamic Range Stretch function, a noise reduction function and a wide dynamic range video mode. For shooting with minimal ambient light, the camera offers Night Mode for recording monochrome HD video using an (optional) IR illuminator (850 nm), e.g. for shooting reality shows, research work, etc

The camera covers a large field of view (Pan ±175°, Tilt -30° - +90°) at up to 90°/second with noise max. NC35 and responds briskly to all overhead commands. Stores up to 100 settings for very flexible operation. In addition, it comes with ceiling mounting accessories (optional FEC-40WMK/FEC-40WMW mounting accessories can also be purchased to mount the camera on a wall), 1/4-20 thread for tripod mounting is standard

Key Features

• 1/2.3" MOS sensor
• 22x optical zoom
• HDMI video output
• USB/microSD recording
• Ready for upgrade to NDI|HX infrastructure
• IP connectivity including web interface and PoE+ -- for streaming power and camera control over a single cable
