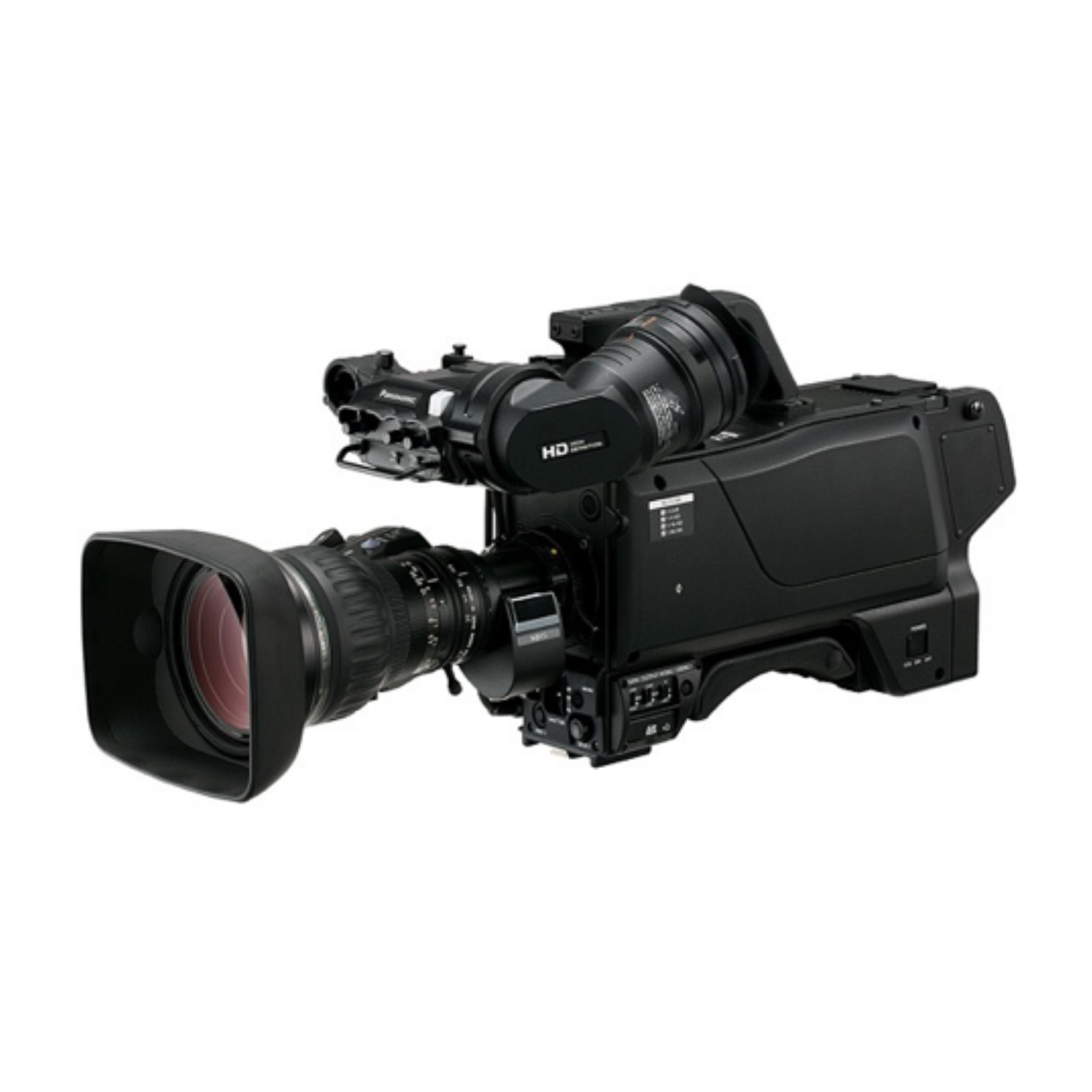

Panasonic AK-HC3800

The AK-HC3800 is an HD studio camera equipped with three high-sensitivity, high-quality 2/3-type 2.2-megapixel CCDs, a high-precision 16 bit A/D image processing circuit, and the latest generation 38-bit Digital Signal Processor (DSP). Compact and lightweight at only 3.7 kg, it offers chromatic aberration compensation (CAC), scene file settings, and a sophisticated implementation of Panasonic's exclusive dynamic range stretch (DRS).

Exceptional Image Quality
The HC3800 achieves a high sensitivity of F11 at 59.94Hz (2,000 lx) and an S/N ratio of 60dB. High definition formats can be switched to allow worldwide use at 1080/59.94i and 1080/50i. The newly-developed 16-bit A/D and 38-bit DSP utilize Spatial Offset Technology, and an advanced single transfer system to provide a high resolution picture (1,100 lines) with less moiré and a vertical smear level less than -130dB.

Dynamic Range Strectch
The HC3800's DRS function simultaneously reduces blocked detail in shadow areas and blown highlights in scenes where extremely bright and dark objects coexist, and its CAC function can compensate for chromatic aberration at the lens periphery. The low-profile head and low main body design are ergonomically designed for comfortable operation and provide an unobstructed view to the camera operator's right-hand side. The HC3800 is also equipped with a Film Rec Gamma function adapted from Panasonic's renowned VariCam models, and a Scan Reverse function for cinema lens adaptors.



Complete System
Adding the AK-HCU200 camera control unit (CCU), and the AK-HRP200G remote operation panel (ROP) to the HC3800 creates a low cost, high quality studio camera system that delivers world-class uncompressed video and system control via optical fiber transmission. The new AK-HVF70G compact and lightweight 7” LCD viewfinder completes the basic studio camera system.
