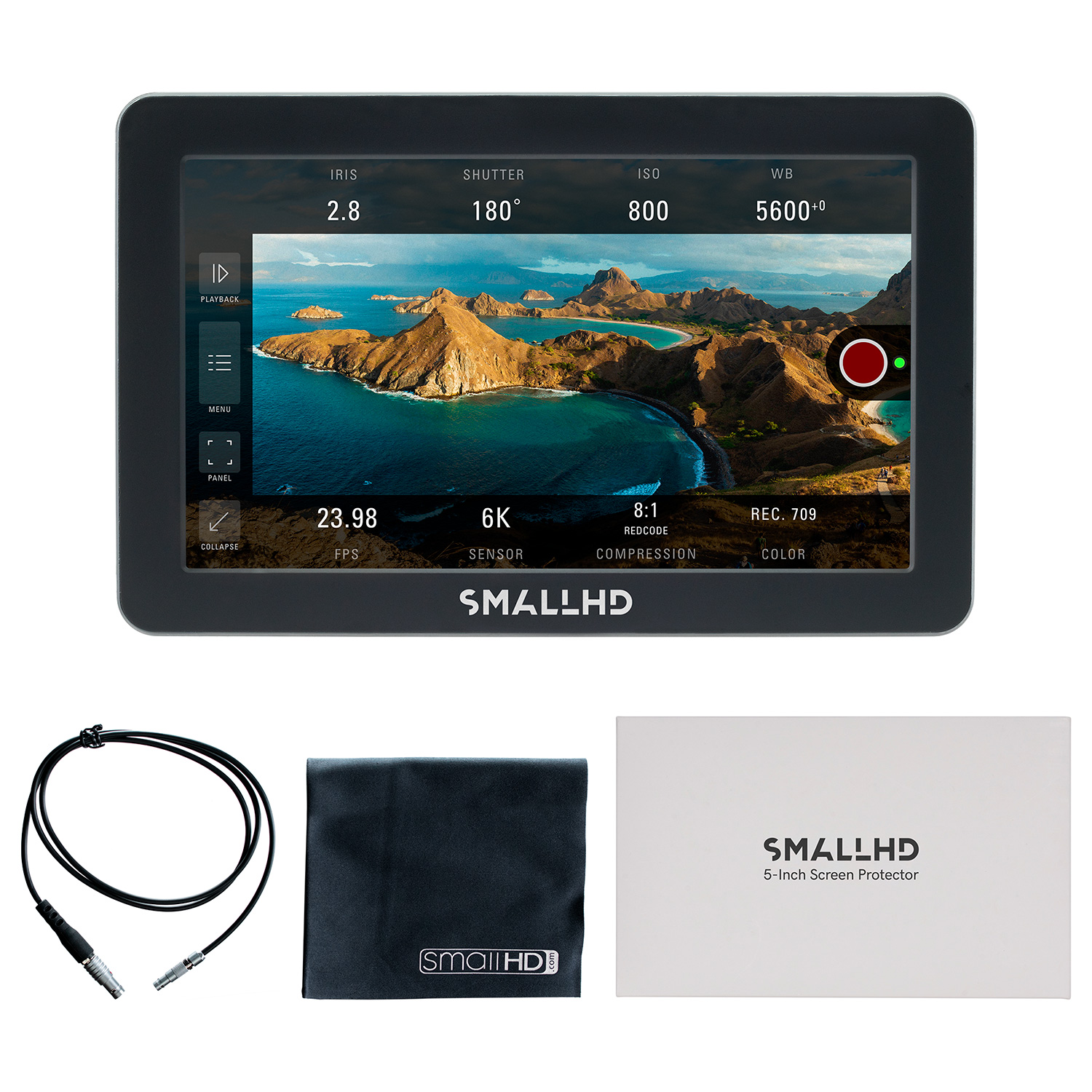

Focus Pro Kit for RED DSMC2

5" touchscreen camera monitor with high brightness (800 cd/m2) and the ability to control RED DSMC2 digital cinema cameras. Kit including cabling and software license for controlling RED DSMC2 cameras.

The Focus Pro camera monitor was designed for compact digital film cameras incl. RED KOMODO. Thanks to its turned aluminium alloy body, it is very durable while maintaining a low weight. Standard ¼"-20 mounting threads allow it to be easily integrated into a camera rig, e.g. with the optional Focus Pro Hinge Mount. An integrated L Series battery slot offers a more secure battery connection; a 2-pin power input connector provides power directly from the KOMODO camera.

The Focus Pro is an ideal complement to the RED KOMODO camera, which offers (optional) intuitive touch controls. The monitor can serve as the RCP unit of the camera - to which it is connected via a USB interface with a safety lock against accidental removal of the connector - including settings for recording formats, resolutions, frame rates, shutter speeds, aperture, autofocus, 3D LUT corrections, recording triggering, etc.

• 5" camera monitor with high brightness touchscreen
• IPS LCD panel
• Native resolution 1280x720, brightness 800 cd/m2
• SDI input
• Powered by L Series batteries
• SmallHD OS4 software: incl. user adjustable guides, Exposure Assist function, 3D LUT corrections, histogram/vector display/etc.
• RED KOMODO remote camera control (requires 9/2020 firmware update and separately purchased license)
