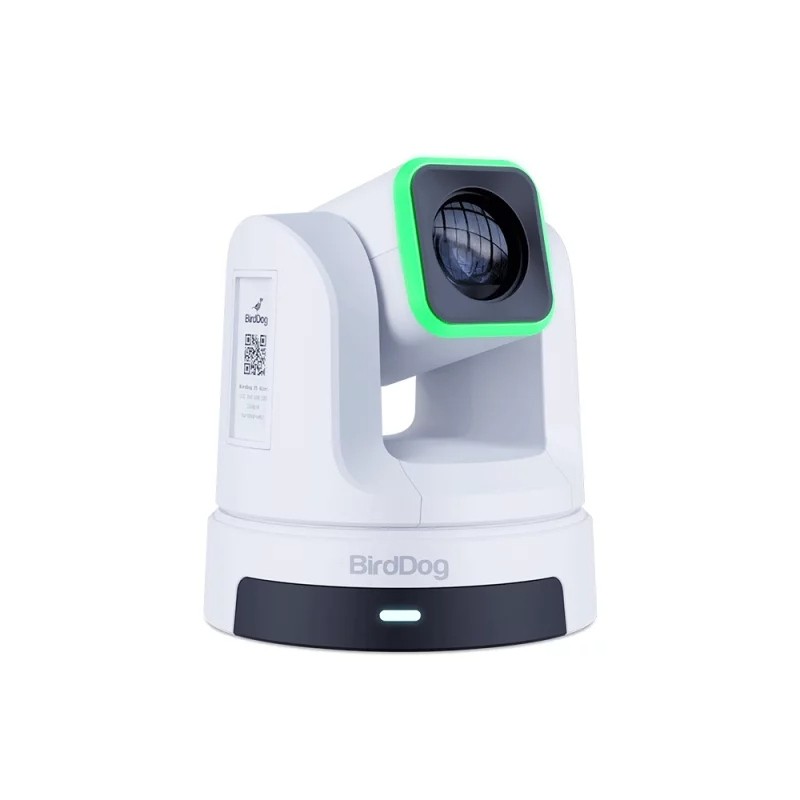

BirdDog X5 Ultra White. 2160p (4K UHD) Zoom Camera with 20x Optical Zoom
SKU: BD-BDX5UW
Take your production to the next level. Category defining image quality meets uncompromising connectivity and advanced mechanical design. Featuring NDI® | HX3 up to 4K60, 12G SDI connectivity, simultaneous NDI®| HX2/3 decoding, Halo Tally light, dual e-Ink displays and advanced AI auto framing, tracking and control.
3 419 € with VAT
2 825.62 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Take your production to the next level. Category defining image quality meets uncompromising connectivity and advanced mechanical design. Featuring NDI® | HX3 up to 4K60, 12G SDI connectivity, simultaneous NDI®| HX2/3 decoding, Halo Tally light, dual e-Ink displays and advanced AI auto framing, tracking and control.
Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.
Features
- NDI|HX3 UHD PTZ Camera
- 12G-SDI and HDMI 2.0 connections
- Available in Black and White
- 2x 2.93'' E-ink display for network addresses, customizable logos, etc.
- Built-in Halo Tally
- Supports AI Tracking and Framing
- Integrated NDI|HX Decoder
- Advanced mechanical drive
- USB-C UVC 1.1 for connection directly to Zoom, Teams, etc.
PACKAGE CONTENT
- 1x BirdDog X5 - Color: White
- 1x Remote control
- 1x DC 12 V power supply unit
- 1x USB cable
SPECIFICATIONS
Imaging
- Image Sensor: Sony 1/2.8'' CMOS • ULTRA HD
- Lens f=5.4mm - 104mm
- Optical Zoom 20x
- Video Formats: 2160p @ 60, 59.94, 50, 30, 29.97, 25fps
- 1080p @ 60, 59.94, 50, 30, 29.97, 25fps
- 720p @ 60, 59.94, 50fps
- Horizontal angle of view 56.6º (W) – 3º (T)
- Vertical angle of view 32.5º (W) – 1.7º (T)
- Diagonal angle of view 64.7º (W) – 3.5º (T)
- Aperture F1.6 ~ 3.6
- Focus: Auto, Manual
- Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
- Shutter Speed: 1/1 - 1/10000s
- Backlight Compensation: Yes
- Digital Noise Reduction: 3D Noise Reduction
- SNR: >50dB
- Effective Pixels: 8.46MP
- Filter Ring: Ø 49mm
- AI Tracking: Present
Mechanical
- Pan/Tilt Rotation ±170º, -30º ~ +90º
- Pan Control Speed 0.1 -200º/sec
- Tilt Control Speed 0.1 -200º/sec
- Preset Number: 128 Presets, Speed Adjustable
- Integrated Tally Light: Halo Style, RGB
- Pan/Tilt Drive System: Ultra-fine Drive
- Quietness: Max 28dB at full speed pan

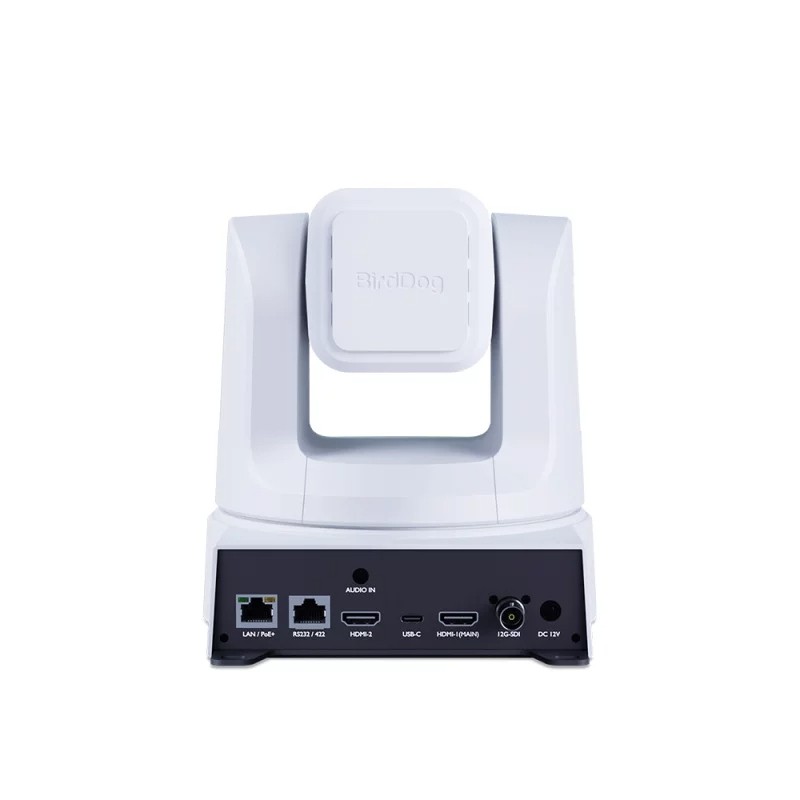

I/O Interface
- Video Output Interfaces: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
- Video Compression Formats: H.264, H.265
- Network Interfaces 1GbE adaptive Ethernet port; POE+ IEEE 802.3at
- Encoder Network Protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP
- Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
- Control Interfaces 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
- Digital Audio Embedded with Main & Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
General Parameters
- Environmental Operation: Internal
- Input Voltage: DC 12V, PoE+ IEEE802.3at
- Input Current: 2.0A (Max.)
- Power Consumption: 18W (Max.)
- Working Temperature: 0ºC ~ +40ºC
- Working Humidity: 20% ~ 80%
- Dimension (W*H*D): 185.7*171.9*200.90mm (before packing); 271*275*245mm (after packing)
- Net and Gross Weight: 2.31kg/3.76kg (Net/Gross weight)
