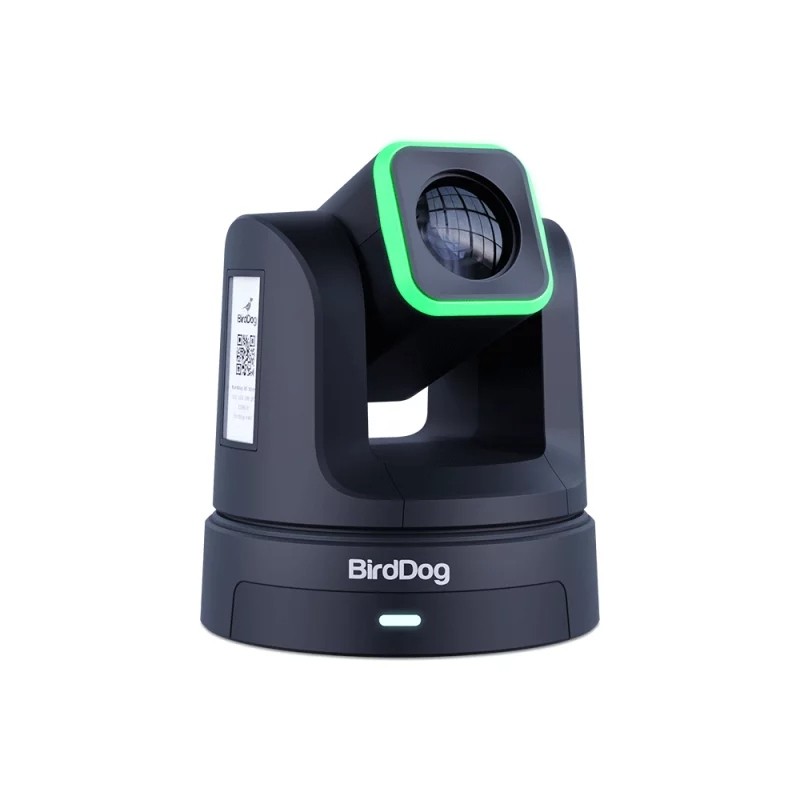

BirdDog X5 Ultra Black 2160p (4K UHD) Zoom Camera with 20x Optical Zoom

  • New
  • Free transport
SKU: BD-BDX5UB
This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Take your production to the next level. Top-notch image quality meets uncompromising connectivity and advanced mechanical design. Equipped with NDI® | HX3 technology up to 4K60, 12G SDI connectivity, simultaneous NDI®| HX2/3 decoding, Halo Tally indicator, dual e-Ink displays, and advanced AI-powered auto-framing, tracking, and control.

Imagine next-generation robotic control with ultra-smooth and precise movements thanks to an advanced motor drive that exceeds all previous standards. Movements in the air are a breeze, and acceleration/deceleration looks natural and smooth. With BirdDog's signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding, all video connectors including 12G-SDI, and dual e-ink displays, branding and maintenance are a breeze, all complemented by an amazing Sony 4K60 image sensor that delivers the highest possible NDI® performance. | HX3. X5 Ultra. In every way.

Features

  • NDI|HX3 UHD PTZ Camera
  • 12G-SDI and HDMI 2.0 connectivity
  • Available in black and white
  • 2x 2.93'' E-ink display for network addresses, customizable logos, etc.
  • Built-in Halo Tally
  • Supports AI tracking and framing
  • Integrated NDI|HX decoder
  • Advanced mechanical drive
  • USB-C UVC 1.1 for direct connection to Zoom, Teams, etc.

PACKAGE CONTENT

  • 1x BirdDog X5 – color: black
  • 1x Remote control
  • 1x DC 12 V power supply
  • 1x USB cable

SPECIFICATIONS

Display

  • Image sensor: Sony 1/2.8'' CMOS • ULTRA HD
  • Lens f=5.4 mm – 104 mm
  • 20x optical zoom
  • Video formats: 2160p @ 60, 59.94, 50, 30, 29.97, 25 fps
  • 1080p @ 60, 59.94, 50, 30, 29.97, 25 frames per second
  • 720p @ 60, 59.94, 50 frames per second
  • Horizontal viewing angle 56.6º (W) – 3º (T)
  • Vertical viewing angle 32.5º (W) – 1.7º (T)
  • Diagonal angle of view 64.7º (W) – 3.5º (T)
  • Aperture F1.6 ~ 3.6
  • Focus: auto, manual
  • Exposure: automatic, shutter priority, aperture priority, manual, BLC, WDR
  • Shutter speed: 1/1 - 1/10000 s
  • Backlight compensation: Yes
  • Digital noise reduction: 3D noise reduction
  • SNR: >50 dB
  • Effective number of pixels: 8.46 MP
  • Filter ring: Ø 49 mm
  • AI tracking: Yes

Mechanical

  • Rotation/tilt ±170º, -30º ~ +90º
  • Rotation speed 0.1–200º/s
  • Tilt control speed 0.1–200º/s
  • Number of presets: 128 presets, adjustable speed
  • Integrated indicator light: Halo type, RGB
  • Rotation/tilt drive system: ultra-smooth drive
  • Noise level: max. 28 dB at full rotation speed

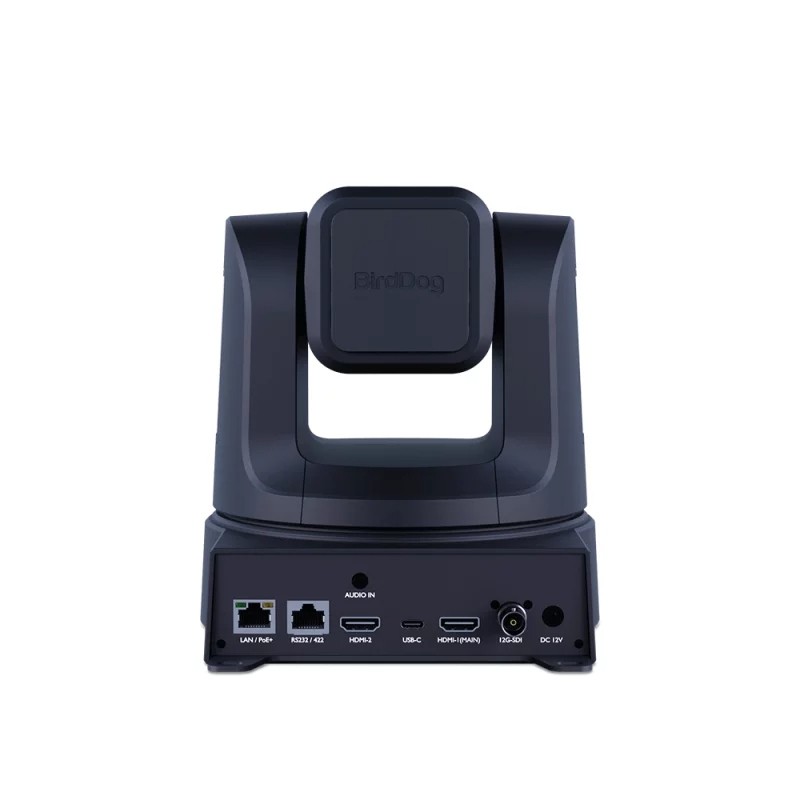

I/O interface

  • Video output interface: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb network
  • Video compression formats: H.264, H.265
  • Network interfaces Adaptive 1GbE Ethernet port; POE+ IEEE 802.3at
  • Encoder network protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP
  • Control protocol VISCA Transmission speed: 38400/9600/4800/2400, VISCA-IP, NDI®
  • Control interface 1GbE Ethernet, RS232 (input and output), RS422, TYPE-C(UVC1.1)
  • Digital audio built into primary and secondary HDMI, 12G-SDI, network video, USB (UVC)

General parameters

  • Operating environment: indoor
  • Input voltage: DC 12 V, PoE+ IEEE802.3at
  • Input current: 2.0 A (max.)
  • Power consumption: 18 W (max.)
  • Operating temperature: 0 °C ~ +40 °C
  • Operating humidity: 20% ~ 80%
  • Dimensions (W*H*D): 185.7*171.9*200.90 mm (before packaging); 271*275*245 mm (after packaging)
  • Net and gross weight: 2.31 kg/3.76 kg (net/gross weight)
Parameters

Parameters

Manufacturer: BirdDog
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
ResolutionUHD
Zoom20x

Other parameters

VersionPTZ
