Product description

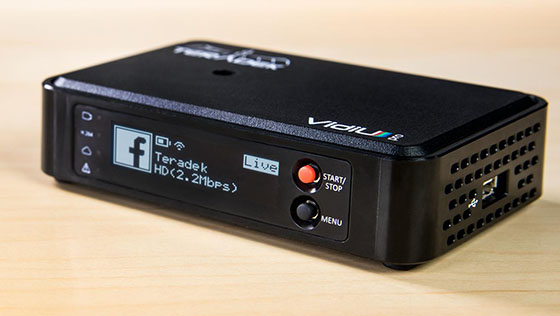

VidiU Go is a new device for live streaming HEVC/H.264 videos using aggregated mobile connections. Based on the proven Cube HEVC platform, the VidiU Go streams at up to 1080p60 quality (depending on the target platform) to Facebook, YouTube, Twitch and more!
- Ability to use HEVC és H.264 compression
- Supports up to two powerful 3G / 4G / LTE modems Teradek Node
- 3G-SDI és HDMI csatlakozó, USB-C csatlakozó
- Streams to all video platforms (Facebook, YouTube, Periscope stb.)
- Streams simultaneously to multiple platforms using Core and Sharelink technologies
PACKAGE CONTENT
Teradek VidiU Go Deluxe Kit (Europe/Asia)
Teradek VidiU Node 4G LTE (Europe/Asia/Pacific)
2 x Sim Card Adapters
2 x 2 dBi Wi-Fi 2.4/5.8 GHz Antennas
Go Core Credit Insert
VidiU Go
Ethernet Cable
18" HDMI Male Type-A Cable
10" BNC to BNC Cable
Medium Case
PSU 61W USB Type-C Power Adapter
4 x Penta-Band Antennas with Straight SMA Mounts
Hot Shoe Adapter
SPECIFICATIONS
Frequency Range: 2.4 to 5 GHz
Wi-Fi 2.4/5 GHz
Antenna Ports 2 x RP-SMA
Video Connectors 1 x HDMI Input, 1 x BNC (3G-SDI) Input
Audio Connectors 1 x 1/8" / 3.5 mm TRS
Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Output
Other I/O 1 x RJ45 10/100 Ethernet, 2 x USB (Unspecified Type)
HDCP Support None
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Video Format HDMI
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 50, 59.94, 60 fps
720p at 50, 59.94, 60 fps
576i at 50 fps
576p at 50 fps
480i at 59.94, 60 fps
480p at 59.94, 60 fps
SDI/BNC
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 50, 59.94, 60 fps
720p at 50, 59.94, 60 fps
576i at 50 fps
480i at 59.94, 60 fps
Audio Format 2-Channel AAC Audio
Format Conversion Scaling, Deinterlacing
Panel Type OLED
Built-In Battery 5000 mAh
Power Connector 1 x USB Type-C (3.7 VDC) Input/Output
Power Consumption Device: (6.5 W)
Mounting 1 x 1/4"-20 Female
Memory Card Slot Not Specified by Manufacturer
Materials ABS, Aluminum
Dimensions 4.9 x 3.1 x 1.3" / 12.45 x 7.87 x 3.3 cm
Weight
13.62 oz / 386 g
