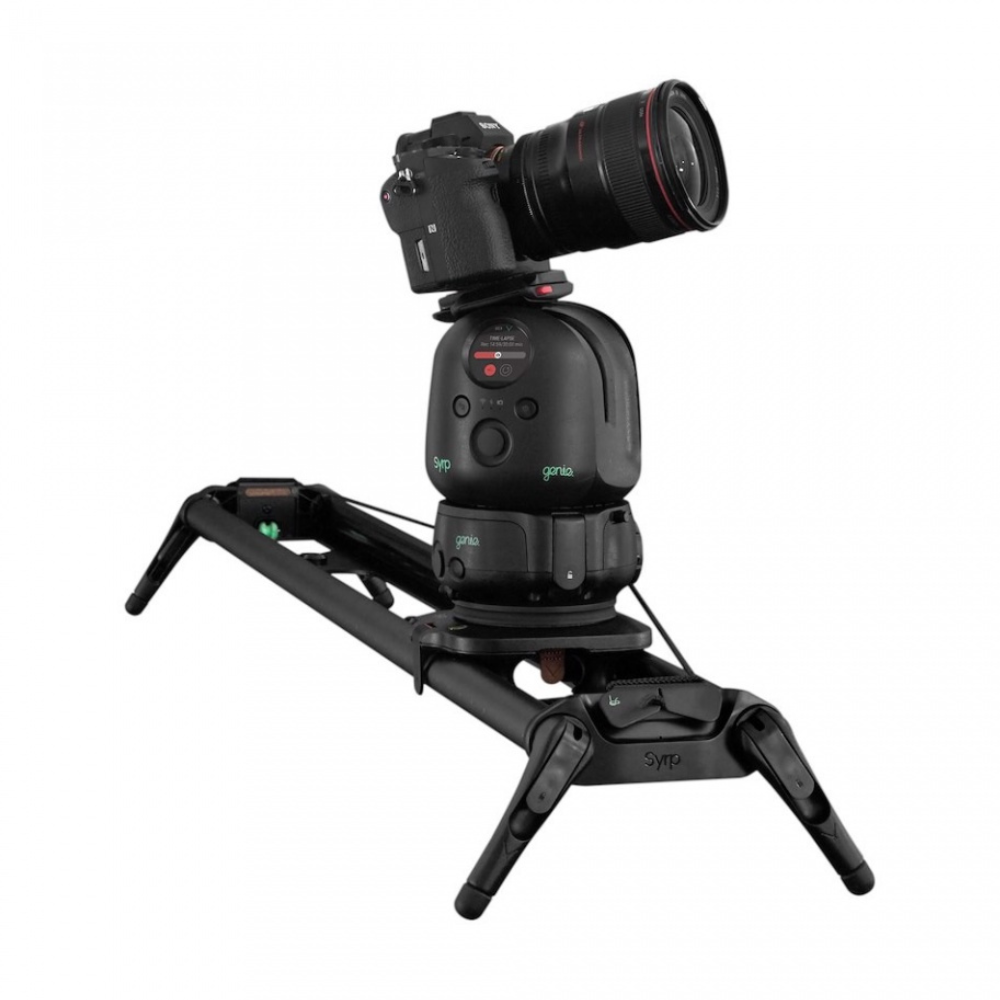

Syrp Genie II 3-Axis - Epic Kit

Genie II 3-Axis - Epic Kit is made up of two independent motion controllers; Genie II Linear and Genie II Pan Tilt. By combining both with the Magic Carpet slider you have a powerful and portable 3-Axis motion control tool.

More information

3 258.7 € with VAT 2 693.14 € without VAT
-+
Availability
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Genie II 3-Axis - Epic Kit is made up of two independent motion controllers; Genie II Linear and Genie II Pan Tilt. By combining both with the Magic Carpet slider you have a powerful and portable 3-Axis motion control tool.

Setup is hassle-free with the Pan Tilt and Linear syncing via Bluetooth keeping cables to an absolute minimum. They also take the same Li-ion battery making power management a breeze. Simply attach the Linear to the Magic Carpet slider. Then click in the Pan Tilt straight on top via the quick release system and your 3-Axis kit is set up and ready for almost any filming situation.

Connect wirelessly to the Genie II 3-Axis - Epic Kit with the Manfrotto Genie 2 App and program complex movements using the built-in keyframe editor to change the speed and timing of all axes independently.

Packed with the latest technology including Bluetooth, WiFi and USB-C, enables many options for future feature releases.

  • Full 3-axis motion control
  • Keyframe setup for Time-lapse and Video
  • Wireless iOS and Android App control via Bluetooth
  • Max payload 5kgs/11lbs (up to 60° Tilt)
  • Battery life: 12hrs time-lapse or 8hrs video

PACKAGE CONTENT

  • 1 x Genie II Linear
  • 1x Genie II Linear Capstan
  • 1 x Genie Rope 3m
  • 2 x Slider Mounts & Velcro Straps
  • 1 x Quick Release Plate 90mm
  • 1 x Quick Release 1/4"-20 Camera Screw Square
  • 1 x Quick Release 3/8"-16 Camera Screw Square
  • 1 x Genie II Pan Tilt
  • 1 x Quick Release Plate 65mm
  • 1 x 1/4"-20 Camera Screw
  • 1 x 3/8"-16 Camera Screw
  • 2 x USB Type-C Charger
  • 2 x USB-C Charger Cable
  • 2 x AU/NZ Plug
  • 2 x USA Plug
  • 2 x EURO Plug
  • 2 x UK Plug
  • 2 x USB-C to USB-A Female Cable
  • 2 x Camera Screw Thread Adapter 3/8"-16 to 1/4"-20
  • 1 x Genie II Linear Setup Guide
  • 1 x Genie II Pan Tilt Setup Guide
  • 2 x Lens Cloth
  • 1 x Magic Carpet Medium Track (100cm)
  • 1 x Magic Carpet Carriage
  • 2 x Magic Carpet End Caps
  • 1 x Magic Carpet Reversible Screw
  • 1 x Counter Weight Rope 3m
  • 1 x Magic Carpet End Caps & Carriage Setup Guide

SPECIFICATIONS

  • Weight: 5.569 kg
  • Interface: 2.5mm Shutter Control Port, Bluetooth 4.2 Low Energy, USB-C Port, Wifi 2.4GHz, Colour LCD Display
  • Dimensions: 107 x 13.2 x 23.7 cm
  • Max Speed Panning: 25 °/s
  • Max Speed Linear:_ 110 mm/s
  • Max Speed Tilting: 11.25 °/s
  • Minimum Resolution Linear: 0.01 mm
  • Minimum Resolution Tilting: 0.01 °
  • Tripod Mounting: Female 3/8"-16 thread, Female 1/4"-20 thread
  • Camera Mounting Screw: 1/4"-20 Male, 3/8"-16 Male
  • Payload Tracking: 5 kg
  • Payload Vertical: 2.5 kg
  • Payload Vertical Counter Weighted: 4 kg
  • Payload Panning: 6 kg
  • Payload Tilting At 60 Deg: 6 kg
  • Payload Tilting At 180 Deg: 3 kg
  • Battery Life Time-Lapse: 12 hrs
  • Battery Life Video: 8 hrs
  • Charging Time: 3 hours
  • Powered By (Batteries): Li-Ion Rechargeable
  • Charging Mode: USB-C 5V DC, min 1Amp
Parameters

Parameters

Manufacturer: Syrp
Category: Slider sets

Main parameters

Tirpod Payload6kg
