SmallRig L Bracket for Panasonic S5 Camera 2984

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SmallRig L Bracket for Panasonic S5 Camera 2984

Key Features
1. Modular Designed Arca-Type L Bracket for Panasonic S5
2. The Side Plate Can Be Moved Forward to Have 180° LCD Screen
3. Extendable Side Plate for Tethering or Cable Release
4. 1/4" -20 Accessory Threads & Carry Strap Slot
5. Built-in Flat-Head Screwdriver.

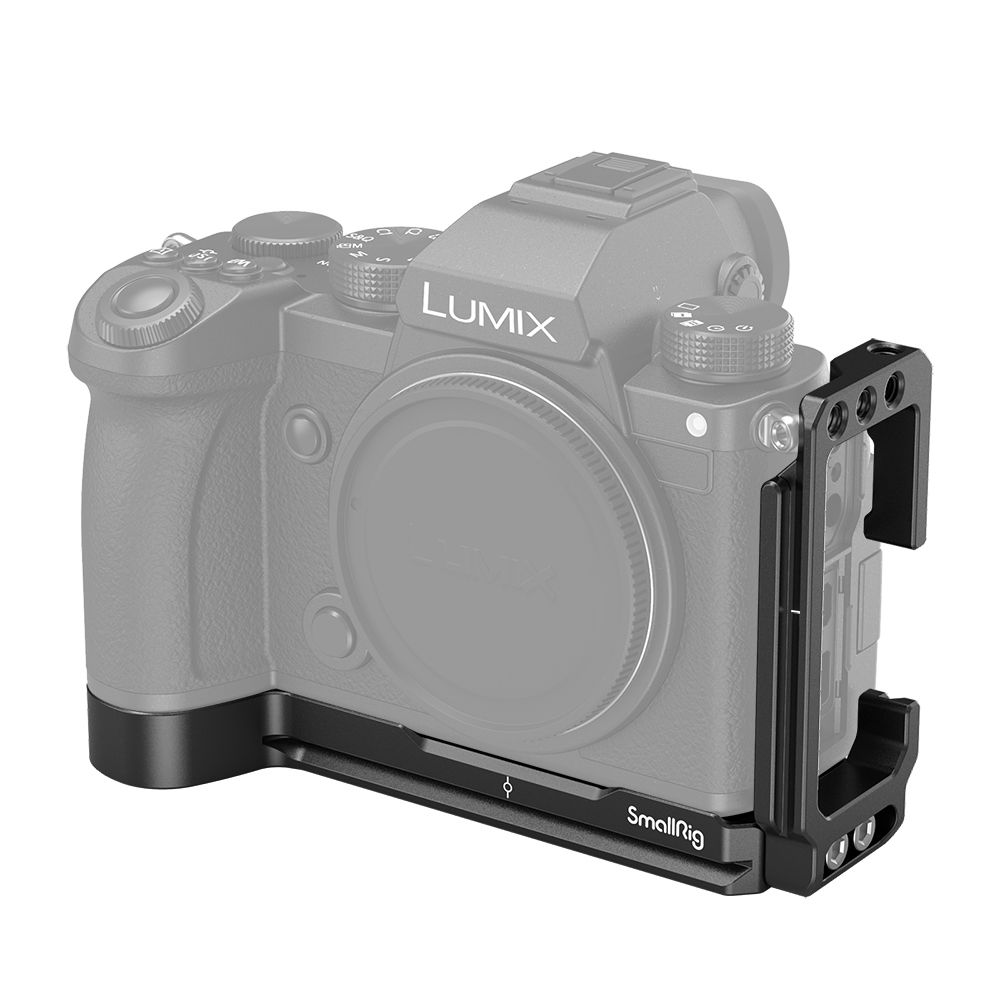

SmallRig L Bracket for Panasonic S5 Camera

2984 is modular designed with anti-twist flanges to keep the camera from twisting and provide a comfortable grip. Both the base plate and side plate are Arca-type compatible dovetails enable the camera to mount in a vertical or horizontal position. It secures to the bottom of the camera with a 1/4 screw and features a rubber pad to prevent your camera from scratching. Each axis features a sensor centering line to align the camera on a tripod head. The side plate can be moved forward to have 180° LCD screen and can be extended to the left if more room is needed for tethering or cable release. Additionally, the L plate features multiple 1/4"-20 threaded holes on the side and bottom for accessory attachment such as Cold Shoe BUC2736 and Cable Clamp 2259. A flat head screwdriver is included to secure the camera screw and stores on the bottom of the L bracket.


Designer: Clara Oswald


Compatibility
Panasonic S5

PACKAGE CONTENT

Package Includes
1 x L Plate
1 x Allen Wrench

SPECIFICATIONS


Product Dimensions: 143.5 x 89.7 x 64.8mm
Package Dimensions: 160 x 120 x 68mm
Net Weight: 138g±5g
Package Weight: 219g±5g
Material(s): Aluminum Alloy

Parameters

Parameters

Manufacturer: SmallRig
Category: Cages
